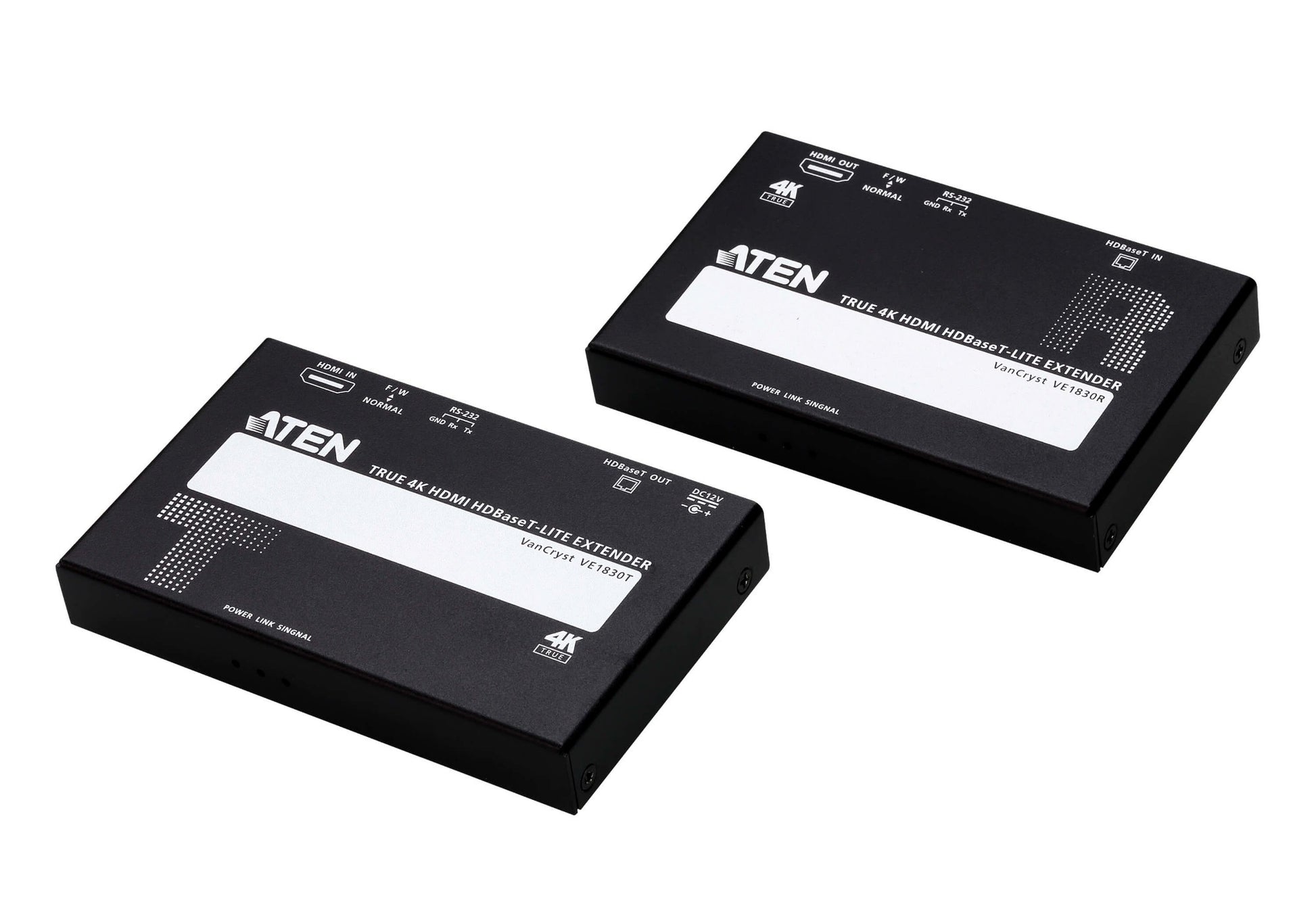

ATEN VE1830-AT-U | VE1830 True 4K HDMI HDBaseT-Lite Extender Kit, 40m 4K, IR/RS-232, PoC

ATEN VE1830-AT-U | VE1830 True 4K HDMI HDBaseT-Lite Extender Kit, 40m 4K, IR/RS-232, PoC

SKU:VE1830-AT-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Compact HDMI extender kit that delivers True 4K (4096 x 2160 @ 60 Hz, 4:4:4) video over a single Cat cable using HDBaseT-Lite.. Ideal for meeting rooms, education and digital signage where long-reach, zero-compression HDMI and device control are required. Backed by the ATEN manufacturer warranty, the VE1830 supports bi-directional IR and RS-232, HDCP 2.2 and EDID pass-through, plus Power over Cable to simplify installs by powering either the TX or RX.. Need it fast?. iptrading.com.au delivers across Australia shop now. Need it fast? iptrading.com.au delivers across Australia shop now.

Features

- True 4K 60 Hz 4:4:4 video extension over a single Cat cable
- Long-reach delivery: 40 m at 4K and 70 m at 1080p
- Single-cable Power over Cable (PoC) simplifies installation
- Bi-directional IR and RS-232 for end-to-end device control
- HDCP 2.2 and EDID pass-through ensure seamless compatibility
- Durable metal enclosure for reliable, professional AV installs

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What resolution and distance does the VE1830 support?
A: It delivers up to True 4K 4096 x 2160 at 60 Hz (4:4:4) to 40 m, and up to 70 m at 1080p over a single Cat cable.

Q: Does the extender support device control?
A: Yes. It provides bi-directional IR and RS-232 pass-through for remote control of source or display equipment.

Q: Can I power only one side of the link?
A: Yes. The VE1830 supports Power over Cable (PoC), allowing a single power supply at either the transmitter or receiver.

Q: Is it compatible with protected 4K content?
A: Yes. It is HDCP 2.2 compliant and supports EDID pass-through to maintain source-display compatibility.

Q: What cabling should I use for best performance?
A: Use high-quality solid copper Cat 6a (or better) for the HDBaseT run and HDMI 2.0-rated cables for source/display connections.

Q: Can I buy the ATEN VE1830 in Australia from IP Trading?
A: Yes. IP Trading is an Australian supplierorder online at iptrading.com.au for fast nationwide delivery.

Technical Specifications

- Model: VE1830 (Transmitter + Receiver kit)
- Extension technology: HDBaseT-Lite over single Cat cable
- Video interface: HDMI Type A (female)
- Supported resolution: up to True 4K 4096 x 2160 @ 60 Hz (4:4:4)
- HDCP compliance: HDCP 2.2
- Max distance: up to 40 m at 4K; up to 70 m at 1080p
- Control pass-through: bi-directional IR (3.5 mm) and RS-232
- EDID pass-through for source-display compatibility
- Power: Power over Cable (PoC) supported (power one end only)
- Recommended cabling: Cat 6a or better (solid copper)
- Colour: Black
