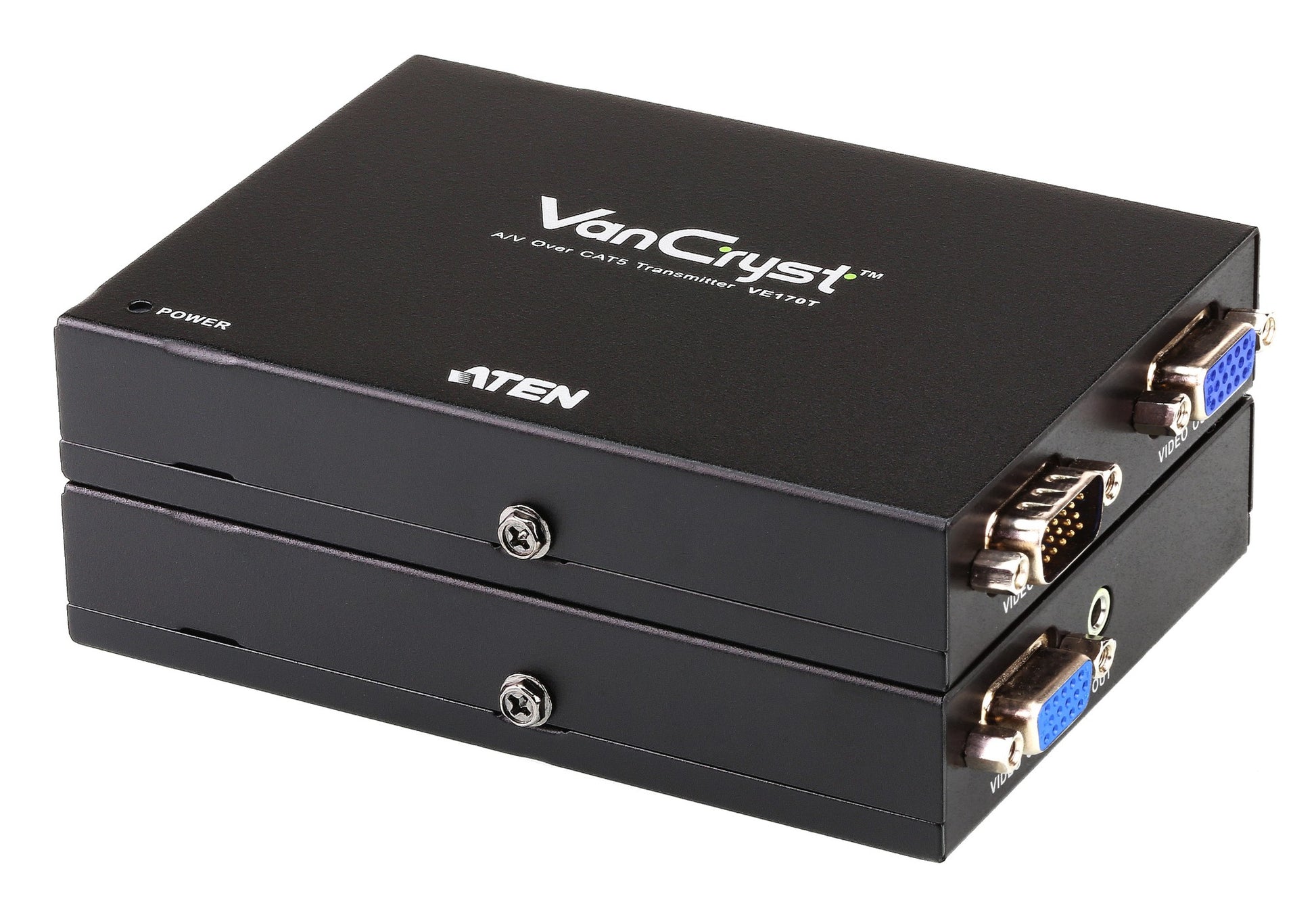

• Black rectangular vancryst by aten vga audio cat 5 av extender kit with silver vga ports and power indicator backside view

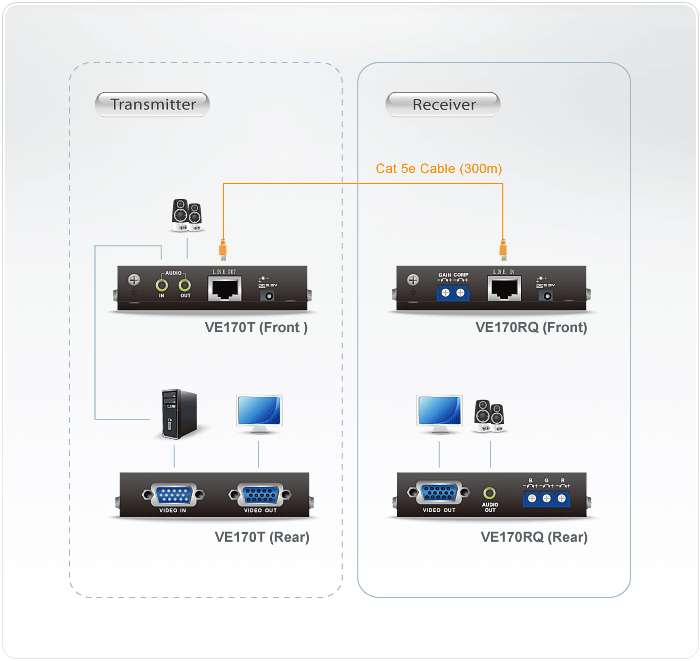

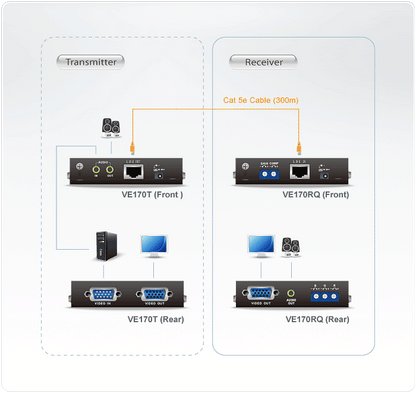

  • Black rectangular aten ve170t and ve170rq vga audio cat 5 av extender kit back side with ethernet vga audio ports and lights

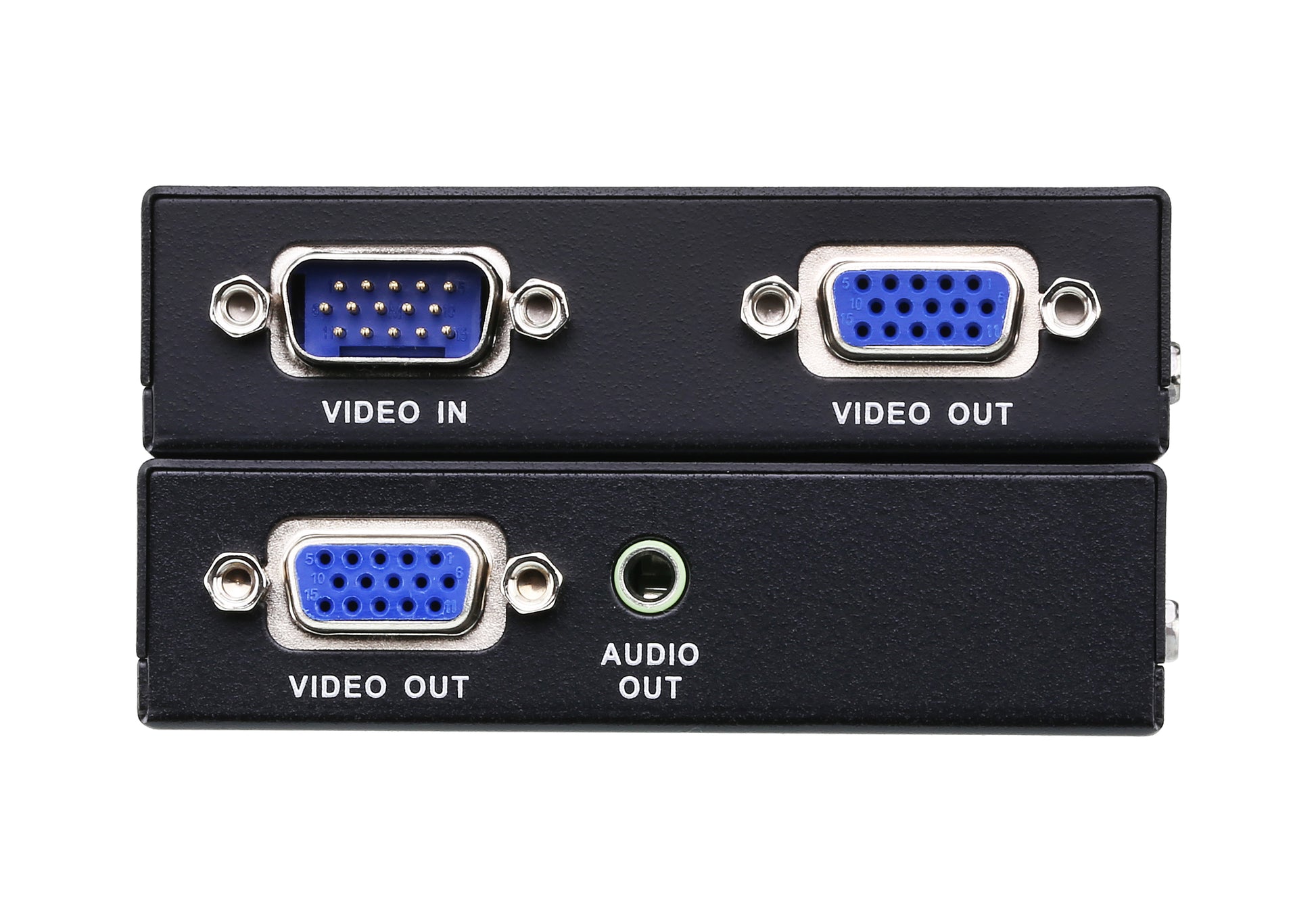

  • Black rectangular velen audio vga cat 5 extender back with three vga ports blue plastic connectors and 3.5mm jack

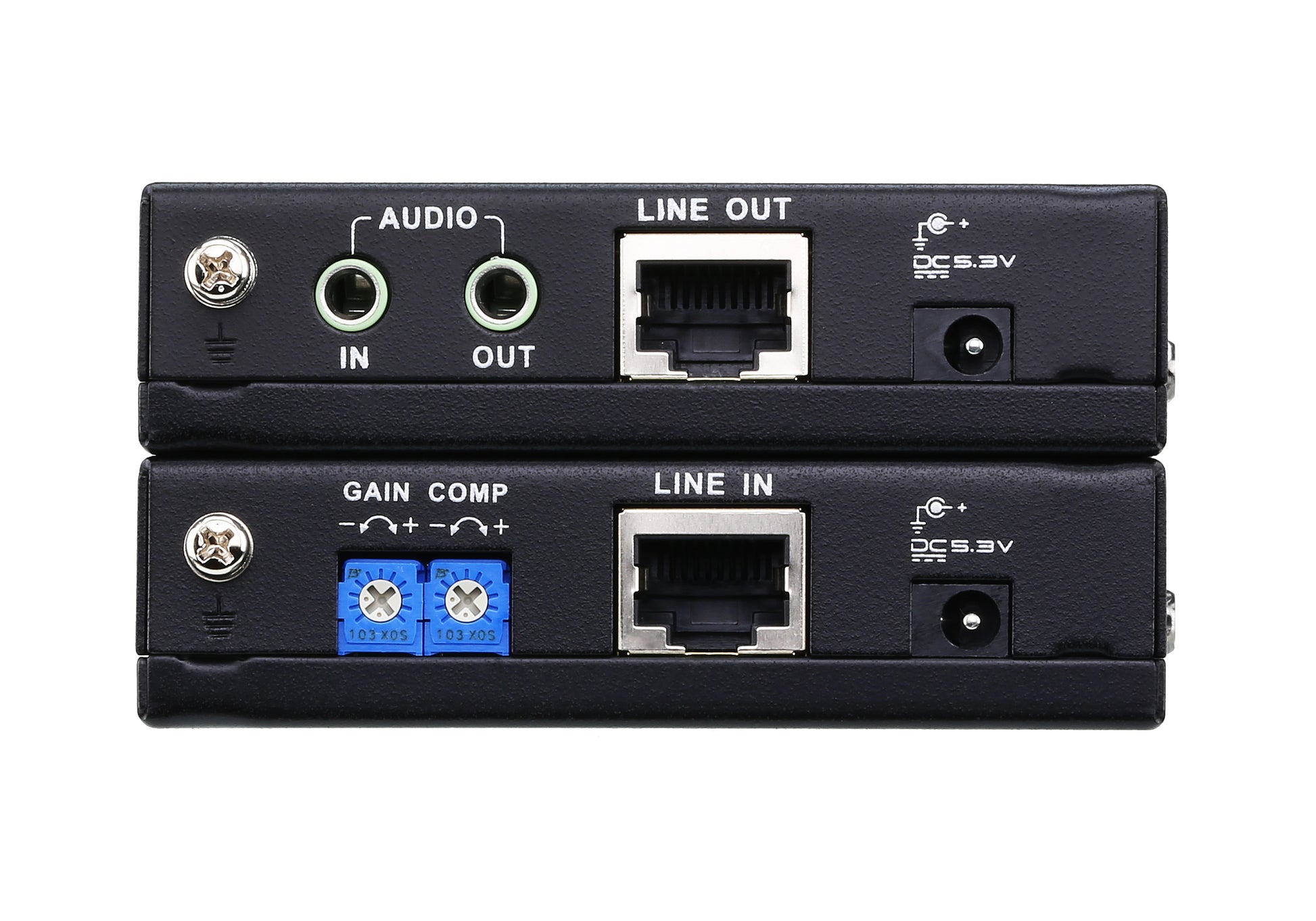

  • Backside of aten ve170-at-u black vga audio cat 5 av extender kit with ethernet ports audio jacks and gain knobs
1 4

ATEN

ATEN VE170-AT-U | VGA/Audio Cat 5 AV Extender Kit, 300m, 1080p, Tx+Rx

ATEN VE170-AT-U | VGA/Audio Cat 5 AV Extender Kit, 300m, 1080p, Tx+Rx

VE170-AT-U

Stock Status: Enquire

$467.18 AUD
$467.18 AUD
$467.18 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The ATEN VE170 VGA/Audio Cat 5 AV Extender Kit delivers reliable long-distance AV signal extension over a single Cat 5e cable, making it ideal for digital signage, classrooms, boardrooms, and large-venue installations. This complete transmitter and receiver kit (VE170T + VE170R) supports resolutions up to 1920x1200 at close range and maintains 1024x768 at distances up to 300 m (1000 ft), with adjustable gain control to fine-tune signal strength at the receiver end. Built-in ESD protection (8KV/15KV) and a rugged metal housing ensure dependable, long-term operation in professional environments.

The VE170 supports one local and one remote VGA display simultaneously, allowing the source to feed both the transmitter-side monitor and the remote screen without additional splitters. Mono audio is carried over the same Cat 5e run, eliminating the need for separate audio cabling. Plug-and-play installation requires no software or drivers, and the units are compatible with ATEN VS1204T/VS1208T A/V Over Cat 5 Splitters for scalable multi-zone deployments. Note: this kit includes the standard VE170R receiver without Deskew correction. Available now at iptrading.com.au — competitive prices and local support.

Features

- Complete transmitter and receiver kit (VE170T + VE170R) — ready to deploy out of the box
- Extends VGA and mono audio over a single Cat 5e cable up to 300 m (1000 ft)
- Supports one local and one remote VGA display simultaneously
- Adjustable Gain Control — video gain and compensation tuners allow manual signal optimisation at the receiver
- Built-in ESD protection (8KV air / 15KV contact) for reliable operation in demanding environments
- Plug and play — no drivers or software installation required
- VESA FDMI-compliant rack-mountable design for clean installation
- Compatible with ATEN VS1204T/VS1208T A/V Over Cat 5 Splitters for multi-zone scaling
- Rugged metal housing for durability in professional AV deployments

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Video Interface: VGA (HDB-15)
- Cable Type: Cat 5e (1 x RJ-45 per unit)
- Maximum Transmission Distance: 300 m (1000 ft)
- Maximum Resolution: 1920x1200 @ 60Hz (up to 30 m); 1600x1200 @ 60Hz (up to 150 m); 1024x768 @ 60Hz (up to 300 m)
- Video Bandwidth: 300 MHz
- Audio: Mono
- Video Input (Transmitter): 1 x HDB-15 Male (Blue)
- Video Output (Transmitter): 1 x HDB-15 Female (Blue)
- Video Output (Receiver): 1 x HDB-15 Female (Blue)
- Supports 1 local and 1 remote VGA display simultaneously
- ESD Protection: 8KV (Air) / 15KV (Contact)
- Housing: Metal
- Unit Dimensions: 4.7 x 3.4 x 0.9 in (each unit)
- Unit Weight: 0.25 kg (each unit)
- Operating Temperature: 0–50°C
- Storage Temperature: -20–60°C
- Humidity: 0–80% RH, Non-condensing
- Kit Contents: VE170T (Transmitter) + VE170R (Receiver, standard — without Deskew)

FAQs

Q: What is included in the ATEN VE170-AT-U kit?
A: The VE170-AT-U includes one VE170T transmitter and one VE170R receiver. This is the standard kit with the VE170R receiver that does not include Deskew correction. A separate Deskew-capable receiver variant is available if colour convergence correction is needed over very long cable runs.

Q: What maximum resolution and distance does the VE170 support?
A: The VE170 supports up to 1920x1200 @ 60Hz at distances up to 30 m, 1600x1200 @ 60Hz up to 150 m, and 1024x768 @ 60Hz at the maximum distance of 300 m (1000 ft) over a single Cat 5e cable.

Q: Does the VE170 support audio extension?
A: Yes, the VE170 supports mono audio transmission over the same Cat 5e cable used for the VGA video signal, eliminating the need for a separate audio run.

Q: Can the VE170 drive two displays at once?
A: Yes. The transmitter supports both a local VGA display and passes the signal to the remote receiver simultaneously, so one source can feed two screens without an additional splitter.

Q: Is the VE170 compatible with other ATEN AV distribution equipment?
A: Yes. The VE170 is compatible with ATEN VS1204T and VS1208T A/V Over Cat 5 Splitters, enabling scalable multi-zone deployments where a single VGA source feeds multiple remote displays across a building.

Q: Can I purchase the ATEN VE170-AT-U in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller stocking the ATEN VE170-AT-U with competitive pricing and local support. Contact us for volume pricing, availability, or compatibility advice.
