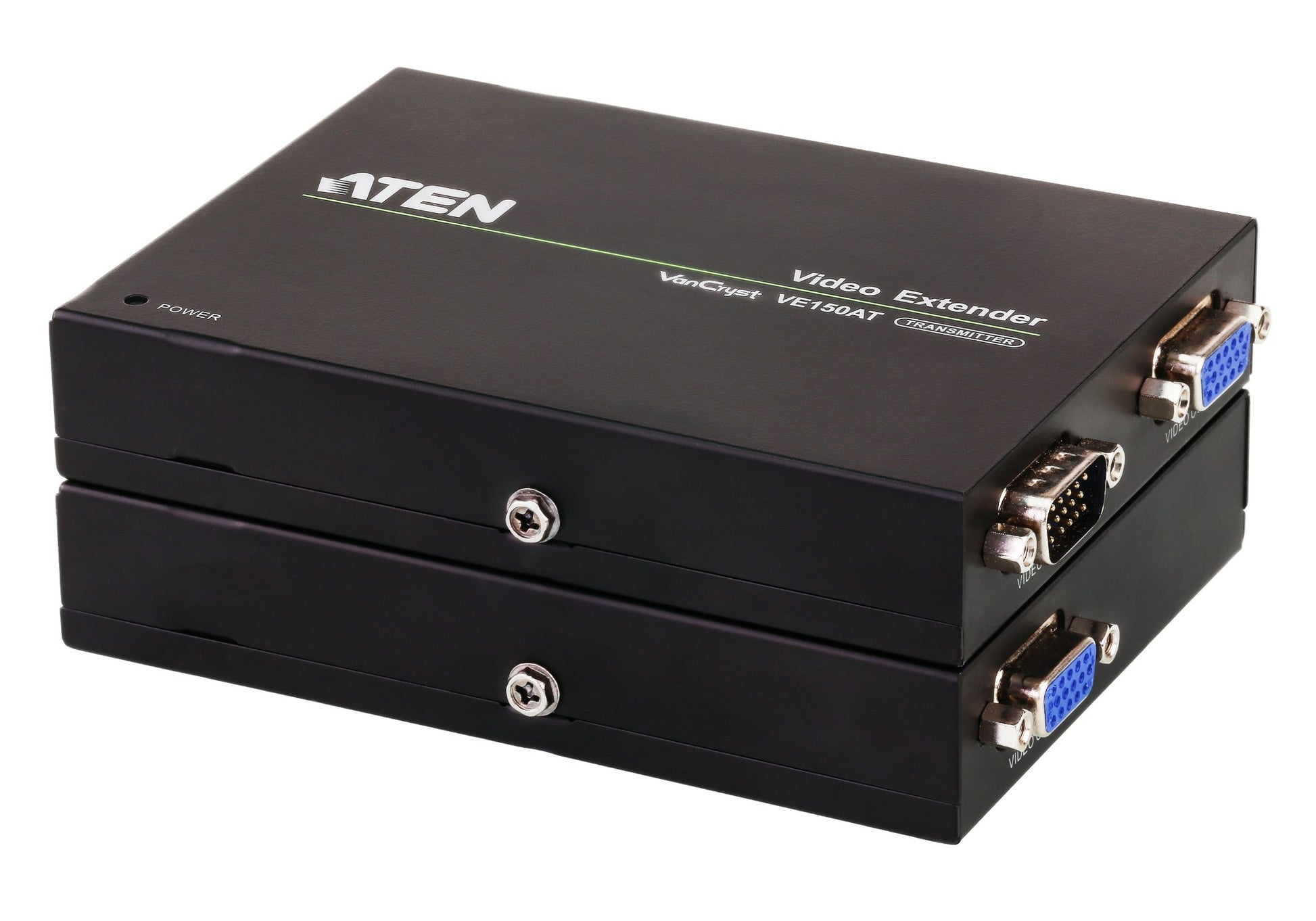

ATEN VE150A-AT-U | VE150A VGA Cat5 Extender Kit, 1 x Local + 1 x Remote, 1900x1200@60Hz 30m, 1280x1024@60Hz 150m

ATEN VE150A-AT-U | VE150A VGA Cat5 Extender Kit, 1 x Local + 1 x Remote, 1900x1200@60Hz 30m, 1280x1024@60Hz 150m

SKU:VE150A-AT-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The VE150A VGA over Cat5 extender kit delivers dependable long€‘distance analog video distribution using standard twisted€‘pair cabling.. It provides a local VGA loop€‘through at the transmitter and a remote VGA output at the receiver, with manual gain/focus adjustments to fine€‘tune image clarity at distance. Ideal for classrooms, digital signage and control rooms, it supports up to 150 m at 1280x1024@60Hz and up to 30 m at 1900x1200@60Hz.. Backed by the manufacturer€™s warranty and local support.. iptrading.com.au your local source for enterprise-grade networking solutions.

Features

- Extend VGA over inexpensive Cat5/5e/6 cabling
- Local loop€‘through plus remote display for flexible monitoring
- Sharp images at distance with adjustable gain and focus
- Supports up to 150 m for 1280x1024 applications
- Compact, metal enclosures for reliable installation

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What maximum distance and resolution does the VE150A support?
A: Up to 150 m at 1280x1024@60Hz over Cat5/5e/6, and up to 30 m at 1900x1200@60Hz.

Q: Can I connect a local display at the source as well as a remote display?
A: Yes. The transmitter provides a local VGA loop€‘through output in addition to the remote VGA output at the receiver.

Q: What cable should I use for the best results?
A: Use solid€‘copper Cat5e or Cat6 UTP terminated to TIA/EIA€‘568B with good quality keystones and patching; avoid CCA and poor€‘quality terminations.

Q: Does this extender carry audio?
A: No. The VE150A is for analog VGA video only.

Q: Can I use VGA€‘to€‘DVI adapters?
A: Yes, with passive DVI€‘A (analog) adapters. It will not convert to DVI€‘D/HDMI digital signals.

Q: Can I purchase this in Australia from IP Trading?
A: Yes. IP Trading supplies this model in Australia with GST€‘compliant invoicing and local warranty support.

Technical Specifications

- Video type: Analog VGA (RGBHV)
- Transmitter (TX) connectors: 1 x VGA input (HDB-15 female), 1 x VGA local output (HDB-15 female), 1 x RJ45 link port
- Receiver (RX) connectors: 1 x VGA output (HDB-15 female), 1 x RJ45 link port
- Supported resolutions/distances: up to 1900x1200@60Hz at 30 m; up to 1280x1024@60Hz at 150 m
- Cabling: Cat5/5e/6 UTP/STP (TIA/EIA-568 terminated)
- Image controls (RX): gain and focus (equalisation) adjustments
- Local monitor loop-through on transmitter
- Metal enclosure; colour: Black
- External DC power (TX and RX)
