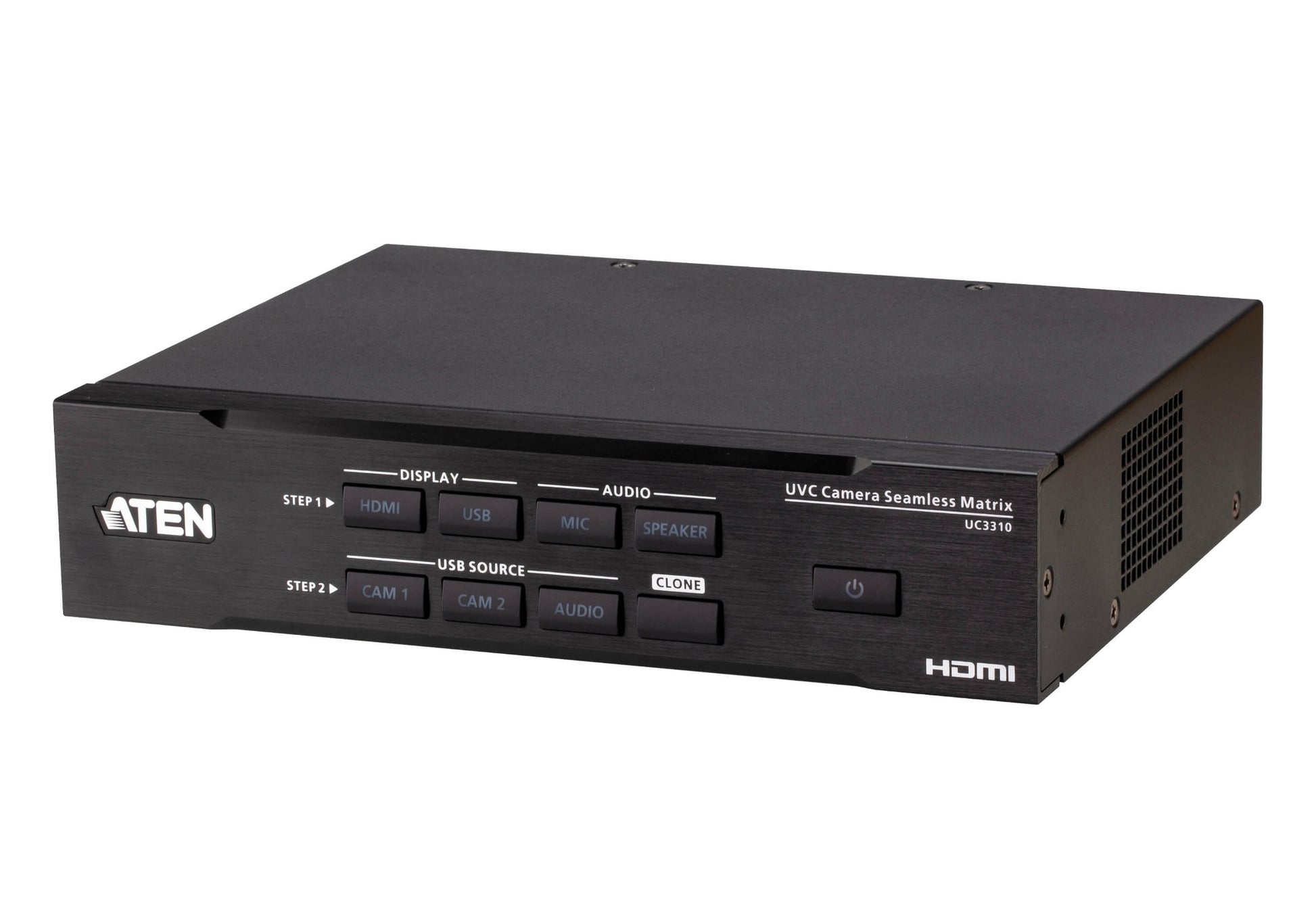

ATEN UC3310-AT-U | CAMLIVE MX UVC Camera Matrix Switch, 2x USB 3.0, HDMI

Name: ATEN UC3310-AT-U | CAMLIVE MX UVC Camera Matrix Switch, 2x USB 3.0, HDMI
Brand: ATEN
SKU: UC3310-AT-U
Price: 761.53 AUD
Availability: BackOrder

Authorised ATEN Partner

SKU:UC3310-AT-U

Stock Status: Enquire

$761.53 inc. GST

$692.30 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The ATEN UC3310-AT-U CAMLIVE MX is a USB camera matrix switch that converts up to two 4K@30 USB camera sources into a single HDMI program output with seamless switching. A simultaneous UVC output at up to 4K@30 feeds streaming and conferencing software, making it well suited to meeting rooms, lecture theatres and live production setups.

USB AVSync technology delivers zero-second USB video switching, while UAFV (USB Audio Follow Video) keeps audio aligned with the active camera. The independent 3x2 audio/video matrix lets you preset USB matrix paths for different conference scenarios, and the unit works with Microsoft Teams, Zoom, OBS, XSplit, YouTube, Facebook, GoToWebinar and Twitch.

Features

- USB AVSync technology with zero-second USB video switching
- UAFV (USB Audio Follow Video) keeps audio matched to the active camera
- Presettable USB matrix paths for different conference scenarios
- Seamless switching between two USB camera sources
- Compatible with Microsoft Teams, Zoom, OBS, XSplit, YouTube, Facebook, GoToWebinar and Twitch
- Simultaneous HDMI program output and 4K@30 UVC output

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x USB 3.2 Gen1 Type-B (blue) camera inputs, USB-B to USB-A cable included
- 1 x HDMI program (PGM) output
- UVC output supporting up to 4K@30
- Video resolutions: 720p, 1080p and 2160p at 24/25/30 fps, up to 60 fps for 720p/1080p
- Independent 3x2 audio/video matrix (3 audio and 2 video USB sources)
- Colour space: NV12
- Audio: 16-bit PCM, 48 kHz
- RS-232 control via RJ-45 (50bps to 921.6Kbps, default 9600bps)
- RS-485 PTZ control via terminal block, VISCA protocol (50 to 115200bps, default 9600bps)
- ESD protection: IEC 61000-4-2, contact 4kV / air 8kV

FAQs

Q: How many cameras can the ATEN UC3310 connect?
A: It provides two USB 3.2 Gen1 Type-B camera inputs, so up to two USB cameras can be connected and switched seamlessly.

Q: What outputs does the UC3310 provide?
A: It has one HDMI program (PGM) output and a UVC output supporting up to 4K@30 for streaming and conferencing software.

Q: Which conferencing and streaming platforms does it work with?
A: It is compatible with Microsoft Teams, Zoom, OBS, XSplit, YouTube, Facebook, GoToWebinar and Twitch.

Q: Does the UC3310 support PTZ camera control?
A: Yes. RS-485 PTZ control is provided via a terminal block using the VISCA protocol, and RS-232 control is available via RJ-45.

Q: What resolutions and frame rates are supported?
A: It supports 720p, 1080p and 2160p at 24/25/30 fps, with up to 60 fps available for 720p and 1080p.

Q: Is a USB cable included?
A: Yes, a USB-B to USB-A cable is included for connecting a camera input.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
