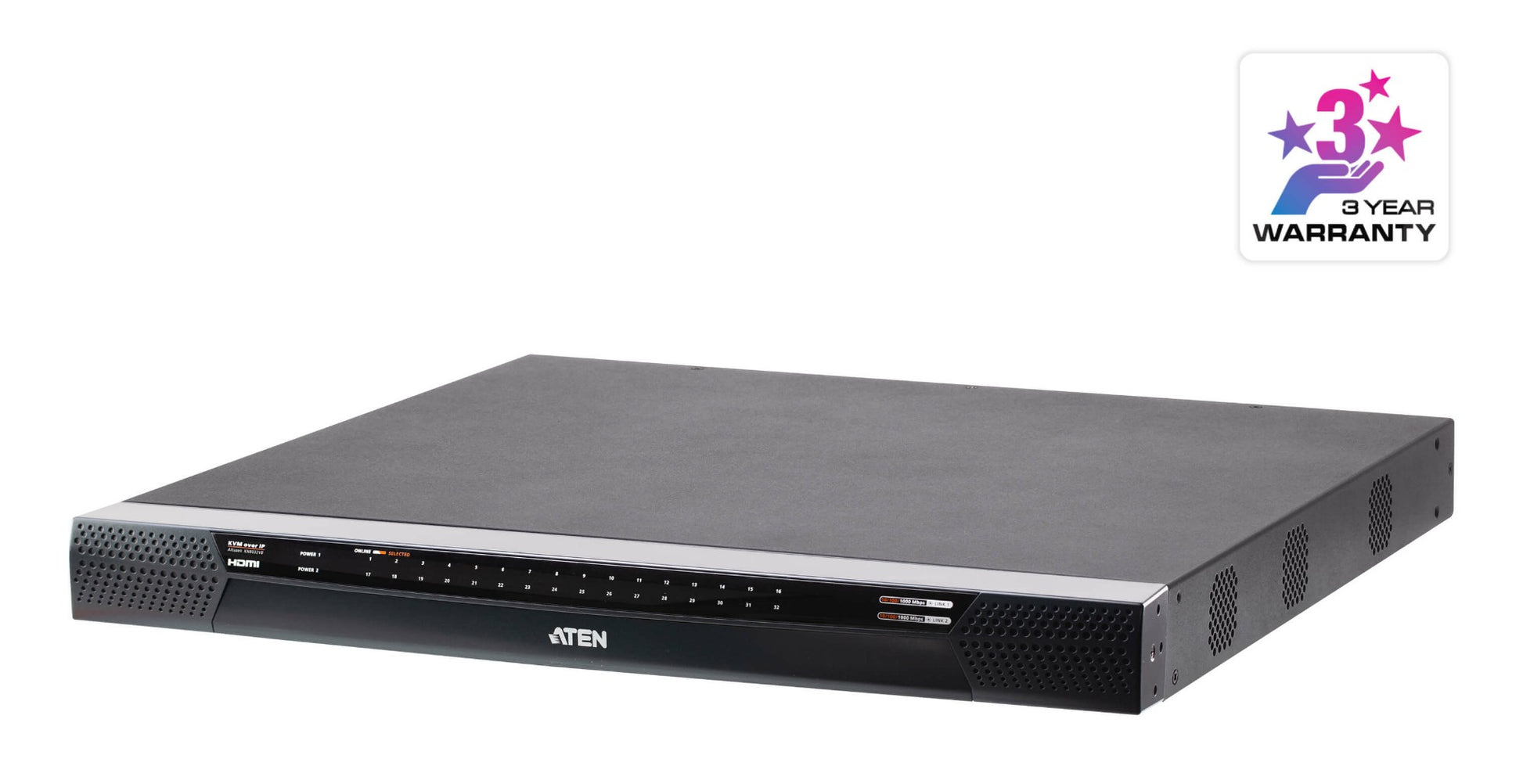

ATEN KN8032VB-AX-U | KN8032VB 32-Port CAT5 KVM over IP Switch, 1 Local + 8 Remote, Virtual Media, Dual LAN/PSU

ATEN KN8032VB-AX-U | KN8032VB 32-Port CAT5 KVM over IP Switch, 1 Local + 8 Remote, Virtual Media, Dual LAN/PSU

SKU:KN8032VB-AX-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The ATEN KN8032VB-AX-U is a 32€‘port, multi€‘interface CAT5 KVM over IP switch designed for secure, centralised server management.. It provides 1 local console plus up to 8 concurrent remote sessions, with virtual media for fast OS installs and updates.. Designed for mixed server environments via ATEN adapters, it streamlines access across data centre and distributed sites. Manufacturer warranty applies.. With dual Gigabit LAN and dual power inputs for redundancy, the KN8032VB delivers resilient out€‘of€‘band access and space€‘saving CAT5 connectivity in a 1U rackmount form factor.. Ideal for enterprises standardising on secure remote operations and rapid recovery workflows.. Order now at iptrading.com.au trusted by Australian IT professionals.

Features

- Consolidate control of up to 32 servers from one switch
- Secure, out-of-band IP access for rapid troubleshooting anywhere
- Virtual Media accelerates OS deployment and maintenance
- Redundant LAN and power for continuous operation
- Space-saving CAT5 architecture and 1U rackmount design
- Flexible multi-platform support via ATEN adapters

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: How many users can access the KN8032VB at the same time?
A: It supports 1 local console and up to 8 concurrent remote users (shared access) for a total of 9 sessions.

Q: Does the KN8032VB support virtual media for remote ISO mounting?
A: Yes. Virtual Media is supported, enabling remote OS installs, patches and file transfers as if a local USB device were attached.

Q: What server interfaces are supported?
A: Using ATEN KVM adapters, it connects to a wide range of platforms and video interfaces, including USB or PS/2 for keyboard/mouse and VGA/DVI/HDMI/DisplayPort for video (adapter-dependent).

Q: Is redundancy available for networking and power?
A: Yes. It features dual Gigabit Ethernet ports and dual AC power inputs for failover resilience.

Q: Can I expand beyond 32 servers?
A: Yes. ATEN supports tiering/cascading with compatible KVMs and adapters to expand the number of managed servers.

Q: Can I purchase this in Australia from IP Trading?
A: Yes. IP Trading is an Australian supplierorder the KN8032VB-AX-U directly at iptrading.com.au.

Technical Specifications

- Ports: 32 x RJ-45 KVM server ports (Cat 5e/6)
- User access: 1 x local console + up to 8 x remote users (shared access)
- Virtual Media support for remote ISO/USB mounting
- Network: Dual 10/100/1000 MbE (RJ-45) for redundancy
- Power: Dual AC power inputs (redundant)
- Local console: VGA video with USB keyboard/mouse
- Management: Secure remote KVM over IP
- Rackmount: 1U form factor, rack kit included
- Multi-interface server support via ATEN KVM adapters (USB, PS/2, VGA/DVI/HDMI/DP depending on adapter)
- High-resolution remote console viewing
