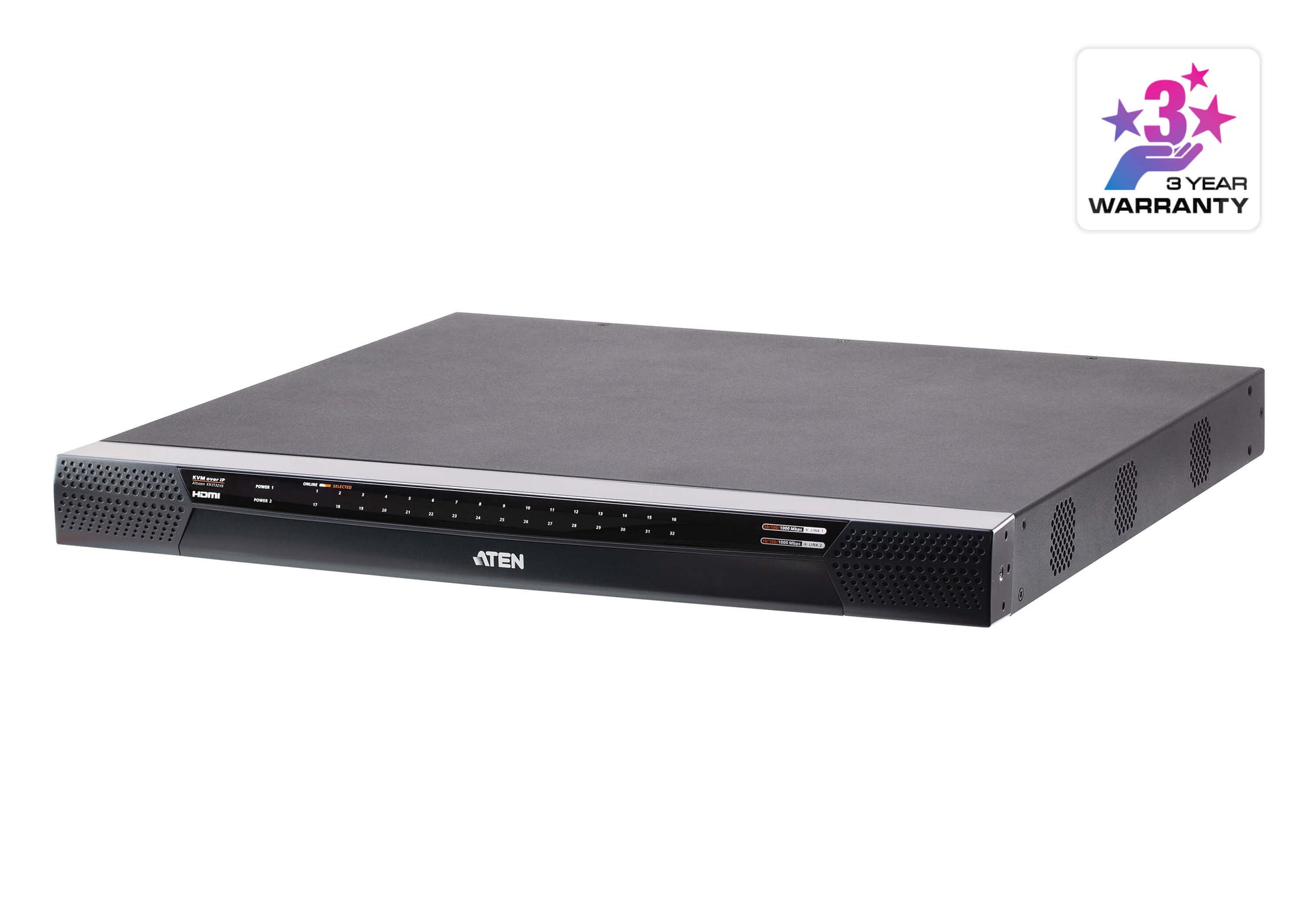

ATEN KN2132VB-AX-U | KN2132VB KVM over IP, 32 x Cat5 Ports, 1 Local/2 Remote, Virtual Media, Dual PSU

ATEN KN2132VB-AX-U | KN2132VB KVM over IP, 32 x Cat5 Ports, 1 Local/2 Remote, Virtual Media, Dual PSU

SKU:KN2132VB-AX-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

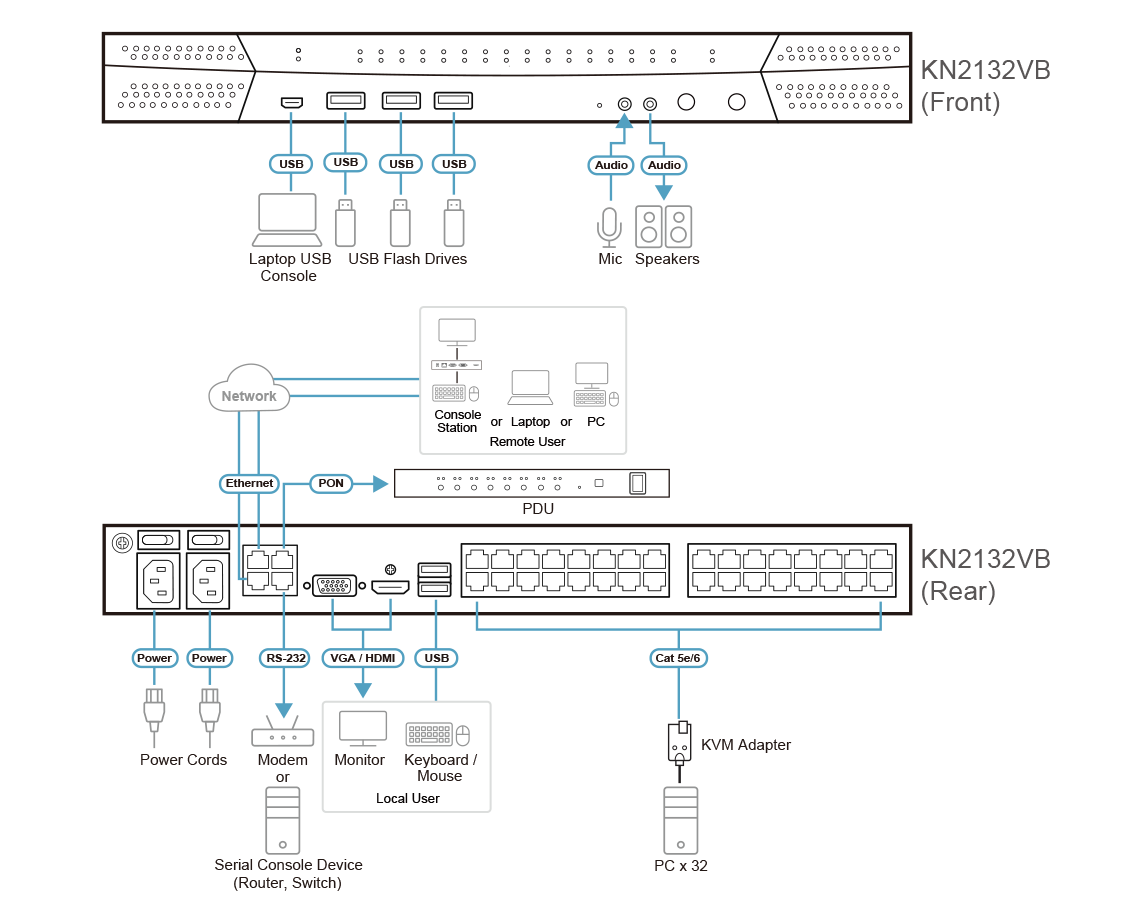

The ATEN KN2132VB-AX-U is a 32-port Cat 5 KVM over IP switch that provides 1 local and 2 simultaneous remote sessions for secure, out-of-band access to mixed-interface servers via compact Cat 5 KVM adapters.. It supports high-resolution remote viewing, virtual media for remote installs, and robust authentication for data centre-grade control.. Built for resilience and scalability, it features dual GbE and dual AC power inputs, 1U rackmount design, and broad multi-platform compatibility. Backed by manufacturer warranty and supported locally.. Need it fast?. iptrading.com.au delivers across Australia shop now. Need it fast? iptrading.com.au delivers across Australia shop now.

Features

- High user density with 32 x Cat 5 KVM ports in 1U
- 1 local + 2 remote sessions for concurrent management
- Virtual Media for fast remote OS installs and updates
- Dual PSU and dual LAN for robust redundancy
- Strong security with AES encryption and enterprise auth
- Multi-platform server support via compact KVM adapters

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: How many users can access the switch at the same time?
A: It supports 1 local console session and up to 2 simultaneous remote IP sessions.

Q: What server interfaces are supported?
A: Servers connect via Cat 5/5e/6 cables using ATEN KVM adapters, supporting USB or PS/2 keyboard/mouse and video types such as VGA, DVI, or HDMI (adapter-dependent).

Q: Does it support Virtual Media for remote installs?
A: Yes. USB 2.0 Virtual Media enables remote OS installation, patching, and file transfers.

Q: Is there redundancy for power and network?
A: Yes. It provides dual AC power inputs and dual Gigabit Ethernet ports for failover.

Q: What resolution can I expect over IP?
A: Remote sessions support up to 1920 x 1200 at 60 Hz, subject to network conditions and adapter capabilities.

Q: Can I purchase the KN2132VB-AX-U in Australia from IP Trading?
A: Yes. IP Trading supplies ATEN products in Australia with tax invoices and nationwide delivery. Contact the team for stock and lead times.

Technical Specifications

- Model: KN2132VB-AX-U
- Form factor: 1U rackmount
- KVM computer ports: 32 x RJ-45 (Cat 5/5e/6)
- Local console: 1 x VGA + 2 x USB (keyboard/mouse)
- Remote access: up to 2 concurrent IP sessions
- Network: 2 x Gigabit Ethernet (RJ-45)
- Power redundancy: Dual AC power inputs (100-240 VAC)
- Virtual Media: USB 2.0 over IP for remote installs/updates
- Max remote resolution: up to 1920 x 1200 @ 60 Hz
- Security: AES 256-bit encryption; supports LDAP/AD, RADIUS, TACACS+
- Serial management: 1 x RS-232 port (for service/modem OOB)
- Cascading: Supports expansion via KVM cascading (using ATEN adapters)
