ATEN

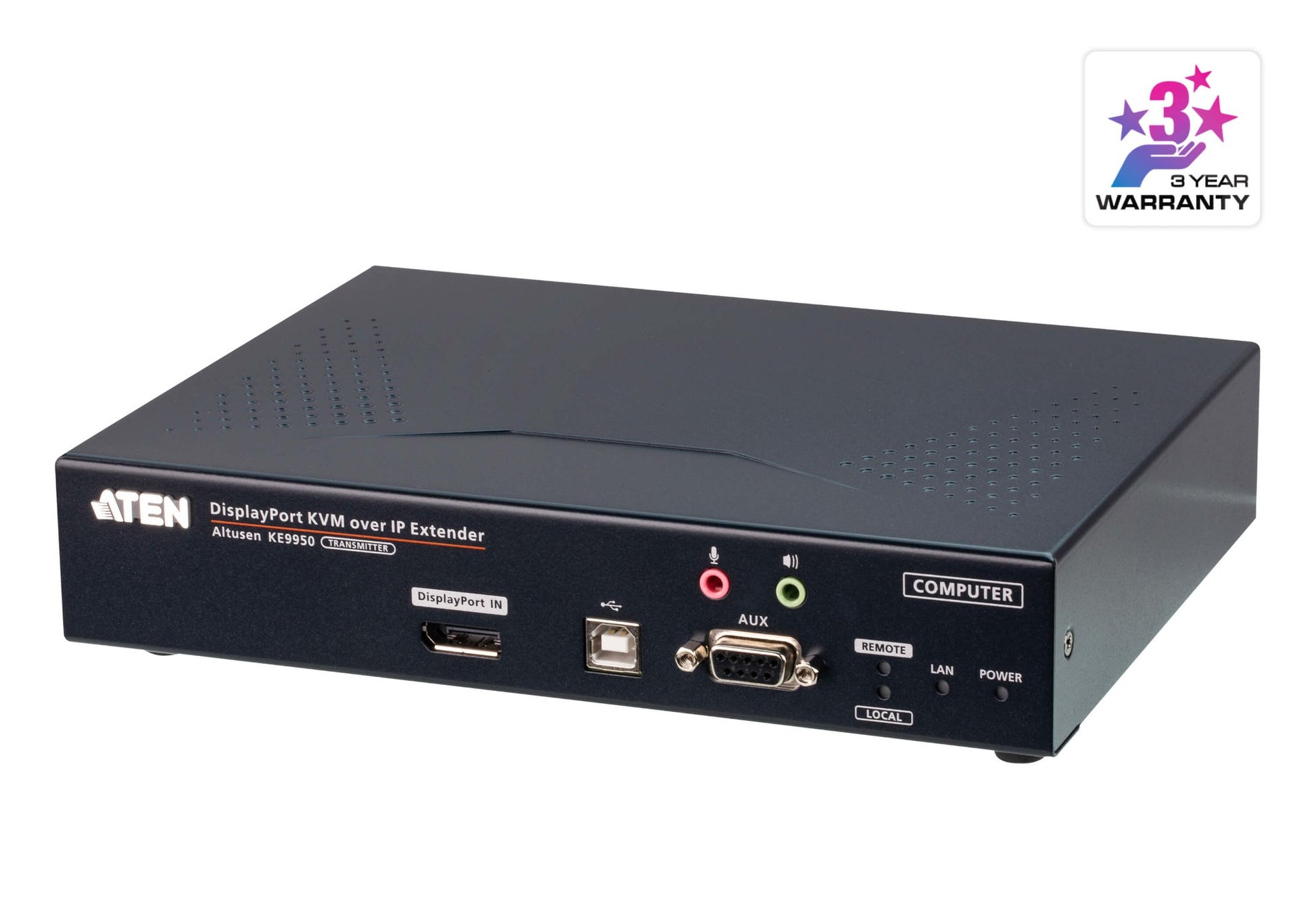

ATEN KE9950T-AX-U | KE9950T KVM over IP Transmitter, 4K DP Single Display, SFP, USB, RS-232, Audio

ATEN KE9950T-AX-U | KE9950T KVM over IP Transmitter, 4K DP Single Display, SFP, USB, RS-232, Audio

SKU:KE9950T-AX-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The KE9950T is a DisplayPort single€‘display KVM over IP transmitter that delivers up to 4K UHD video, keyboard/mouse, audio and RS€‘232 over standard IP networks.. With both RJ45 and SFP (fibre) connectivity options, it enables flexible point€‘to€‘point, point€‘to€‘multipoint and matrix deployments with compatible receivers.. Integrate with ATEN€™s CCKM for effortless switching, scheduling and control across distributed workstations and control rooms. Built for 24/7 environments and backed by the manufacturer€™s warranty.. Need it fast?. iptrading.com.au delivers across Australia shop now. Need it fast? iptrading.com.au delivers across Australia shop now.

Features

- True 4K DisplayPort single€‘display extension over standard IP networks
- Flexible deployment with both RJ45 and SFP fibre connectivity
- Seamless keyboard/mouse, audio and RS€‘232 transport
- Works with ATEN CCKM for centralised control and matrix switching
- Rack€‘mountable design suited to control rooms and broadcast suites
- Vendor€‘backed reliability with manufacturer warranty

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What does the KE9950T do?
A: It is a DisplayPort single€‘display KVM over IP transmitter that encodes video, keyboard/mouse, audio and RS€‘232 from a source computer and sends them over an IP network to a compatible receiver.

Q: Which receivers are compatible?
A: Use the KE9950T with compatible ATEN KE99€‘series DisplayPort receivers such as the KE9950R/KE9952R for point€‘to€‘point, one€‘to€‘many or matrix configurations.

Q: Does it support fibre as well as copper networks?
A: Yes. It includes a standard 1GbE RJ45 port for copper and an SFP slot for 1GbE fibre (SFP transceiver sold separately).

Q: What USB devices are supported?
A: The transmitter connects to the host via USB 2.0 Type€‘B and supports HID€‘class devices such as keyboards and mice through the KVM link.

Q: Can I build a KVM matrix for multiple users and sources?
A: Yes. When used with ATEN€™s CCKM management software, KE99€‘series endpoints can be centrally managed for matrix switching, profiles and permissions.

Q: Can I purchase this in Australia from IP Trading?
A: Yes. IP Trading supplies ATEN KVM over IP solutions in Australia with local delivery, invoicing and support.

Technical Specifications

- Role: KVM over IP Transmitter (Tx) for single€‘display setups
- Video input: 1 x DisplayPort (DP 1.2)
- Max resolution: up to 3840 x 2160 @30Hz; supports lower resolutions including 2560 x 1600 @60Hz and 1920 x 1200 @60Hz
- Network: 1 x 10/100/1000 Mbps RJ45; 1 x SFP slot (1GbE; fibre module sold separately)
- USB to host: 1 x USB 2.0 Type€‘B (HID for keyboard/mouse)
- Serial: RS€‘232 passthrough
- Audio: 2€‘channel analogue line in/out (3.5 mm)
- Power input: 12 V DC
- Management: compatible with ATEN CCKM for matrix switching and control
- Mounting: rack€‘mountable with bracket kit
- Operating temperature: 0-40°C
