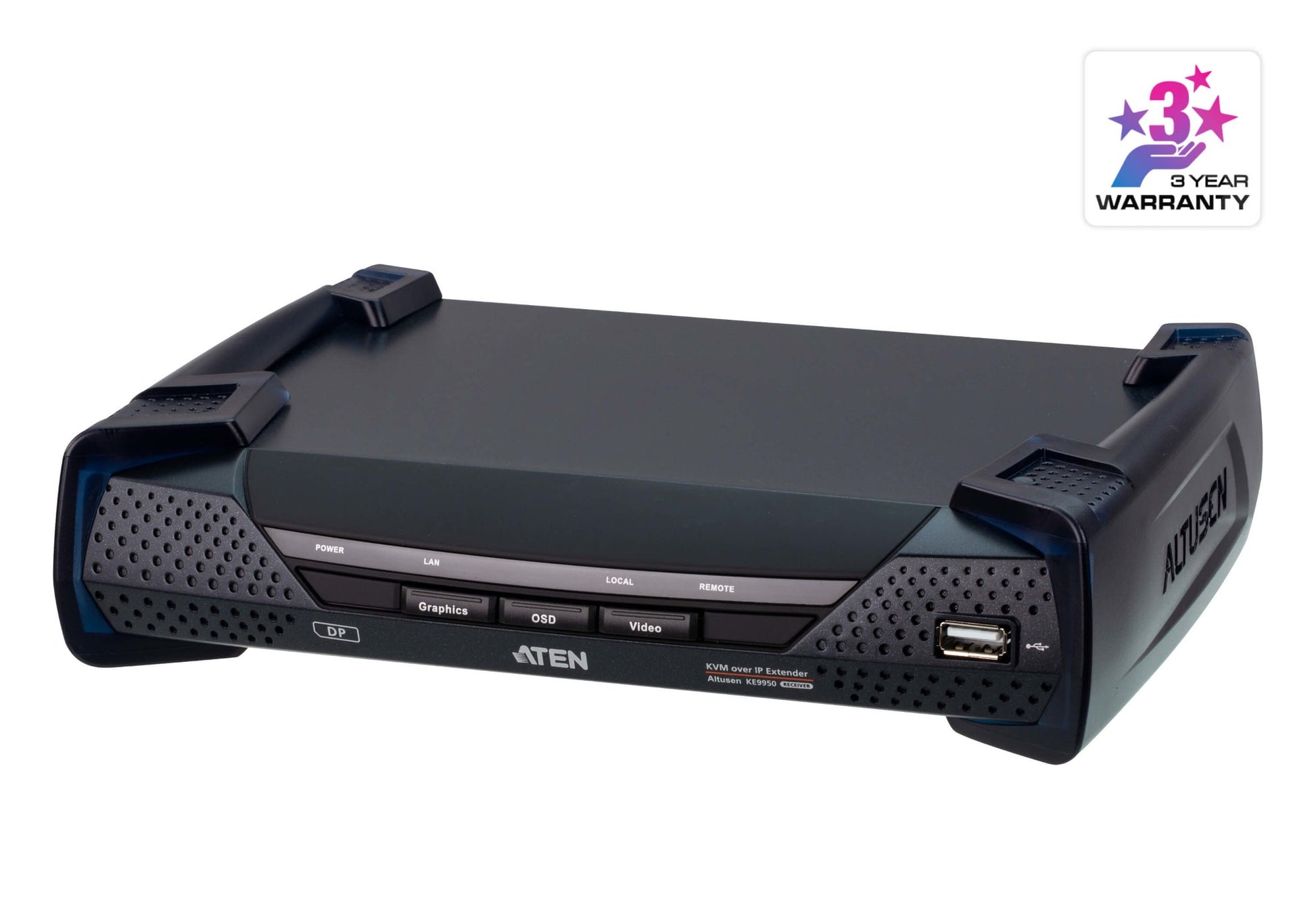

ATEN KE9950R-AX-U | KE9950R 4K DP KVM over IP Receiver, Single Display, USB, 1GbE RJ45/SFP

ATEN KE9950R-AX-U | KE9950R 4K DP KVM over IP Receiver, Single Display, USB, 1GbE RJ45/SFP

SKU:KE9950R-AX-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The KE9950R is a 4K DisplayPort single-display KVM over IP receiver designed for high-performance control rooms and secure remote access. Pair it with a compatible KE-series transmitter to extend video, USB, audio and serial over standard 1GbE networks using copper or fibre. It delivers crisp 4K UHD output, flexible network connectivity via RJ45 or SFP, and redundant power for always-on environments, backed by ATEN manufacturer warranty. iptrading.com.au your local source for enterprise-grade networking solutions.

Features

- 4K DisplayPort output for detailed, colour-accurate visuals
- Flexible deployment over copper or fibre via RJ45/SFP
- Reliable input switching and smooth USB HID/peripheral redirection
- Redundant power inputs help maximise uptime
- Single-display design simplifies setup and reduces cost
- Scales from point-to-point links to matrix deployments with KE transmitters

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What video resolution does the KE9950R support?
A: It supports up to 4K UHD 3840 x 2160 at 30 Hz on a single DisplayPort display.

Q: Can I use either copper or fibre for the network link?
A: Yes. The receiver provides a 1GbE RJ45 port for copper and an SFP slot for 1GbE fibre modules.

Q: Does the KE9950R work point-to-point without a switch?
A: Yes. It can be paired directly with a compatible KE-series transmitter for point-to-point, or used over a switched IP network for matrix applications.

Q: How many USB peripherals can I connect to the receiver?
A: Up to four USB 2.0 peripherals via the four downstream Type-A ports.

Q: Is there serial and audio support on the receiver?
A: Yes. It includes RS-232 (DB-9) and 3.5 mm line in/out for audio.

Q: Can I purchase the KE9950R in Australia from IP Trading?
A: Yes. IP Trading offers Australian supply with GST invoicing and local support. Contact iptrading.com.au for pricing and availability.

Technical Specifications

- Product type: KVM over IP receiver (DisplayPort, single display)
- Video output: 1 x DisplayPort
- Max resolution: up to 3840 x 2160 (4K UHD) at 30 Hz
- Network: 1 x 1GbE RJ45; 1 x SFP slot (1GbE) for fibre modules
- USB: 4 x USB 2.0 Type-A downstream ports for keyboard/mouse/peripherals
- Serial: 1 x RS-232 (DB-9)
- Audio: 3.5 mm line in and line out
- Power: dual DC inputs for power redundancy
- Form factor: desktop or rack-mountable (kit availability may vary)
