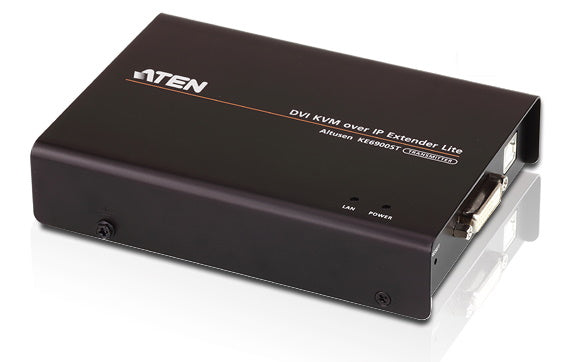

• Black aten ke6900st-ax-u dvi-d kvm over ip slim extender transmitter only with metallic ports shown from the back side
1 1

ATEN

ATEN KE6900ST-AX-U | KE6900ST DVI-D KVM over IP Slim Extender, Transmitter Only

ATEN KE6900ST-AX-U | KE6900ST DVI-D KVM over IP Slim Extender, Transmitter Only

KE6900ST-AX-U

In stock:5

$1,149.88 inc. GST
$1,045.35 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The ATEN KE6900ST is a slim DVI-D KVM over IP transmitter designed for flexible remote access deployments across enterprise and data centre environments. Delivering visually lossless video at up to 1920×1200 @ 60 Hz over a standard Gigabit network, this compact unit supports USB keyboard and mouse, Virtual Media, RS-232 serial control, and AES-encrypted transmission — making it a secure, full-featured transmitter for distributed KVM matrix installations. Its space-saving 0U form factor supports desktop, wall-mount, or rack rear-mount installation, and integrates seamlessly with any KE Series receiver.

Compatible with ATEN's CCKM (CC2000 KVM over IP Manager) for advanced features including boundless switching, video wall, multi-display, and profile scheduling, the KE6900ST also supports Slim Matrix Mode (up to 12 Tx units with unlimited Rx units) without a controller. Remote authentication via RADIUS, LDAP, and Active Directory ensures enterprise-grade access control. Available now at iptrading.com.au — competitive prices and local support.

Features

- Visually lossless video quality with low latency transmission over standard IP networks
- DVI-D single display support for precise, high-resolution video up to 1920×1200 @ 60 Hz
- Flexible topology support: one-to-one, one-to-many, many-to-one, and many-to-many (Matrix mode)
- Virtual Media function enables remote access to USB storage from the receiver end
- RS-232 serial command support for integration with third-party control systems
- AES encryption secures all KVM data including video, keyboard, mouse, and USB channels
- Enterprise authentication via RADIUS, LDAP, and Active Directory
- CCKM integration enables boundless switching, fast switching, video wall, multi-display, and profile scheduling
- Slim Matrix Mode: up to 12 Tx units with unlimited Rx units — no controller required
- Auto-detection of KE Series extenders on the same subnet for simplified deployment
- Space-saving 0U form factor with desktop, wall-mount, and rack rear-mount options
- Compatible with any ATEN KE Series receiver or transmitter
- TAA compliant for government and regulated procurement

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Video Interface: 1 x DVI-D (Single Display, from computer)
- Max Video Resolution: 1920 x 1200 @ 60 Hz
- Colour Depth: 24-bit, visually lossless compression
- Network: 1 x RJ-45, 10/100/1000 Mbps Ethernet
- KVM Interface: USB (keyboard and mouse)
- Serial: RS-232 port support
- Virtual Media: Supported
- Encryption: AES (Video, Keyboard, Mouse, USB data)
- Direct CAT-5e Extension: Up to 100 m (330 ft)
- Matrix Mode (Slim, no CCKM): Up to 12 Tx with unlimited Rx
- Authentication: RADIUS / LDAP / Active Directory
- Mounting: Desktop, wall-mount, 0U rack rear-mount
- TAA Compliant

FAQs

Q: What is included with the KE6900ST — is a receiver required separately?
A: The KE6900ST is a transmitter-only unit. It connects to your source computer via DVI-D and USB, and requires a compatible ATEN KE Series receiver (such as the KE6900R) at the remote end to complete the KVM over IP extension. Receivers are sold separately.

Q: What video resolution does the KE6900ST support?
A: The KE6900ST supports DVI-D single display video at up to 1920×1200 @ 60 Hz with visually lossless compression and 24-bit colour depth, suitable for demanding workstation and control room applications.

Q: Can the KE6900ST be used in a matrix switching environment?
A: Yes. It supports flexible topologies including one-to-one, one-to-many, many-to-one, and many-to-many configurations. Slim Matrix Mode allows up to 12 transmitters with unlimited receivers without a dedicated controller. For advanced features like video wall and profile scheduling, integration with ATEN's CC2000 CCKM is supported.

Q: Is the KE6900ST secure for enterprise deployments?
A: Yes. It uses AES encryption for all KVM data (video, keyboard, mouse, and USB) and supports enterprise authentication protocols including RADIUS, LDAP, and Active Directory, making it suitable for secure government, finance, and enterprise environments.

Q: Does the KE6900ST support Virtual Media?
A: Yes, Virtual Media is supported, allowing users at the remote receiver end to access USB storage devices connected locally — useful for file transfers and OS installations without physical access to the source computer.

Q: Can I purchase the KE6900ST in Australia with local support?
A: Yes. The ATEN KE6900ST is available now through iptrading.com.au, an Australian B2B IT hardware reseller offering competitive pricing and local support. Contact us for volume pricing or to discuss your KVM over IP deployment requirements.
