ATEN CS1922M-AT-U | CS1922M 2 x Port 4K DisplayPort KVMP, Dual-Monitor MST, USB 3.0

ATEN CS1922M-AT-U | CS1922M 2 x Port 4K DisplayPort KVMP, Dual-Monitor MST, USB 3.0

CS1922M-AT-U

Stock Status: Enquire

$719.79 AUD
$719.79 AUD
$719.79 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

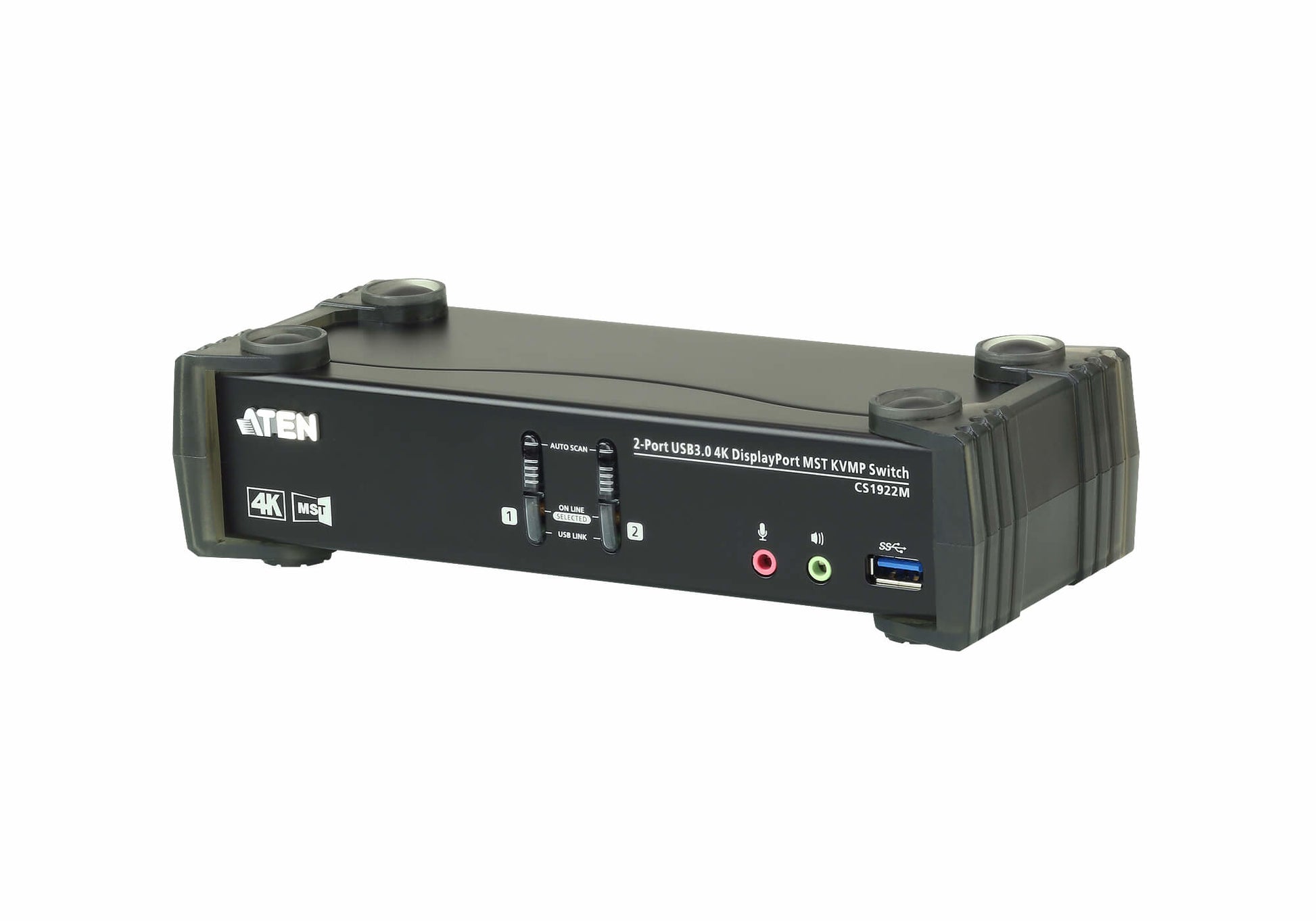

The ATEN CS1922M is a 2-port USB 3.0 4K DisplayPort KVMP switch with a built-in MST hub, enabling dual-monitor output from a single DP 1.2 source on each computer.. It delivers crisp 4K60 visuals, shares high-speed USB peripherals, and includes audio support. Perfect for CAD, content creation, trading floors and control rooms, it streamlines two PCs to one keyboard/mouse while expanding display real estate via MST.. Backed by ATEN's manufacturer warranty.. Order now at iptrading.com.au trusted by Australian IT professionals.

Features

- Dual-monitor productivity via built-in DP 1.2 MST
- True 4K60 output for precise, professional visuals
- Share high-speed USB 3.0 peripherals between two PCs
- Quick, reliable front-panel switching with status LEDs
- Integrated stereo audio switching
- Cables included for faster, cleaner setup
- Cross-platform compatibility (Windows, macOS, Linux)

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2 x computer ports (DisplayPort + USB)
- Built-in MST hub: single-to-dual monitor expansion per computer
- Console video: 2 x DisplayPort outputs
- DisplayPort 1.2 with MST support
- Max resolution: up to 4096 x 2160 @ 60 Hz (per display)
- USB 3.0 hub: 2 x downstream ports (up to 5 Gbps)
- Stereo audio input/output via 3.5 mm jacks
- Front-panel push-button selection with LED status indicators
- Keyboard/mouse emulation; hot-pluggable
- Cables included for two computers
- Firmware upgradable
- OS compatibility: Windows, macOS, Linux

FAQs

Q: Can this switch drive two monitors from each computer?
A: Yes. The CS1922M has a built-in DisplayPort 1.2 MST hub that expands a single DP output from each computer to two monitors (GPU and OS must support MST).

Q: What is the maximum resolution supported?
A: Up to 4096 x 2160 at 60 Hz (4K60) per display, subject to GPU, cable quality, and monitor capabilities.

Q: Does it share USB peripherals and at what speed?
A: Yes. The integrated USB 3.0 hub provides 2 downstream ports with transfer rates up to 5 Gbps for devices like storage, webcams, and printers.

Q: How do I switch between the two computers?
A: Use the front-panel push buttons; LEDs indicate the active port.

Q: Is audio switching supported?
A: Yes. The switch provides 3.5 mm stereo audio I/O and switches audio along with the selected computer.

Q: Can I buy the CS1922M in Australia from IP Trading?
A: Yes. IP Trading supplies ATEN products in Australia with GST invoicing and access to the manufacturer's warranty support.
