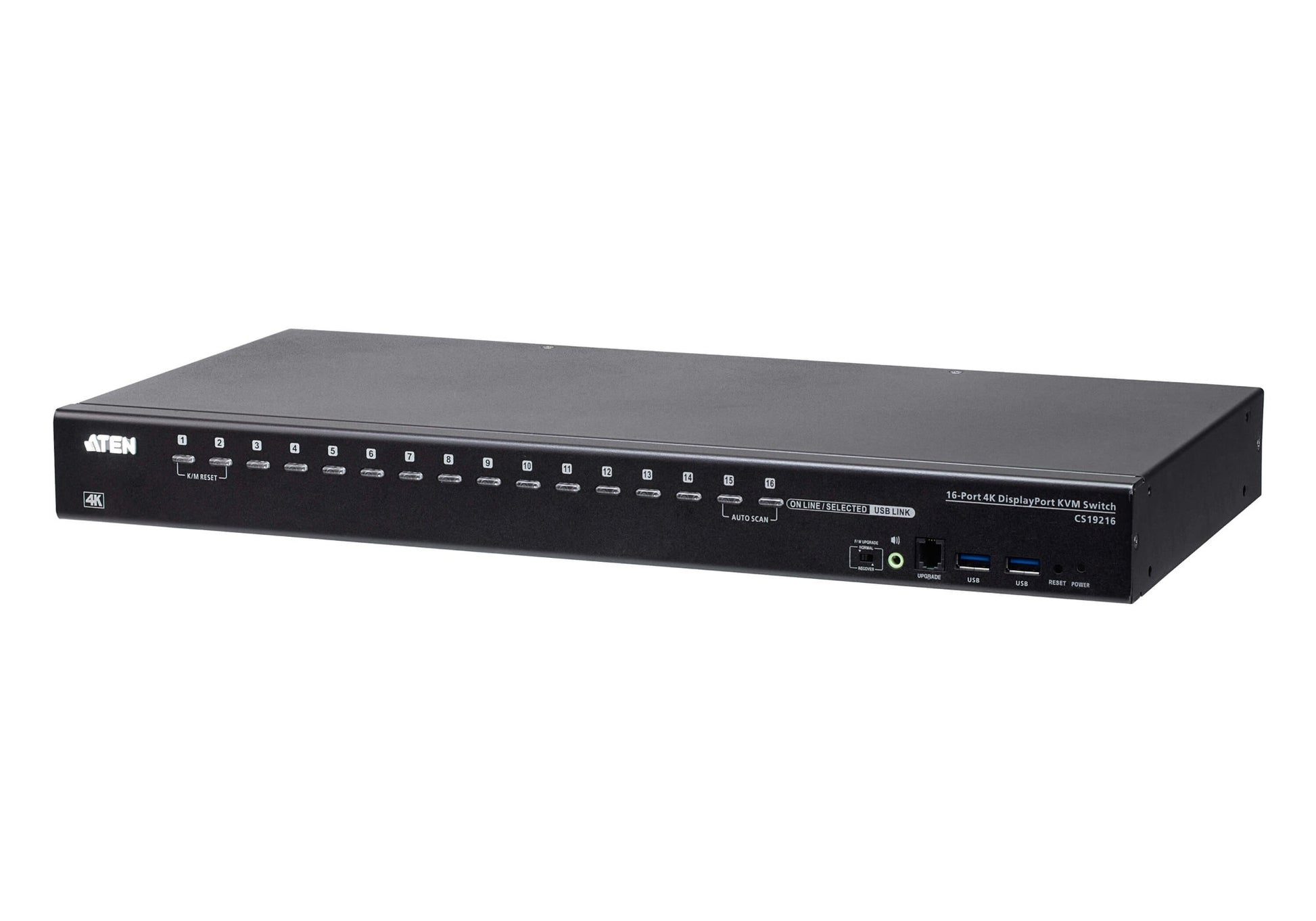

ATEN CS19216-AT-U | CS19216 | 16-Port DisplayPort KVM Switch, 4K@60Hz, USB 3.0, Cascade to 256

ATEN CS19216-AT-U | CS19216 | 16-Port DisplayPort KVM Switch, 4K@60Hz, USB 3.0, Cascade to 256

CS19216-AT-U

Stock Status: Enquire

$3,316.83 AUD
$3,316.83 AUD
$3,316.83 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

ATEN's CS19216 is a 16-port DisplayPort KVM switch designed for modern 4K workstations and server rooms.. It delivers crisp 4K (4096/3840 x 2160 @ 60 Hz) video, smooth USB keyboard/mouse control, and a high-speed USB 3.0 peripheral hub for shared storage and other devices.. ATEN Video DynaSync ensures instant, stable EDID to prevent boot-up and display issues. Built for scale and efficiency, the CS19216 supports two-level cascading to manage up to 256 computers, with quick access via front pushbuttons, hotkeys or OSD.. Multi-platform compatibility and firmware-upgradable design protect your investment, and it's backed by ATEN's limited warranty.. Order direct from iptrading.com.au Australian-owned and operated since 2001.

Features

- 4K@60Hz clarity for high-end DP workstations and servers
- Fast, reliable switching with EDID preservation via Video DynaSync
- USB 3.0 hub for shared high-speed peripherals
- Scale to 256 systems with two-level cascading
- Flexible control via buttons, hotkeys, and OSD
- Multi-platform support to simplify mixed environments
- Rack-ready construction for clean data-centre installs
- Firmware upgradable for future compatibility

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 16 x computer ports (DisplayPort video + USB keyboard/mouse)
- DisplayPort 1.2 console video; supports up to 4096 x 2160 and 3840 x 2160 @ 60 Hz
- Integrated USB 3.0 hub (up to 5 Gbps) for peripheral sharing
- ATEN Video DynaSync for optimised EDID and fast display switching
- Cascadable to two levels; control up to 256 computers
- Port selection via front-panel pushbuttons, hotkeys, and on-screen display (OSD)
- Keyboard/mouse emulation for reliable boot and seamless switching
- Multi-platform support: Windows, Linux, macOS and more
- Firmware upgradable
- 19-inch rack-mountable design

FAQs

Q: Does the CS19216 support true 4K at 60 Hz?
A: Yes. It supports 4K resolutions up to 4096 x 2160 and 3840 x 2160 at 60 Hz over DisplayPort 1.2.

Q: Can I share USB peripherals like external drives or webcams across all connected computers?
A: Yes. The built-in USB 3.0 hub allows high-speed peripheral sharing across selected computers.

Q: How many computers can I manage if I cascade units?
A: You can cascade to two levels, enabling control of up to 256 computers from a single console.

Q: What are the switching options between computers?
A: You can switch using the front-panel pushbuttons, keyboard hotkeys, or the on-screen display (OSD).

Q: Is it compatible with different operating systems?
A: Yes. It works with Windows, Linux, and macOS systems without special drivers for basic KVM control.

Q: Can I purchase the ATEN CS19216 in Australia from IP Trading?
A: Absolutely. Order directly from IP Trading for local stock, GST invoicing, and Australian support.
