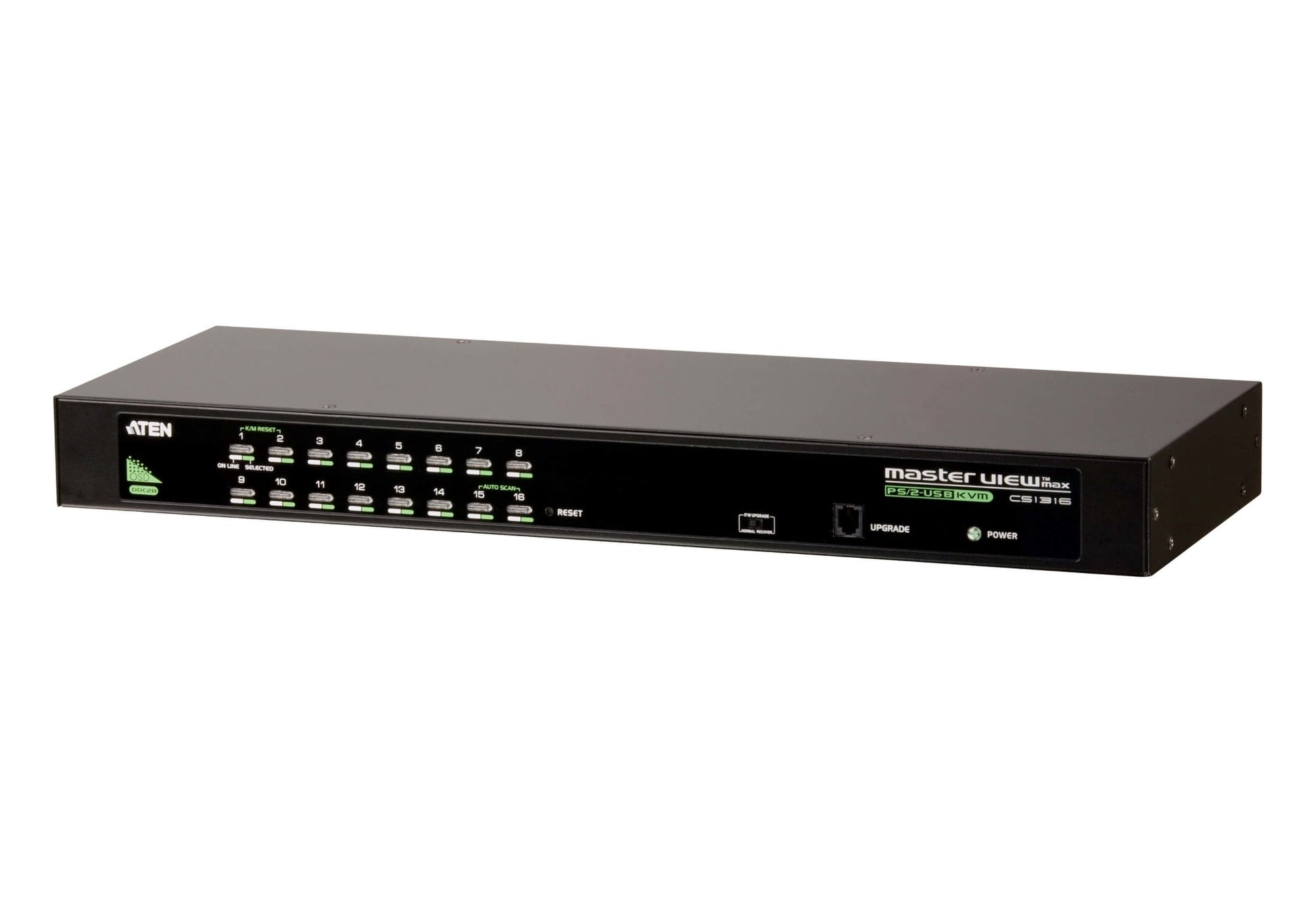

ATEN CS1316-AT-U | CS1316 16-Port VGA PS/2-USB Rackmount KVM Switch, OSD, Daisy-Chain

ATEN CS1316-AT-U | CS1316 16-Port VGA PS/2-USB Rackmount KVM Switch, OSD, Daisy-Chain

SKU:CS1316-AT-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Manage up to 16 computers from a single console with the ATEN CS1316, a rackmount VGA KVM designed for mixed PS/2 and USB server environments. Quick switching is enabled via front-panel buttons, hotkeys, and an on-screen display for efficient navigation. Featuring broadcast mode for simultaneous command sending, scalable daisy-chain expansion, and crisp 2048x1536 VGA video, it€™s built for reliable control in server rooms and labs. Backed by the manufacturer€™s warranty. Available now at iptrading.com.au competitive prices and local support.

Features

- Control 16 servers from one console
- Works with both USB and PS/2 hosts
- Fast switching via buttons, hotkeys, and OSD
- Broadcast mode for simultaneous command input
- Daisy-chain scalability for growing environments
- Sharp VGA output up to 2048 x 1536
- Secure, user-friendly OSD with password protection
- Sturdy 1U rackmount design

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Can the CS1316 control both USB and PS/2 servers?
A: Yes. It supports mixed environments using the appropriate KVM cables for USB or PS/2 connections on the computer side.

Q: What display resolution does this KVM support?
A: It supports VGA video up to 2048 x 1536 with DDC2B for clear, high-quality output.

Q: How do I switch between connected computers?
A: You can switch via front-panel buttons, keyboard hotkeys, or the on-screen display (OSD).

Q: Can I expand beyond 16 computers?
A: Yes. The CS1316 supports daisy-chain expansion so you can scale to large deployments as needed.

Q: Are KVM cables included in the box?
A: No. KVM cables are not included; choose the correct USB or PS/2 cables for each server.

Q: Can I buy the ATEN CS1316 in Australia from IP Trading?
A: Yes. IP Trading supplies the CS1316 in Australia with GST-compliant invoices, local support, and fast shipping.

Technical Specifications

- 16 x KVM computer ports (VGA video; PS/2 or USB keyboard/mouse via appropriate cables)
- Console ports: 1 x VGA; 2 x USB Type-A (keyboard/mouse); 2 x PS/2 (keyboard/mouse)
- Video resolution up to 2048 x 1536, DDC2B
- Front-panel pushbutton, hotkey, and OSD switching
- Broadcast mode for sending commands to multiple targets
- Daisy-chain expansion for large deployments
- Multi-platform support: Windows, Linux, Mac, and Sun
- Auto-Scan and Auto Sensing of connected interfaces
- Per-port LED status indicators
- Password-protected OSD with multi-level user access
- Firmware upgradable
- 1U rack-mountable steel chassis (black finish)
- External DC power input
- KVM cables not included
