ATEN

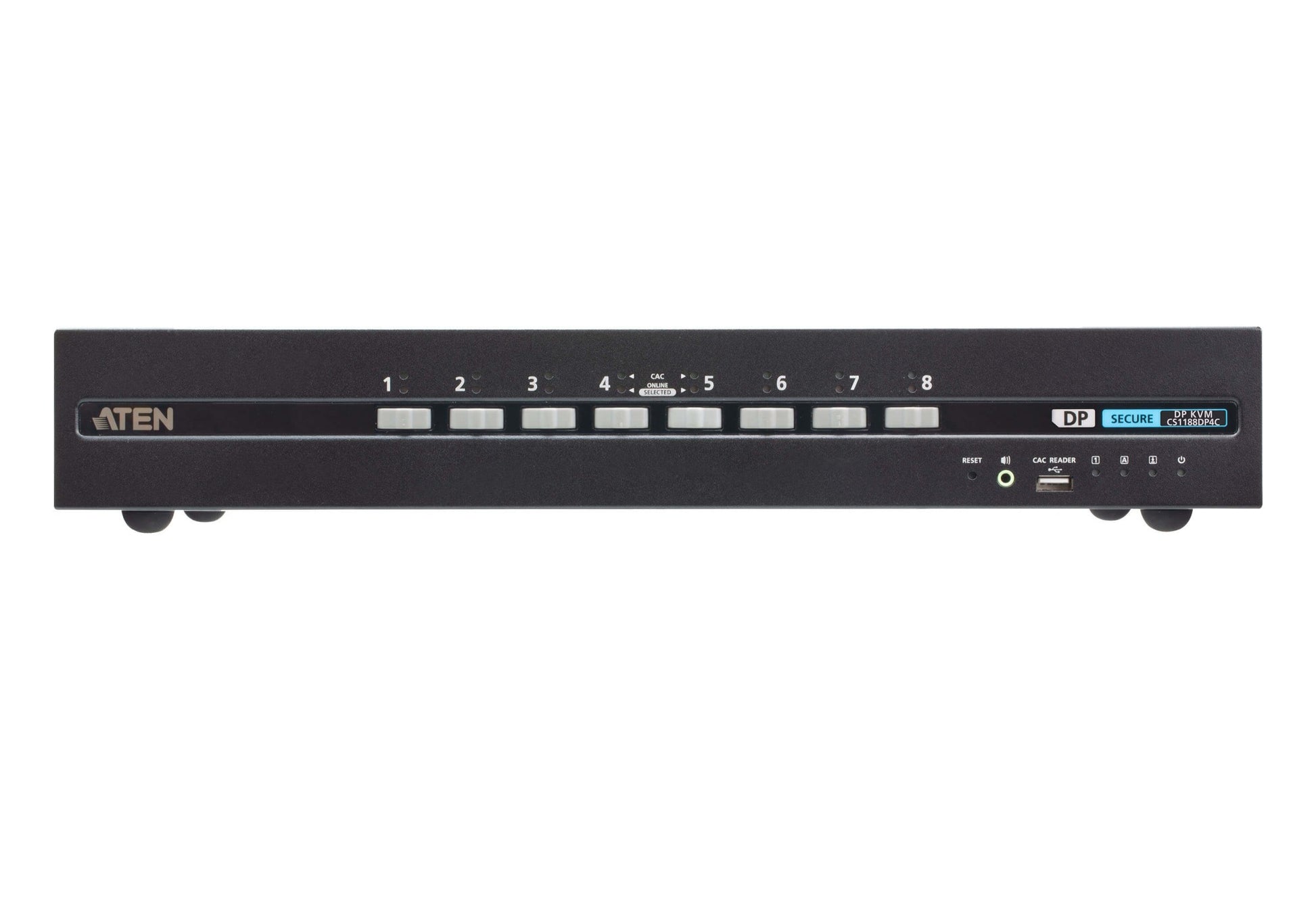

ATEN CS1188DP4C-AT-U | CS1188DP4C Secure KVM Switch, 8 x DisplayPort, 4K60, USB HID + CAC

ATEN CS1188DP4C-AT-U | CS1188DP4C Secure KVM Switch, 8 x DisplayPort, 4K60, USB HID + CAC

SKU:CS1188DP4C-AT-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The CS1188DP4C is an 8€‘port Secure KVM that lets you control multiple DisplayPort computers from a single console while enforcing strict data path isolation. It supports 4K60 video, dedicated USB HID for keyboard/mouse, and a CAC/smart€‘card port for high€‘assurance authentication workflows. Compliant with NIAP PP for Peripheral Sharing Device (PSD) v4.0, it integrates tamper€‘evident protections and unidirectional data flows for peace of mind. Backed by ATEN€™s manufacturer warranty, it€™s built for defence, government and enterprise environments requiring stringent security. Upgrade your network with gear from iptrading.com.au Australia€™s IT hardware specialists.

Features

- High€‘assurance control of 8 DP computers from one secure console
- 4K60 DisplayPort video for clear, detailed desktop and application work
- CAC/smart€‘card support enables strong user authentication
- HID€‘only USB design prevents data leakage via peripherals
- NIAP PP PSD v4.0 compliance for government and defence use
- Robust 1U metal chassis suitable for rack€‘mounted deployments

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What video resolution does the CS1188DP4C support?
A: It supports up to 3840 x 2160 at 60 Hz (4K60) over DisplayPort 1.2.

Q: Does this Secure KVM support CAC or smart€‘card authentication devices?
A: Yes. It provides a dedicated, securely managed USB port for CAC/smart€‘card readers in accordance with NIAP PP PSD v4.0.

Q: Are non€‘HID USB peripherals (e.g., storage) allowed?
A: No. To maintain data path isolation, the console USB ports are HID€‘only for keyboard and mouse. The CAC port is reserved for approved authentication readers.

Q: Can I rack€‘mount the switch in a server cabinet?
A: Yes. The metal enclosure is 1U rack€‘mountable, suitable for standard 19€‘inch racks.

Q: Is it compliant with NIAP requirements?
A: Yes. It is NIAP Protection Profile for Peripheral Sharing Device (PSD) v4.0 compliant.

Q: Can I buy the CS1188DP4C in Australia from IP Trading?
A: Yes. IP Trading supplies ATEN Secure KVMs in Australia. Contact the IP Trading team for pricing, availability, and local support.

Technical Specifications

- KVM type: Secure KVM (NIAP PP PSD v4.0 compliant)
- Computer connections: 8 x DisplayPort video with USB HID
- Console: 1 x DisplayPort monitor, 2 x USB Type€‘A (keyboard/mouse)
- Peripheral authentication: 1 x dedicated CAC/smart€‘card reader USB port
- Max resolution: 3840 x 2160 @ 60 Hz (4K UHD)
- Video standard: DisplayPort 1.2 with per€‘port EDID emulation
- USB device control: HID€‘only for keyboard/mouse; peripheral data isolation
- Security: Unidirectional data flow, non€‘reprogrammable firmware, tamper€‘evident and anti€‘tamper mechanisms
- Port selection: Front€‘panel push buttons with secure switching
- Chassis: Metal, 1U rack€‘mountable
- Power: External 12 VDC input
- OS compatibility: Windows, macOS, Linux
