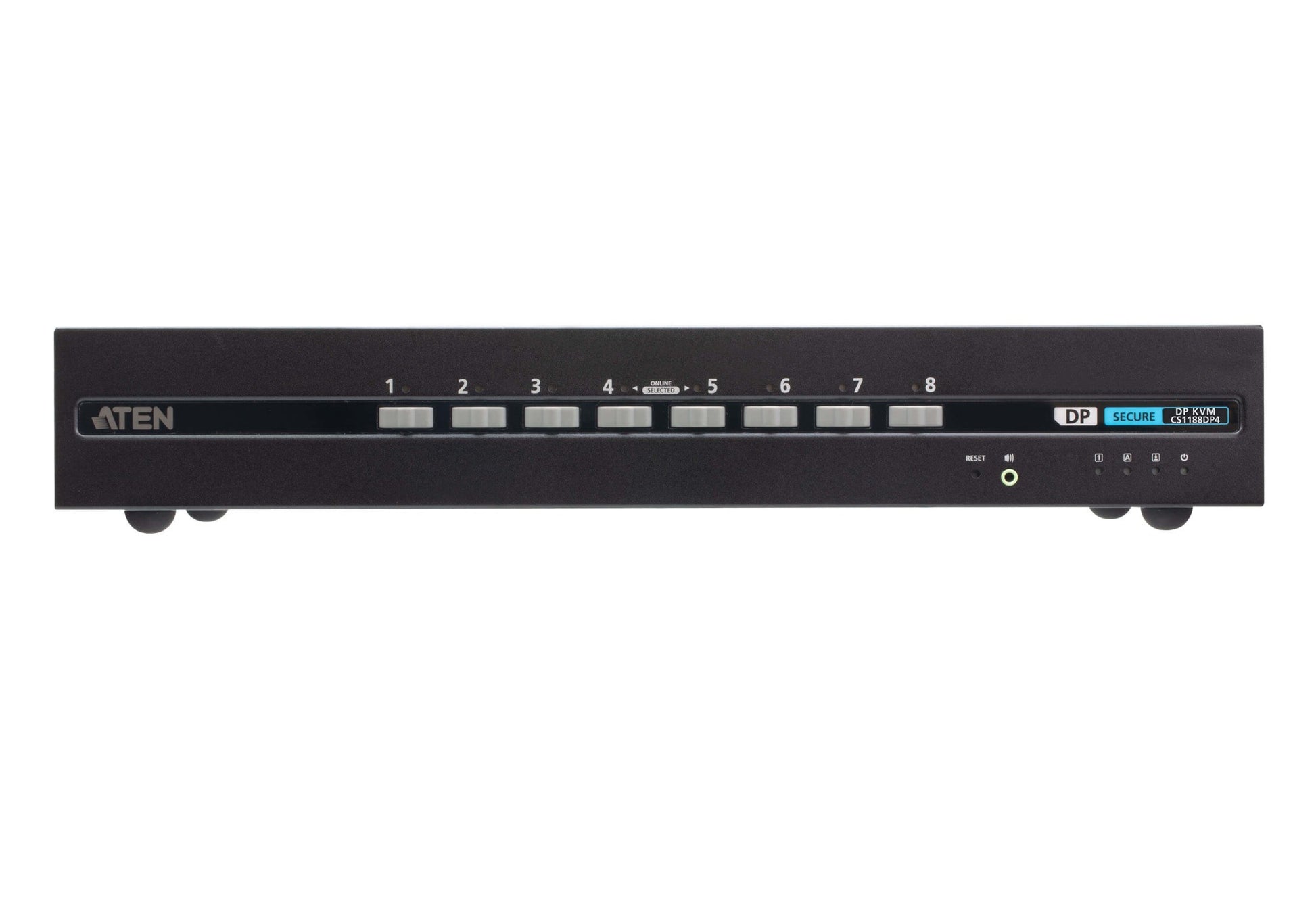

ATEN CS1188DP4-AT-U | CS1188DP Secure KVM Switch, 8-Port DisplayPort, NIAP PP v4.0, USB HID

ATEN CS1188DP4-AT-U | CS1188DP Secure KVM Switch, 8-Port DisplayPort, NIAP PP v4.0, USB HID

SKU:CS1188DP4-AT-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The ATEN CS1188DP secure KVM lets you safely control up to eight DisplayPort computers using a single console with USB keyboard and mouse.. Built to the PSD PP v4.0 protection profile, it enforces strict unidirectional data flow, USB device filtering, and non-reprogrammable firmware for high-assurance isolation across networks of different security levels. Ideal for government, defence, finance and critical infrastructure environments that demand certified security and reliable DP video performance.. Backed by the ATEN manufacturer warranty and expert local support.. In stock and ready to ship from iptrading.com.au order now for fast dispatch.

Features

- Certified PSD PP v4.0 secure switching for high-trust environments
- Consolidates control of 8 DP computers with a single HID console
- HID-only USB enforcement to prevent data exfiltration
- Non-reprogrammable firmware and tamper detection for platform integrity
- Reliable DP video with EDID preservation
- Simple front-panel operation with clear port status
- Flexible desktop or rack-mounted installation

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What security certification does the CS1188DP meet?
A: It is compliant with the NIAP Common Criteria Protection Profile for Peripheral Sharing Device (PSD PP) v4.0, providing high-assurance isolation between connected computers.

Q: Does this model support dual-monitor setups?
A: The CS1188DP is a single-monitor DisplayPort secure KVM. For multi-monitor secure KVM options, contact IP Trading for compatible models.

Q: Which USB devices are allowed through the KVM?
A: It enforces USB HID filtering, allowing only keyboard and mouse. Data-class USB devices such as storage, printers, and cameras are blocked by design.

Q: How do I switch between the eight connected computers?
A: Use the front-panel push buttons with port status LEDs for secure, deterministic channel selection.

Q: What video resolutions are supported over DisplayPort?
A: The switch supports DisplayPort video with EDID handling for stable output. Refer to the ATEN CS1188DP datasheet for the exact resolution and refresh-rate support, or ask IP Trading for confirmation.

Q: Can I purchase this product in Australia from IP Trading?
A: Yes. IP Trading is an Australian supplierrequest a quote or order directly online, and our team can confirm compatibility and lead times.

Technical Specifications

- 8-port secure KVM switch for DisplayPort computers
- Single DisplayPort console video output
- USB HID console for keyboard and mouse
- Computer connections per port: DisplayPort video + USB for HID
- NIAP Common Criteria PSD PP v4.0 compliant design
- Unidirectional data paths and isolated USB channels
- Non-reprogrammable firmware with active tamper detection
- Front-panel push-button port selection with status indicators
- Display Data Channel (DDC) and EDID handling for reliable video
- External power; suitable for desktop or rack-mount deployment
