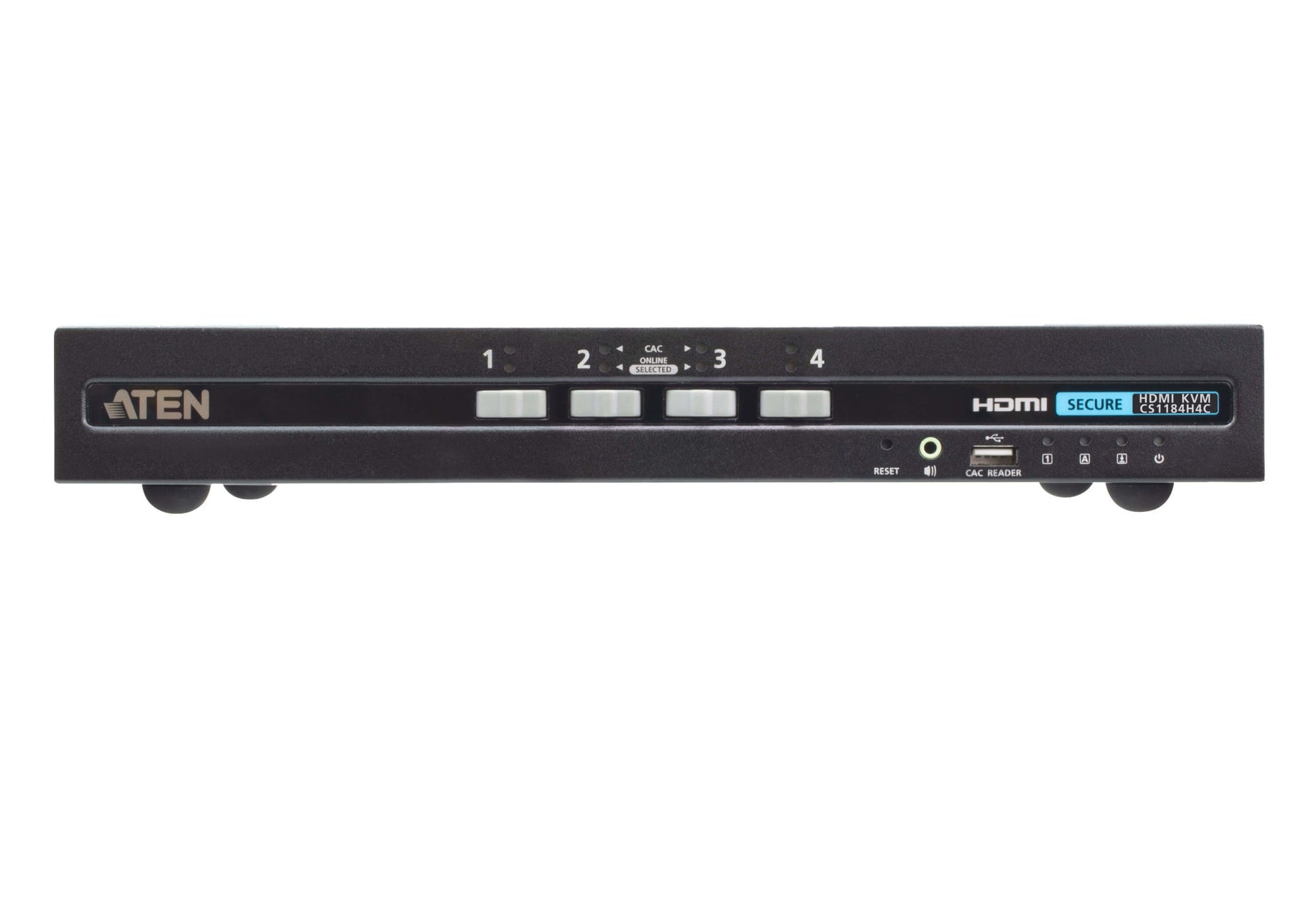

ATEN CS1184H4C-AT-U | CS1184H Secure KVM Switch, 4 x HDMI, CAC, PSD PP v4.0, 4K 30Hz

ATEN CS1184H4C-AT-U | CS1184H Secure KVM Switch, 4 x HDMI, CAC, PSD PP v4.0, 4K 30Hz

SKU:CS1184H4C-AT-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The ATEN CS1184H is a 4-port USB HDMI Secure KVM designed for secure desktop consolidation across multiple networks.. It supports CAC/smart-card authentication and enforces strict port isolation and unidirectional data flow in line with PSD PP v4.0 compliance, while delivering crisp UHD video up to 3840 x 2160 at 30 Hz. Built for mission-critical environments, the CS1184H features a hardened metal chassis, front-panel pushbutton switching, and dedicated keyboard/mouse channels to prevent data leakage.. Backed by an ATEN 2-year manufacturer warranty.. Available now at iptrading.com.au competitive prices and local support.

Features

- Consolidate four isolated systems securely to one console
- PSD PP v4.0 compliant design to mitigate data-leak risks
- Dedicated CAC/smart-card port for secure authentication
- UHD 4K clarity at 30 Hz for modern desktops
- Front-panel switching with clear status indication
- Hardened, tamper-evident construction for peace of mind

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Does the CS1184H support 4K displays?
A: Yes. It supports a single HDMI display up to 3840 x 2160 (4K) at 30 Hz.

Q: Can I use a CAC or smart-card reader with this secure KVM?
A: Yes. It provides a dedicated, isolated USB CAC/smart-card port designed for secure authentication devices.

Q: Which USB peripherals are allowed?
A: The secure KVM permits standard keyboard and mouse on the console ports and a CAC/smart-card reader via the dedicated CAC port. Mass storage and other unsupported USB devices are blocked by design.

Q: Does this model support dual-monitor computers?
A: No. The CS1184H is a single-display HDMI secure KVM. For multi-monitor workflows, select a dual-head secure KVM variant.

Q: Are cables included, or do I need to buy them separately?
A: A power adapter is included. HDMI and USB host cables may be required per computer connection and are commonly purchased separately.

Q: Can I purchase the ATEN CS1184H in Australia from IP Trading?
A: Yes. IP Trading supplies ATEN secure KVMs in Australia with local support and invoicing. Contact IP Trading for pricing and availability.

Technical Specifications

- Computer ports: 4 x HDMI video inputs, 4 x USB Type-B (keyboard/mouse)
- Console ports: 1 x HDMI video output, 2 x USB Type-A (keyboard/mouse)
- CAC/Smart card: 1 x dedicated USB CAC port with data-path isolation
- Max video resolution: 3840 x 2160 (4K) @ 30 Hz, single display
- Security: PSD PP v4.0 compliant secure KVM architecture
- Switching: Front-panel pushbuttons with status LEDs
- Emulation: Dedicated keyboard/mouse emulation for stable switching
- Chassis: Metal desktop enclosure, tamper-evident design
- Firmware: Non-reprogrammable secure firmware (anti-tamper)
- Power: External DC power adapter (included)
