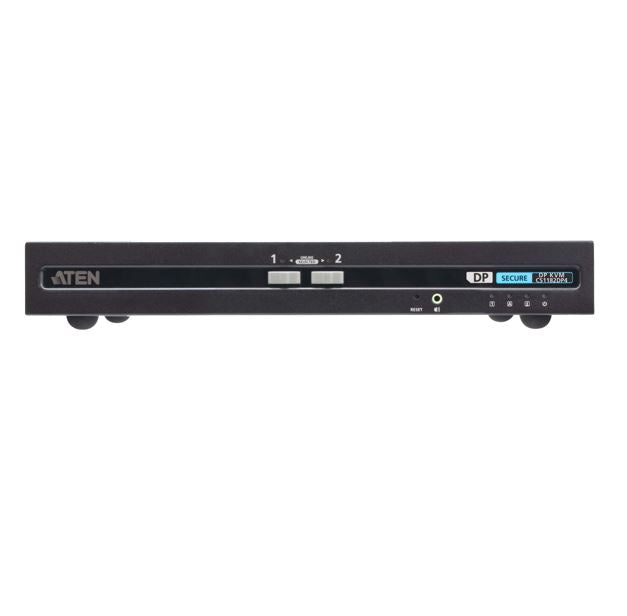

ATEN CS1182DP4-AT-U | CS1182DP Secure KVM Switch, 2-Port DisplayPort, USB HID, PSD PP v4.0

ATEN CS1182DP4-AT-U | CS1182DP Secure KVM Switch, 2-Port DisplayPort, USB HID, PSD PP v4.0

CS1182DP4-AT-U

Stock Status: Enquire

$958.87 AUD
$958.87 AUD
$958.87 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The ATEN CS1182DP is a 2-port USB DisplayPort Secure KVM that lets operators safely switch between two isolated computers while using a single DP monitor and standard keyboard/mouse.. Designed for defence, government, and critical infrastructure, it meets PSD PP v4.0 requirements for strict port isolation and data protection. Built for reliability with a metal desktop chassis and hardware-based switching, it delivers crisp DP video and driverless operation for rapid deployment.. Backed by ATEN's limited warranty and local support from IP Trading.. iptrading.com.au your local source for enterprise-grade networking solutions.

Features

- Certified security: PSD PP v4.0 compliance for assured data isolation
- Two-system control: Operate 2 computers with one DP monitor and HID set
- Driverless deployment: Works with standard OS HID drivers
- Clear, reliable operation: Front-panel switching with status LEDs
- Enterprise build: Metal chassis designed for secure environments

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Type: 2-port USB DisplayPort Secure KVM switch (PSD PP v4.0 compliant)
- Computer connections: 2 x DisplayPort inputs; 2 x USB Type-B (host) for HID
- Console connections: 1 x DisplayPort output; 2 x USB Type-A (keyboard/mouse, HID-only)
- Video: High-resolution DisplayPort output (up to 3840 x 2160 dependent on endpoints)
- Switching method: Front-panel port selectors with clear status indicators
- USB policy: HID-only; non-HID USB devices are blocked by design
- Enclosure: Robust metal desktop chassis
- Power: External DC power (adapter included)
- Compliance: PSD PP v4.0 Peripheral Sharing Device protection profile

FAQs

Q: What makes the CS1182DP a secure KVM?
A: It is a hardware-based KVM that enforces strict isolation between two connected computers and the shared peripherals. It is compliant with the PSD PP v4.0 Common Criteria Protection Profile for Peripheral Sharing Devices.

Q: Does it support high-resolution DisplayPort monitors?
A: Yes. It supports high-resolution DisplayPort video, up to 4K UHD (3840 x 2160), subject to the capabilities of your computers and display.

Q: Which USB peripherals are allowed?
A: This model supports standard HID keyboard and mouse. Non-HID USB devices such as storage or cameras are blocked by design to maintain security.

Q: Does this model support smart card/CAC readers?
A: This specific model does not include a dedicated CAC port. If you need CAC/Smart Card support, select a variant that explicitly lists CAC capability.

Q: How do I switch between computers?
A: Use the front-panel port selectors for deterministic, hardware-based switching with visual status indicators.

Q: Can I purchase this from IP Trading in Australia?
A: Yes. IP Trading can supply the ATEN CS1182DP in Australia with tax invoice and local support. Contact the team or order via iptrading.com.au.
