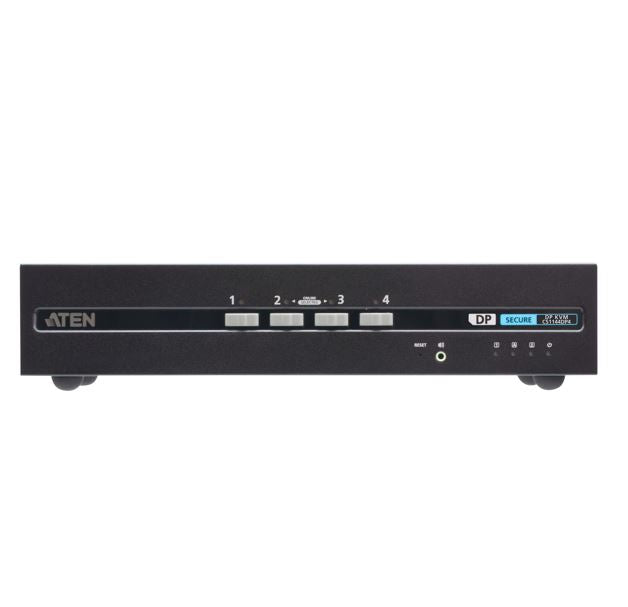

ATEN CS1144DP4-AT-U | CS1144DP Dual DP Secure KVM, 4 x Computers, 4K60, USB HID

ATEN CS1144DP4-AT-U | CS1144DP Dual DP Secure KVM, 4 x Computers, 4K60, USB HID

CS1144DP4-AT-U

Stock Status: Enquire

$2,142.91 AUD
$2,142.91 AUD
$2,142.91 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The CS1144DP is a 4-port, dual-display DisplayPort secure desktop KVM designed for environments that require strict data separation across up to four computers.. It delivers crisp 4K60 video per screen and HID-only USB for keyboard and mouse, providing a seamless user experience across two monitors. Engineered to NIAP PSD PP v4.0 requirements, it enforces strong port isolation, peripheral filtering, and trusted switching via front-panel buttons.. Backed by the manufacturer's warranty for peace of mind.. Available now at iptrading.com.au competitive prices and local support.

Features

- Dual 4K60 DisplayPort for clear, productive multi-monitor workflows
- NIAP PSD PP v4.0 compliance for rigorous cross-domain isolation
- HID-only USB filtering blocks unauthorised peripherals
- Front-panel switching for secure, reliable source selection
- EDID emulation ensures stable video on boot and wake
- Robust metal chassis for reliable desktop deployment

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Type: 4-port secure desktop KVM switch
- Video: Dual DisplayPort per computer (DP 1.2)
- Computer connections: 4 x USB (HID) + 8 x DisplayPort inputs (dual-display)
- Console connections: 2 x DisplayPort outputs; 2 x USB Type-A for keyboard and mouse
- Max resolution: Up to 3840 x 2160 @ 60 Hz per display
- Security: NIAP Protection Profile for Peripheral Sharing Device (PSD PP) v4.0 compliant
- USB policy: HID-only (non-HID USB devices are blocked)
- Switching: Front-panel pushbuttons with port indicators
- Video handling: EDID emulation for stable boot and display handshakes
- Enclosure: Desktop metal chassis
- Power: External DC adapter (included with unit)

FAQs

Q: Does this KVM support dual 4K monitors?
A: Yes. It supports dual DisplayPort outputs on the console with up to 3840 x 2160 at 60 Hz per display, when paired with compatible sources and cables.

Q: Can I connect USB storage or printers to the KVM?
A: No. As a secure PP v4.0 KVM, it enforces HID-only USB, allowing standard wired keyboard and mouse. Non-HID peripherals such as storage, printers, or smart devices are blocked.

Q: How do I switch between computers?
A: Use the front-panel pushbuttons. Secure KVMs rely on physical controls to ensure verified, tamper-resistant source selection.

Q: Is it compatible with Windows, macOS, and Linux?
A: Yes. It is operating system agnostic and works with most systems that support standard USB HID keyboards/mice and DisplayPort video.

Q: Is audio supported on this secure KVM?
A: Secure KVMs prioritise data isolation; microphone and non-essential audio paths are typically disabled or restricted. Refer to the product manual for exact audio behaviour in your deployment.

Q: Can I buy this in Australia from IP Trading?
A: Yes. IP Trading supplies this model in Australia with GST invoicing and local support. You can order directly at iptrading.com.au.
