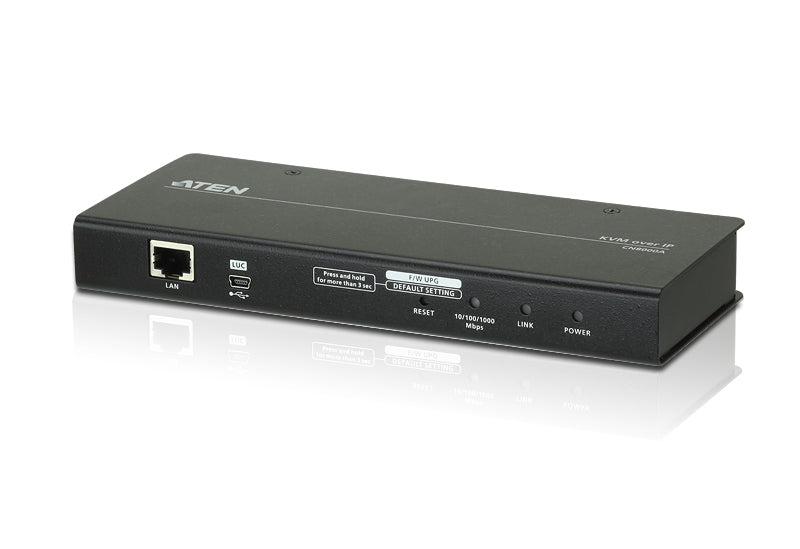

ATEN CN8000A-AT-U | CN8000A KVM over IP, 1-Port VGA, Virtual Media, Serial, 1GbE

ATEN CN8000A-AT-U | CN8000A KVM over IP, 1-Port VGA, Virtual Media, Serial, 1GbE

CN8000A-AT-U

Stock Status: Enquire

$1,051.22 AUD
$1,051.22 AUD
$1,051.22 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The CN8000A is a single-port KVM over IP bridge that provides secure, BIOS-level remote access to a server or to the console of an existing VGA KVM switch.. It supports virtual media for remote OS installation and file transfers, plus an RS-232 port for serial console access. Designed for dependable remote administration with industry-standard encryption and broad OS compatibility, it's a compact way to add IP control to legacy VGA environments.. Backed by the ATEN manufacturer warranty.. Available now at iptrading.com.au competitive prices and local support.

Features

Add IP control to a single Server or existing VGA KVM
- virtual media for remote OS installs and file transfer
- Secure encrypted access for compliance and peace of mind
- Serial console port for Network and infrastructure devices
- Compact design for easy deployment in any rack or shelf
- Gigabit Ethernet Ensures Responsive remote sessions

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: CN8000A
- Type: Single-port KVM over IP bridge
- Video interface: VGA (HD-15)
- Max video resolution: up to 1920 x 1200 @ 60 Hz
- Target interface support: USB or PS/2 keyboard/mouse (via appropriate adapters)
- Virtual Media: USB 2.0 virtual media over IP
- Serial console: 1 x RS-232
- Network: 1 x 10/100/1000 Mbps Ethernet (RJ-45)
- Security: Encrypted remote access using industry-standard protocols
- Form factor: Compact desktop/0U utility
- Power: External power adapter (included)

FAQs

Q: What does the CN8000A do?
A: It adds secure IP-based, BIOS-level remote access to a single server or to the console ports of an existing VGA KVM switch, enabling keyboard, video, mouse and serial control over the network.

Q: Does it support virtual media for remote installs?
A: Yes. The CN8000A supports USB 2.0 virtual media so you can mount ISO images or USB storage remotely for OS installation, updates and file transfers.

Q: What video and console interfaces are supported?
A: Video is VGA (HD-15) with resolutions up to 1920 x 1200 @ 60 Hz. The target can use USB or PS/2 keyboard/mouse via the appropriate adapter cables.

Q: Can it integrate with my existing VGA KVM switch?
A: Yes. It is designed to connect to the console ports of many VGA KVM switches to provide secure remote IP access to the attached servers.

Q: Is there a serial console option?
A: Yes. An RS-232 port allows secure remote access to serial-configurable devices such as servers, network gear or power controllers.

Q: How do I buy this in Australia from IP Trading?
A: Order directly from iptrading.com.au by searching for CN8000A-AT-U, or contact IP Trading for a quote and local stock availability. Australian GST invoices and local support are provided.
