ATEN CL5716M-ATA-AU | CL5716M LCD KVM Switch, 17" Single Rail, 16 x VGA PS/2-USB, 1U

ATEN CL5716M-ATA-AU | CL5716M LCD KVM Switch, 17" Single Rail, 16 x VGA PS/2-USB, 1U

SKU:CL5716M-ATA-AU

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

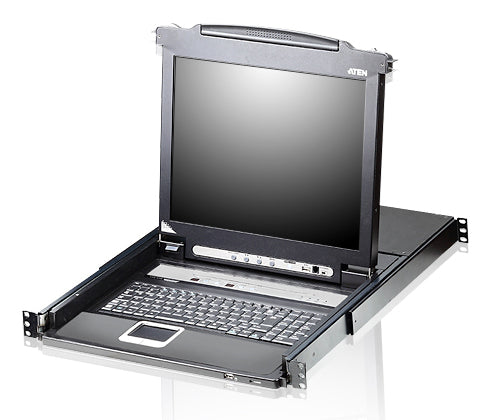

The CL5716M is a single€‘rail LCD KVM switch that integrates a 17" TFT LCD, keyboard and touchpad in a 1U rack drawer, providing local access to 16 servers.. It supports VGA video and both PS/2 and USB server interfaces via compatible KVM cables, with crisp 1280 x 1024 on the built€‘in panel and intuitive OSD control. Designed for scalable management, it can cascade with ATEN CS1308/CS1316 to control up to 256 computers, includes firmware upgrade support, and provides a rear local console option.. The ATA€‘AU variant includes an AU power cord and is backed by ATEN€™s 3€‘year manufacturer warranty.. In stock and ready to ship from iptrading.com.au order now for fast dispatch.

Features

- Space€‘saving 1U single€‘rail LCD console with integrated keyboard and touchpad
- Manage 16 servers from one console; scale up to 256 via cascade
- Flexible PS/2 or USB server support with VGA video
- Sharp 17" LCD at 1280 x 1024 for clear rack€‘side administration
- On€‘screen display and hotkeys for fast, intuitive switching
- Firmware€‘upgradeable for long€‘term maintainability
- ATA€‘AU regional variant with AU power cord and 3€‘year ATEN warranty

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What server interfaces are supported?
A: The CL5716M supports VGA video with either PS/2 or USB keyboard/mouse interfaces using the appropriate ATEN combo KVM cables.

Q: How many servers can I control and can it be expanded?
A: Natively it manages 16 servers; by cascading with ATEN CS1308/CS1316 switches you can control up to 256 computers from the same console.

Q: What rack space does it require?
A: It is a single€‘rail design that fits into 1U of standard 19" rack space.

Q: What display resolutions are supported?
A: The integrated 17" LCD runs at 1280 x 1024 native. The rear external console port supports up to 2048 x 1536 via VGA.

Q: Is the ATA€‘AU model suitable for Australia?
A: Yes. The ATA€‘AU variant includes an AU power cord and is intended for use in Australia.

Q: Can I purchase this from IP Trading in Australia?
A: Yes. Order directly from IP Trading; the CL5716M€‘ATA€‘AU is stocked locally and ships Australia€‘wide with fast dispatch.

Technical Specifications

- Product type: 16€‘port single€‘rail LCD KVM switch
- Integrated console: 17" TFT LCD, keyboard and touchpad
- LCD native resolution: 1280 x 1024
- KVM ports: 16 x VGA KVM ports supporting PS/2 or USB keyboard/mouse via combo cables
- Local access: built€‘in LCD console
- External console (rear): VGA video + USB/PS/2 keyboard/mouse
- Cascade support: up to 256 computers with ATEN CS1308/CS1316
- Rack height: 1U, 19" rack€‘mountable
- Mechanism: single€‘rail slide€‘out with flip€‘up LCD
- Video: VGA; external console up to 2048 x 1536 (DDC2B)
- Firmware upgradeable
- Power input: AC 100-240 V, 50/60 Hz (IEC C14 inlet)
- Colour: Black
