ATEN

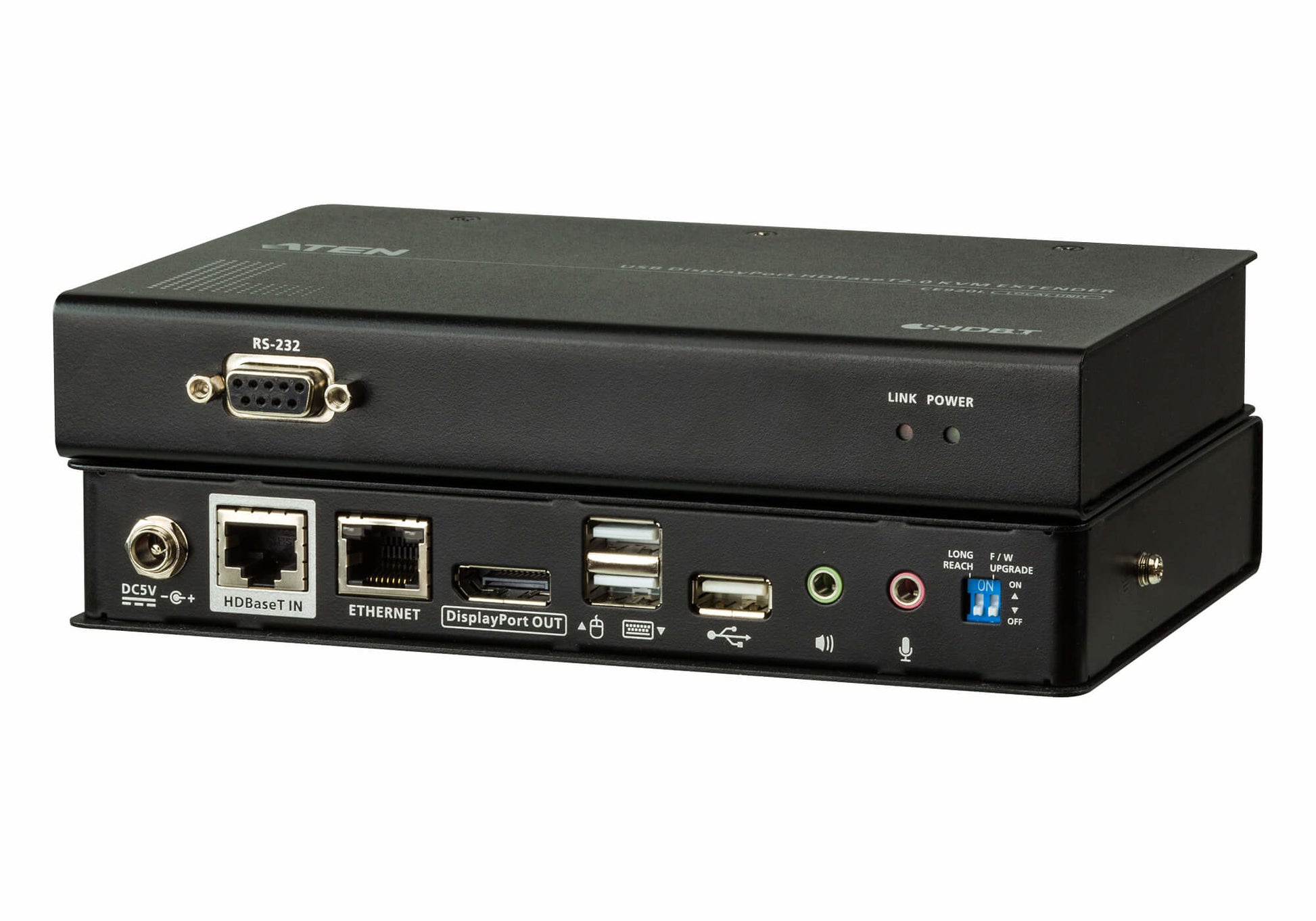

ATEN CE920-ATA-U | CE920 | 4K DP HDBaseT 2.0 KVM Extender, USB 2.0, PoC, 100 m

ATEN CE920-ATA-U | CE920 | 4K DP HDBaseT 2.0 KVM Extender, USB 2.0, PoC, 100 m

SKU:CE920-ATA-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The ATEN CE920-ATA-U is a DisplayPort HDBaseT 2.0 KVM extender kit that carries 4K video, USB 2.0 peripherals, RS-232 and Ethernet over a single Cat 6a/7 cable.. The included transmitter and receiver enable reliable remote workstation control up to 100 m with Power over Cable for simplified deployment. Long Reach mode pushes 1080p signals to 150 m, while EDID pass-through ensures display compatibility and robust ESD/surge protection safeguards your installation.. Backed by an ATEN manufacturer warranty and local support.. Order direct from iptrading.com.au Australian-owned and operated since 2001.

Features

- Single-cable 4K extension for video, USB, RS-232 and Ethernet
- PoC simplifies installation with one power source
- Long Reach mode extends 1080p control to 150 m
- EDID pass-through ensures reliable display handshakes
- Robust ESD/surge protection for demanding environments
- Flexible desktop, wall or rack mounting

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What video resolution and distance does the CE920 support?
A: It extends up to 3840 x 2160 (4K) at 30 Hz to 100 m over Cat 6a/7. In Long Reach mode, it supports 1920 x 1080 up to 150 m.

Q: Do I need power at both the transmitter and receiver?
A: No. With Power over Cable (PoC), a single power adapter connected to either the Tx or Rx powers both ends.

Q: Which cable type should I use for best performance?
A: Use high-quality Cat 6a or Cat 7 shielded twisted pair for the HDBaseT link to achieve the specified distances and performance.

Q: What USB devices are supported over the extender?
A: It supports USB 2.0 peripherals including keyboards, mice and compatible full-speed devices. Device support may vary with high-bandwidth or isochronous peripherals.

Q: Does the CE920 pass through RS-232 and Ethernet?
A: Yes. It provides RS-232 serial pass-through and Ethernet pass-through alongside video and USB.

Q: Can I purchase the CE920 in Australia from IP Trading?
A: Yes. IP Trading supplies genuine ATEN products with Australian tax invoices and local support, with fast nationwide shipping.

Technical Specifications

- KVM extender kit: transmitter (Tx) and receiver (Rx) included
- Video interface: DisplayPort (DP 1.2)
- Maximum resolution/distance: 3840 x 2160 @ 30 Hz up to 100 m (Cat 6a/7)
- Long Reach mode: 1920 x 1080 up to 150 m
- HDBaseT 2.0 over a single RJ-45 link
- USB 2.0 peripheral extension (keyboard/mouse and compatible USB devices)
- RS-232 serial pass-through
- Ethernet pass-through
- Power over Cable (PoC) power one end only (Tx or Rx)
- EDID pass-through for display compatibility
- ESD and surge protection
- Recommended cable: Cat 6a/7 shielded twisted pair
- Mounting options: desktop, wall, or rack mountable
