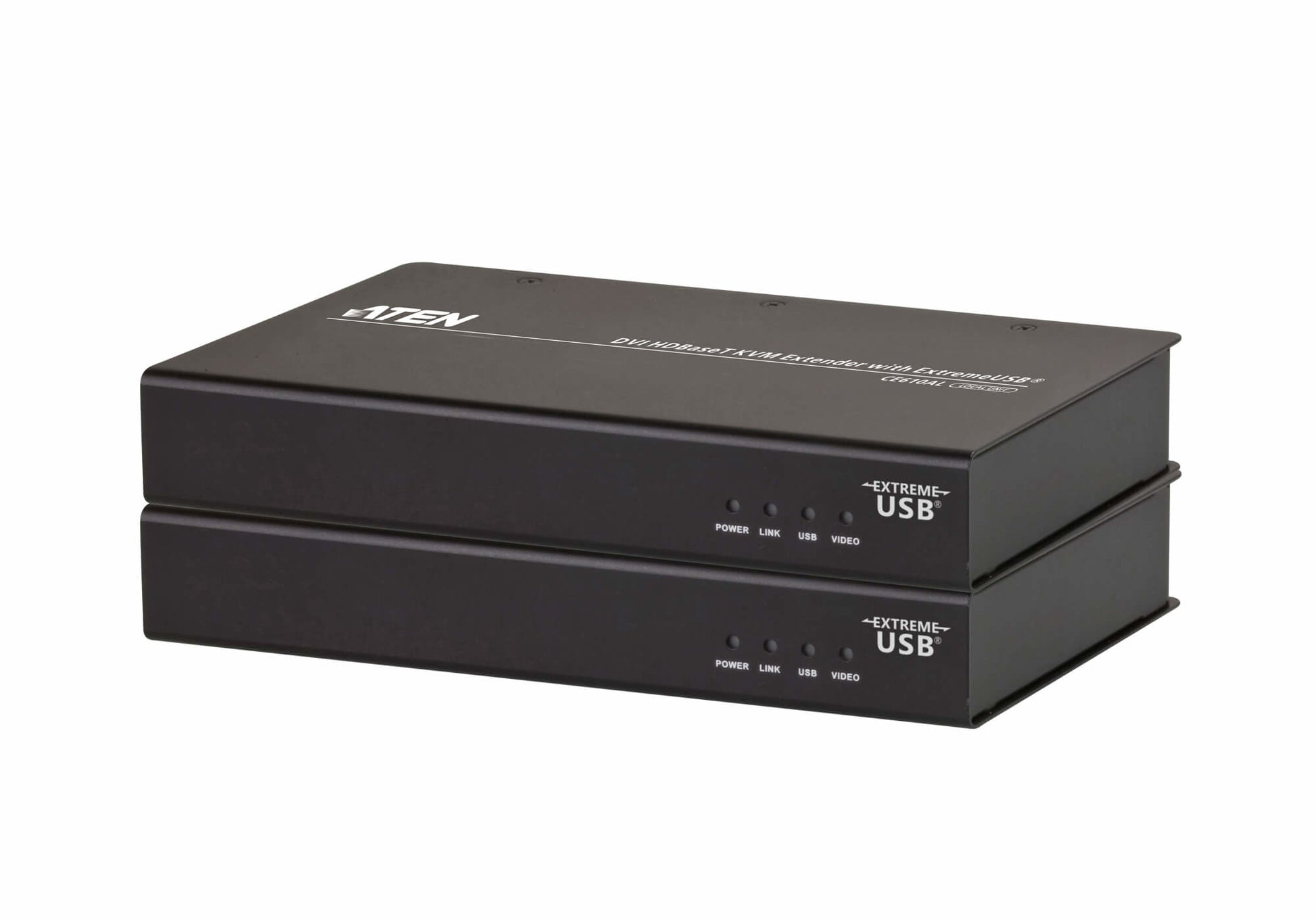

ATEN CE610A-AT-U | CE610A DVI HDBaseT KVM Extender, 1920 x 1200 @100 m, USB 2.0

ATEN CE610A-AT-U | CE610A DVI HDBaseT KVM Extender, 1920 x 1200 @100 m, USB 2.0

SKU:CE610A-AT-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Extend a single-link DVI display and USB 2.0 peripherals over a single Cat5e/6 cable with the ATEN CE610A. HDBaseT delivers crisp WUXGA video up to 1920 x 1200 at distances up to 100 metres, while ExtremeUSB provides transparent, driverless USB extension. Ideal for secure workspaces, control rooms and classrooms, the CE610A offers a 3€‘port USB 2.0 hub at the remote console for keyboard/mouse and peripherals. Backed by the manufacturer's warranty and designed for reliable, plug€‘and€‘play deployment. Order now at iptrading.com.au trusted by Australian IT professionals.

Features

- Extend DVI video and USB 2.0 up to 100 m over a single cable
- Crisp WUXGA 1920 x 1200 video for clear, detailed visuals
- 3€‘port USB 2.0 hub at the remote console for peripherals
- ExtremeUSB ensures driverless, plug€‘and€‘play deployment
- Reliable HDBaseT link resists interference for stable performance
- Rugged metal enclosures with simple mount options for flexible installs

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What video resolution and distance does the CE610A support?
A: It supports up to 1920 x 1200 (WUXGA) over distances up to 100 metres using a single Cat5e/6/6a cable via HDBaseT.

Q: Which USB devices can I use with this extender?
A: The CE610A extends USB 2.0 transparently (ExtremeUSB), supporting keyboard/mouse, flash drives, printers, touchscreens, smartcard readers and similar peripherals. For high€‘draw devices, use an externally powered USB device or hub.

Q: Do I need drivers or special software to use it?
A: No. ExtremeUSB provides true plug€‘and€‘play operation with Windows, macOS and Linuxno drivers or software required.

Q: What cables are required for installation?
A: Use one solid€‘core Cat5e/6/6a cable up to 100 m for the HDBaseT link, a DVI cable between the remote unit and display, and a USB A€‘to€‘B cable from the local unit to the host computer. Power adapters are included.

Q: Does the CE610A carry audio over DVI?
A: No. DVI is video€‘only on this model. For audio, use a separate audio extension or local audio connection.

Q: Can I purchase the CE610A in Australia from IP Trading?
A: Yes. IP Trading supplies ATEN in Australia. Order online or contact their team for local stock, pricing and support.

Technical Specifications

- Interface: Single-link DVI-D video and USB 2.0 extension
- Extension distance: Up to 100 m over a single Cat5e/6/6a cable (HDBaseT)
- Maximum resolution: 1920 x 1200 (WUXGA)
- USB ports (remote): 3 x USB 2.0 Type-A (ExtremeUSB transparent extension)
- Host connection (local): 1 x USB 2.0 Type-B upstream
- Video connectors: 1 x DVI-D (local unit to host), 1 x DVI-D (remote unit to display)
- Link port: 1 x RJ-45 HDBaseT
- ExtremeUSB: Driver-free operation; works with standard USB HID and peripherals
- EDID handling: Pass-through for optimal display compatibility
- Enclosure: Metal housings with mounting brackets
- Power: External DC power adapters (included)
