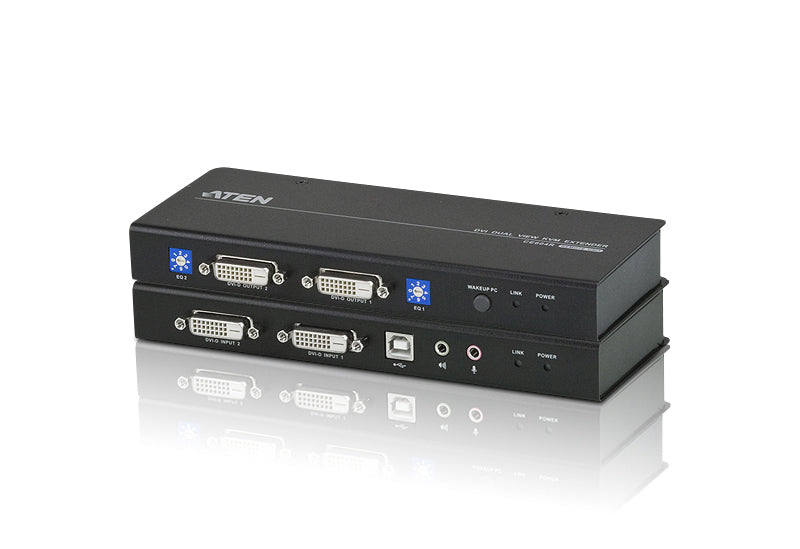

ATEN CE604-AT-U | CE600 Series Switch, CE604 Dual-View DVI KVM Extender, Audio/RS-232, EDID, 60 m Cat5e

ATEN CE604-AT-U | CE600 Series Switch, CE604 Dual-View DVI KVM Extender, Audio/RS-232, EDID, 60 m Cat5e

SKU:CE604-AT-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The ATEN CE604 is a dual-view DVI KVM extender that carries video, USB keyboard/mouse, stereo audio and RS-232 control over Cat5e/6 cabling.. It€™s designed for extending a workstation from the host up to 60 m while preserving crisp DVI video and responsive control, with EDID mode to ensure reliable display handshakes. Backed by ATEN manufacturer warranty, the CE604 supports Windows/Mac/Sun keyboard and mouse mappings for mixed environments and includes both transmitter and receiver units for easy deployment.. Order direct from iptrading.com.au Australian-owned and operated since 2001.

Features

- Extend dual DVI displays, USB KB/Mouse, audio and RS-232 over a single cable run
- EDID mode ensures consistent, reliable video handshakes on power-up
- Up to 60 m reach over cost-effective Cat5e/6 cabling
- Sun/Mac keyboard/mouse mapping for heterogeneous environments
- Plug-and-play setup with dedicated transmitter and receiver units

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What does dual-view mean on the CE604?
A: Dual-view allows you to extend two DVI video outputs from a single computer to a remote console, enabling two monitors at the remote end.

Q: How far can I extend the console with the CE604?
A: Up to 60 metres over Cat5e/6 cabling, with resolutions up to 1920 x 1200 at 60 Hz.

Q: Does the CE604 carry audio and serial control?
A: Yes. It forwards stereo audio via 3.5 mm jacks and provides an RS-232 channel for device control or integration.

Q: Is it compatible with Mac or Sun keyboards and mice?
A: Yes. The CE604 supports Sun/Mac keyboard and mouse mappings for mixed operating environments.

Q: What cabling do I need between the transmitter and receiver?
A: Standard Cat5e or Cat6 twisted-pair cable is used to connect the TX and RX units.

Q: Can I buy the CE604 in Australia from IP Trading?
A: Yes. IP Trading supplies the CE604 locally with tax invoice and Australian support. Order online or contact the team for availability and lead times.

Technical Specifications

- Product type: Dual-view DVI KVM extender (TX/RX pair)
- Video: 2 x DVI-D channels (dual-view)
- Max extension distance: up to 60 m over Cat5e/6
- Max resolution: up to 1920 x 1200 @ 60 Hz (single-link DVI)
- Console I/O: USB keyboard/mouse
- Audio: stereo input/output via 3.5 mm jacks
- Serial: RS-232 pass-through for control/automation
- EDID mode for reliable display detection and optimal video
- Sun/Mac keyboard/mouse mapping support
- Cat5e/6 cabling between transmitter and receiver
- Plug-and-play hardware; no software required
