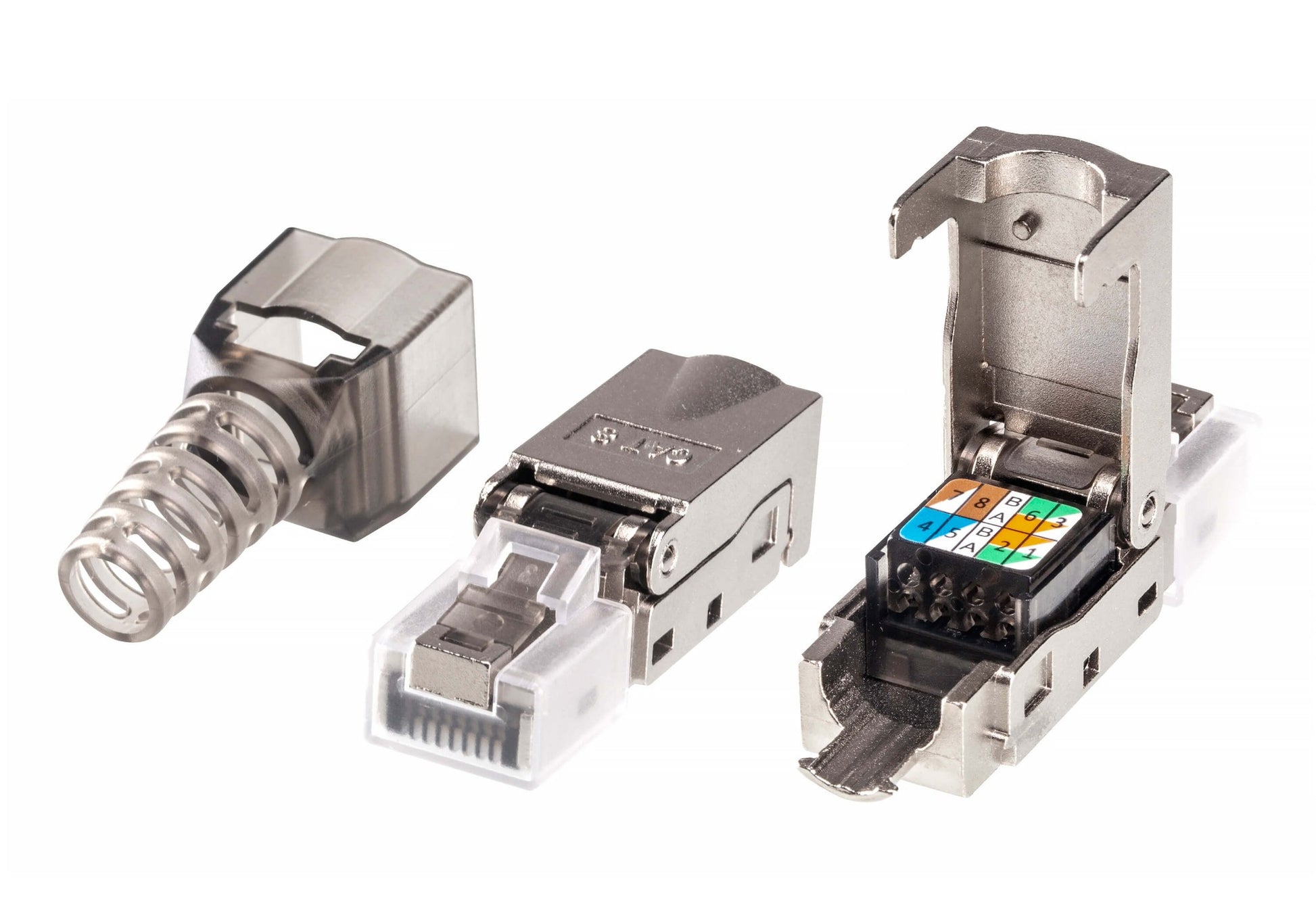

• Silver metallic aten 2a-245g cat 6a rj45 ethernet connector with clear housing and color-coded wire terminals visible inside
1 1

ATEN

ATEN 2A-245G | Cat 6A RJ-45 Metal-Shielded Connector, 10G+, Tool-Free, 10-Pack

ATEN 2A-245G | Cat 6A RJ-45 Metal-Shielded Connector, 10G+, Tool-Free, 10-Pack

2A-245G

Stock Status: Enquire

$99.94 AUD
$99.94 AUD
$99.94 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The ATEN 2A-245G is a Cat 6A metal-shielded RJ-45 connector designed for professional AV and enterprise networking installations requiring reliable 10G+ data transfer. Its die-cast zinc alloy shielded housing provides robust EMI/crosstalk protection, while colour-coded cable holders and a screw-on strain relief boot enable tool-free, re-installable terminations — no crimping required. Compatible with 22–26 AWG solid or stranded Cat 6A to Cat 8 cables, it also supports PoE and PoH deployments.

Built to FCC Part 68, RoHS, and REACH compliance standards, the 2A-245G features gold-plated phosphor bronze contacts rated for over 750 mating cycles and a dielectric withstanding voltage of 1000V. An IP20 dust cover is included for storage protection, and the connector is specifically recommended for use with the ATEN 2L-29330 Cat 6A HDBaseT cable. Supplied in a pack of 10. Order today from iptrading.com.au — your local source for enterprise-grade networking solutions.

Features

- Metal-shielded die-cast housing protects against electromagnetic crosstalk and external interference
- Tool-free assembly — colour-coded cable holders enable quick, accurate termination without crimping tools
- Re-installable design allows the connector to be removed and reused without performance loss
- Compatible with PoE and PoH powered installations
- Screw-on plastic strain relief boot prevents cable bending stress at the termination point
- IP20 dust cover included for protection during storage and transit
- Recommended for use with ATEN 2L-29330 Cat 6A HDBaseT cables
- Supports Cat 6A to Cat 8 solid or stranded cables, 22–26 AWG
- Gold-plated phosphor bronze contacts rated for 750+ mating cycles
- RoHS and REACH compliant for environmentally responsible installations

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Standard: Cat 6A RJ-45 Metal-Shielded Connector
- Data Rate: Supports over 10G
- Compatible Cable: Cat 6A to Cat 8, 22–26 AWG solid or stranded
- DC Resistance: Max 0.1 Ω
- Insulation Resistance: 500 MΩ
- Contact Resistance: 20 mΩ
- DC Current Rating: 1.5 A
- Dielectric Withstanding Voltage: 1000V
- Mating Cycles: 750+
- Housing: ABS + PC, UL94V-0 flame rated
- Contact: 0.35mm phosphor bronze, gold-plated over nickel
- Shield: Zinc alloy, nickel plated
- Operating Temperature: -40°C to 60°C
- Dimensions (L x W x H): 4.56 x 1.38 x 1.25 cm
- Weight: 0.01 kg per connector
- Pack Contents: 10 x connectors, IP20 dust covers included
- Certifications: FCC Part 68, RoHS, REACH

FAQs

Q: Do I need a crimping tool to terminate the ATEN 2A-245G connector?
A: No. The 2A-245G features a tool-free, re-installable design with colour-coded cable holders for quick assembly. A screw-on plastic strain relief boot is also included — no special crimping tools are required.

Q: What cable types and gauges are compatible with the 2A-245G?
A: The connector supports both solid and stranded Cat 6A to Cat 8 cables with wire gauges ranging from 22 to 26 AWG. It is specifically recommended for use with the ATEN 2L-29330 Cat 6A HDBaseT cable.

Q: Does the 2A-245G support PoE or PoH applications?
A: Yes. The connector is rated for a DC current of 1.5 A and is compatible with both PoE and PoH (Power over HDBaseT) installations, making it suitable for AV extenders and powered network devices.

Q: Can the connector be reused if I need to re-terminate a cable?
A: Yes. The 2A-245G features a re-installable design, allowing it to be removed and re-used without degrading electrical or mechanical performance, ideal for professional installations where adjustments may be needed.

Q: Is the 2A-245G compliant with Australian and international standards?
A: Yes. The connector is FCC Part 68 certified and compliant with RoHS and REACH environmental directives, making it suitable for regulated commercial and enterprise deployments in Australia and internationally.

Q: Can I purchase the ATEN 2A-245G in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is a local Australian B2B reseller stocking ATEN networking accessories including the 2A-245G. The connector is available in packs of 10, with local support and competitive pricing for business customers.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
