Aruba R7J49A | AP-615 Wi-Fi 6E Tri-Band Access Point, RW, Internal Antennas

Name: Aruba R7J49A | AP-615 Wi-Fi 6E Tri-Band Access Point, RW, Internal Antennas
Brand: Aruba
SKU: R7J49A
Price: 798.01 AUD
Availability: InStock

Authorised Aruba Partner

SKU:R7J49A

In stock:86

$798.01 inc. GST

$725.46 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

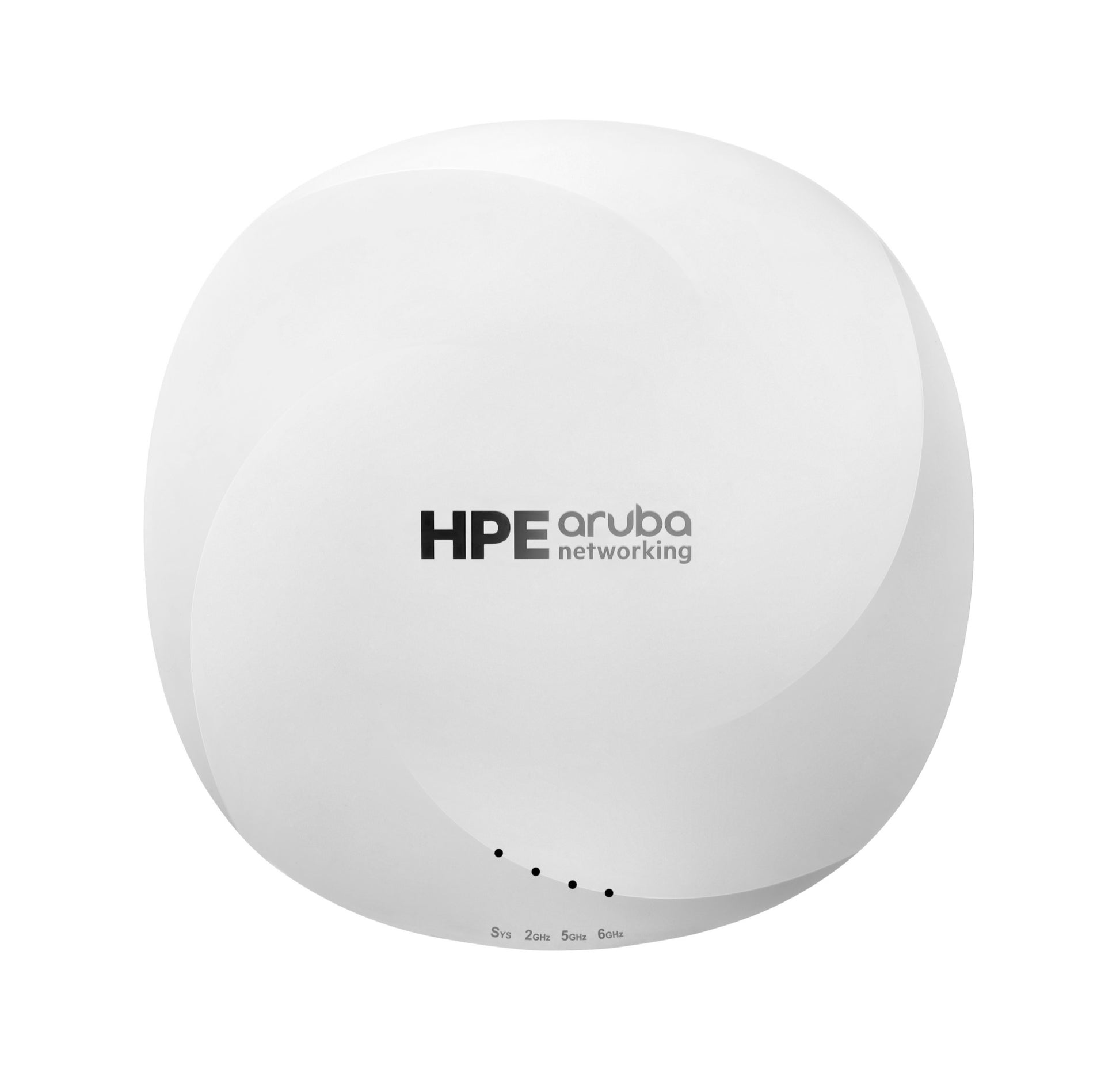

The Aruba AP-615 (R7J49A) is an indoor campus Wi-Fi 6E access point from the Aruba 610 Series, built on a dual-radio, tri-band 2x2:2 MIMO design. Adding the 6 GHz band to 2.4 GHz and 5 GHz delivers up to 3.6 Gbps combined peak data rate, with up to seven 160 MHz channels in 6 GHz for high-capacity office and campus deployments. This RW regulatory domain model is intended for all regions except the US, Israel, Japan and Egypt, and uses integrated downtilt omni-directional antennas optimised for horizontal ceiling mounting.

The AP-615 includes a built-in GPS receiver and Fine Time Measurement (FTM) so access points can be located automatically, plus 2 x 1000/2.5G RJ45 ports and a USB 2.0 Type-A port. It is PoE powered, UL2043 plenum rated and ships with the mounting bracket pre-installed on the back of the unit. Management is available through Aruba Central or AirWave.

Features

- Wi-Fi 6E support unlocks the 6 GHz band, adding up to 1200 MHz of capacity
- Built-in GPS receiver and Fine Time Measurement (FTM) let access points be located automatically
- Cost-effective enterprise Wi-Fi 6E with wider channels and reduced power consumption
- Internal antennas are optimised for horizontal ceiling mounting
- Managed via Aruba Central or AirWave

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 802.11ax Wi-Fi 6E, dual-radio tri-band (2.4/5/6 GHz) 2x2:2 MIMO
- Up to 3.6 Gbps combined peak data rate
- Integrated downtilt omni-directional antennas: 2.8 dBi (2.4 GHz), 4.5 dBi (5 GHz), 4.5 dBi (6 GHz)
- Up to seven 160 MHz channels in 6 GHz
- Ports: 1 x USB 2.0 Type-A, 2 x 1000/2.5G RJ45
- PoE powered, Ethernet Alliance PoE PD Class 4 certified
- Indoor use, mounting bracket pre-installed on the back of the AP
- Built-in GPS receiver and Fine Time Measurement (FTM)
- Regulatory domain: RW (all regions except US, Israel, Japan and Egypt)
- UL2043 plenum rated; CE, RED, FCC/ISED certifications

FAQs

Q: Does the Aruba AP-615 support the 6 GHz band?
A: Yes. The AP-615 is a tri-band Wi-Fi 6E access point covering 2.4 GHz, 5 GHz and 6 GHz, with support for up to seven 160 MHz channels in 6 GHz.

Q: What does the RW regulatory domain mean for R7J49A?
A: RW stands for rest of world. This model is intended for all regions except the US, Israel, Japan and Egypt.

Q: Does the AP-615 have internal or external antennas?
A: It uses integrated downtilt omni-directional antennas, optimised for horizontal ceiling mounting, so no external antennas are required.

Q: How is the AP-615 powered?
A: It is powered over Ethernet (PoE) and is Ethernet Alliance PoE PD Class 4 certified, so a compatible PoE switch or injector is needed.

Q: Can the AP-615 be managed from the cloud?
A: Yes. It can be managed through Aruba Central or AirWave.

Q: Is the AP-615 suitable for outdoor deployment?
A: No. The AP-615 is designed for indoor campus use, and the mounting bracket comes pre-installed on the back of the unit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
