Arista OEM-AP-C250 | C-250 Tri-Radio Wi-Fi 6 Access Point, 8x8 5GHz, Dual 2.5GbE

Arista OEM-AP-C250 | C-250 Tri-Radio Wi-Fi 6 Access Point, 8x8 5GHz, Dual 2.5GbE

Authorised Arista Partner

SKU:OEM-AP-C250

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

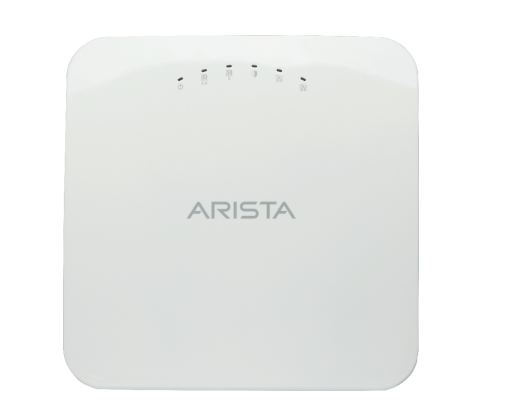

The Arista C-250 is a tri-radio Wi-Fi 6 (802.11ax) indoor access point built for dense enterprise deployments. It combines an 8x8:8 5GHz radio, a 4x4:4 2.4GHz radio and a third 2x2 dual-band scan radio, with integrated internal omnidirectional antennas and dual 2.5GbE ports for multi-gigabit wired uplinks. It supports up to 768 clients with peak data rates of up to 4.8 Gbps on 5GHz and 1.1 Gbps on 2.4GHz.

The third radio is dedicated to WIPS, spectrum analysis, scanning and client connectivity tests, so security and RF monitoring run without taking capacity from the two access radios. The C-250 is managed by Arista CloudVision Wi-Fi, in the cloud or on premises, with zero-touch deployment, dynamic RF optimisation and Layer 7 application visibility. It mounts on a wall or ceiling and is powered by PoE++ or 12V DC.

Features

- Third radio dedicated to WIPS, spectrum analysis, scanning and client connectivity tests
- Zero-touch deployment with automatic cloud activation
- Cloud or on-premises management via Arista CloudVision Wi-Fi
- Distributed control plane architecture with flexible data plane
- Up to 8 SSIDs per radio with integrated firewall, traffic shaping, QoS and BYOD controls per SSID
- Dynamic RF optimisation with smart steering, band steering and smart load balancing
- Layer 7 application visibility using deep packet inspection
- Marker Packets technology for rogue AP detection and prevention
- Wired VLAN monitoring for no-WiFi zone enforcement
- Self-healing wireless mesh networking
- Dedicated access, dedicated security or dual operating modes
- Interference mitigation for LTE/3G small cells and CBRS

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Tri-radio 802.11ax (Wi-Fi 6): 8x8:8 5GHz, 4x4:4 2.4GHz and 2x2 dual-band scan radio
- Peak data rates up to 4.8 Gbps (5GHz) and 1.1 Gbps (2.4GHz)
- 2 x 2.5GbE RJ-45 ports (100M/1G/2.5G), PoE++ compliant
- UL/DL MU-MIMO (8x8 on 5GHz, 4x4 on 2.4GHz) and OFDMA
- Integrated PIFA omnidirectional antennas: 6.1 dBi peak gain (5GHz), 4.92 dBi peak gain (2.4GHz)
- Up to 768 clients (256 on 2.4GHz, 512 on 5GHz)
- Maximum EIRP: 32.5 dBm (5GHz), 28.5 dBm (2.4GHz), restricted by regulatory domain
- Qualcomm IPQ8078 2.2GHz quad-core ARM processor, 1 GB RAM, 512 MB flash
- Power input: 12V DC (3.3 A) or PoE++; PoE+ supported with USB off and reduced maximum EIRP
- Power consumption: 34.4 W max, 28.6 W average
- RJ-45 RS-232 console port and USB 2.0 Type-A port (future use)
- Integrated BLE and Kensington lock slot
- Dimensions: 230mm x 230mm x 49mm, weight 1.39 kg
- Operating temperature: 0 to +40 C, humidity 0-95% non-condensing

FAQs

Q: What radios does the Arista C-250 include?
A: The C-250 has three radios: an 8x8:8 5GHz access radio, a 4x4:4 2.4GHz access radio and a multipurpose 2x2 dual-band radio used for WIPS, spectrum scanning and client connectivity tests.

Q: What power options does the C-250 support?
A: It can be powered by PoE++ for full function, or by 12V DC (5.5 mm / 2.1 mm centre pin). On PoE+ the USB port is disabled and maximum EIRP is reduced to 28.5 dBm on 5GHz and 25.5 dBm on 2.4GHz.

Q: What wired uplink ports does it have?
A: The C-250 has two 2.5GbE RJ-45 ports (LAN1 and LAN2) supporting 100M, 1G and 2.5G Ethernet, plus an RJ-45 RS-232 console port and a USB 2.0 Type-A port reserved for future use.

Q: How is the C-250 managed?
A: It is managed by Arista CloudVision Wi-Fi, either in the cloud or on premises, with zero-touch deployment through automatic cloud activation.

Q: Does the C-250 have internal or external antennas?
A: It uses integrated PIFA omnidirectional antennas: eight for the 5GHz radio and four for the 2.4GHz radio. No external antennas are required.

Q: How many clients can the C-250 support?
A: It supports up to 768 clients in total, made up of up to 256 on the 2.4GHz radio and up to 512 on the 5GHz radio.
