Arista

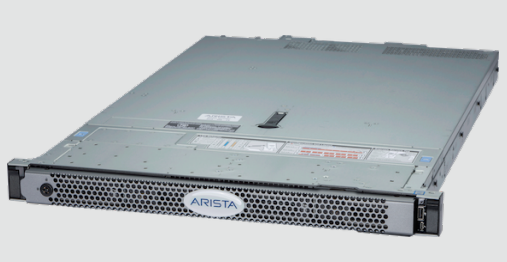

Arista DCA-200-VEOS | vEOS Router 1U Physical Appliance, Model 200, No Licence

Arista DCA-200-VEOS | vEOS Router 1U Physical Appliance, Model 200, No Licence

Authorised Arista Partner

SKU:DCA-200-VEOS

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista DCA-200-VEOS is a 1U rack-mount vEOS Router physical appliance, Model 200, supplied without device licences. It ships with a supported operating system and the vEOS Router software platform, giving a dedicated x86 hardware base for virtual routing with Layer-3 protocols including OSPFv2, BGPv4 and IS-IS.

Built around two Intel Xeon 10-core CPUs, 64GB of DRAM and four 2TB SATA drives, it provides four 1G and four 10G network ports plus a dedicated 1G IPMI port. The 10G interfaces run in SR-IOV mode for virtualised workloads, and dual hot-plug 550W power supplies and iDRAC 9 Enterprise support resilient, remotely managed deployments.

Features

- Ships with a supported operating system and vEOS Router software
- Runs the vEOS Router with Layer-3 routing protocols including OSPFv2, BGPv4 and IS-IS
- Redundant hot-plug power supplies for resilient operation
- SR-IOV partitioned 10G interfaces for virtualised workloads
- Dedicated IPMI port and iDRAC 9 Enterprise for remote management
- The same vEOS Router software can alternatively be deployed on standard x86 servers or public clouds (AWS, Azure, GCP)

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U rack-mount physical appliance
- Model: DCA-200 (Model 200)
- CPU: Two Intel Xeon 10-core, 2.2GHz
- DRAM: 64GB (2 x 32GB)
- Storage: Four 2TB SATA hard drives
- Network: 4 x 1G, 4 x 10G (2 x dual-port 10G NICs), dedicated 1G IPMI port
- 10G ports configured in SR-IOV mode (32 virtual functions per port, 128 total)
- Power: dual hot-plug redundant (1+1) 550W power supplies
- Remote management: iDRAC 9 Enterprise
- Dimensions (HxWxD): 1.68in x 17.08in x 25.87in (4.26cm x 43.38cm x 65.70cm)
- Weight: 38.90 lbs (17.64 kg)
- No device licences included

FAQs

Q: Are device licences included with the DCA-200-VEOS?
A: No. This SKU is the Model 200 physical appliance without device licences, so vEOS Router licensing must be arranged separately.

Q: What software does the DCA-200-VEOS run?
A: It ships with a supported operating system and the vEOS Router software platform, which provides Layer-3 routing including OSPFv2, BGPv4 and IS-IS.

Q: What network interfaces does this appliance provide?
A: It has four 1G ports, four 10G ports from two dual-port 10G NICs, and a dedicated 1G IPMI port for out-of-band management.

Q: Does the appliance support SR-IOV?
A: Yes. The 10G ports are configured in SR-IOV mode with 32 virtual functions per port, 128 in total, for virtualised workloads.

Q: Does the DCA-200-VEOS have redundant power?
A: Yes. It includes dual hot-plug redundant (1+1) 550W power supplies.

Q: Can vEOS Router run on hardware other than this appliance?
A: Yes. The same vEOS Router software can also be deployed on standard x86 servers or on public clouds such as AWS, Azure and GCP.
