APC

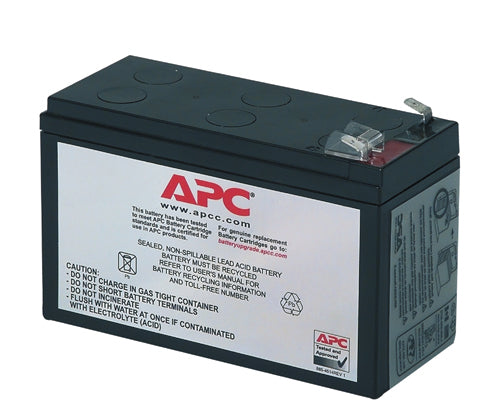

APC RBC2 | Replacement Battery Cartridge, 12V 7Ah, BK350, BK500

APC RBC2 | Replacement Battery Cartridge, 12V 7Ah, BK350, BK500

Authorised APC Partner

SKU:RBC2

In stock:1

$215.05 inc. GST
$195.50 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC RBC2 replacement battery cartridge is a 12V DC, 7Ah sealed valve-regulated lead-acid (VRLA) battery for selected APC Back-UPS models, including the BK350 and BK500. It restores the UPS to its original runtime and specifications, and is designed for hot-swap installation so the protected equipment does not need to be shut down during replacement.

The RBC2 is a maintenance-free cartridge with suspended electrolyte, supplied fully assembled with the required connectors, a recycling guide and an installation guide. It is tested and certified by APC for compatibility with supported UPS models, has an expected battery life of 3 to 5 years, and meets UL, VDE, CSA, RoHS and REACH standards.

Features

- Hot-swappable, so no network downtime is required for installation
- Maintenance-free sealed lead-acid battery with suspended electrolyte
- Supplied fully assembled with the required connectors, recycling guide and installation guide
- Tested and certified by APC for compatibility with selected Back-UPS models
- Meets or exceeds UL, VDE, CSA, RoHS and REACH standards

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Battery type: sealed, maintenance-free valve-regulated lead-acid (VRLA)
- Output voltage: 12 V DC
- Battery capacity: 7 Ah
- Hot-swappable: Yes
- Expected battery life: 3 to 5 years
- Maximum operating temperature: 40 C (104 F)
- Height: 94 mm
- Width: 64 mm
- Depth: approx. 151 mm
- Weight: approx. 2.5 kg
- Colour: Black
- Warranty: 2 years
- Compliance: RoHS, REACH

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Which APC UPS models use the RBC2 battery cartridge?
A: The RBC2 is suitable for the APC BK350 and BK500 Back-UPS models. Check your UPS model against the APC compatibility listing before ordering.

Q: Can the RBC2 be replaced while the UPS is running?
A: Yes. The RBC2 is hot-swappable, so it can be replaced without taking the protected equipment offline.

Q: What type of battery is the RBC2?
A: It is a 12V DC, 7Ah sealed valve-regulated lead-acid (VRLA) battery. It is maintenance-free and uses a suspended electrolyte design.

Q: How long does the RBC2 battery last?
A: The expected battery life is 3 to 5 years, depending on operating temperature and how often the UPS discharges.

Q: Does the RBC2 come ready to install?
A: Yes. It is supplied fully assembled with the required connectors, an installation guide and a recycling guide.

Q: What are the dimensions and weight of the RBC2?
A: The RBC2 measures 94 mm high by 64 mm wide and approximately 151 mm deep, and weighs approximately 2.5 kg.

APC Replacement Battery Finder

How Do I Choose the Right APC UPS Battery?

Finding the correct replacement battery for your APC UPS can be confusing Our APC Battery Finder makes it easy. Simply enter your UPS model to get the exact battery match, the correct quantity required, and guidance if your unit is end-of-life with upgrade options.

Designed for fast, accurate results, this tool helps Australian businesses & IT teams avoid downtime and order the right APC UPS battery the first time.

Find My APC Battery
