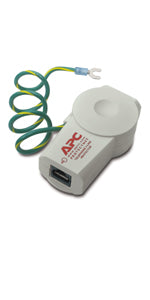

• APC PTEL2 ProtectNet surge protector with white USB adapter and green yellow coiled cable
1 1

APC

APC PTEL2 | ProtectNet 2-Line Phone Line Surge Protector, RJ-11/RJ-45

APC PTEL2 | ProtectNet 2-Line Phone Line Surge Protector, RJ-11/RJ-45

Authorised APC Partner

PTEL2

Stock Status: Enquire

$61.29 inc. GST
$55.72 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC ProtectNet PTEL2 is a standalone 2-line (4-wire) telephone and DSL surge protector that shields modems, fax machines, answering machines and other analog telephone equipment from surges on the phone line. It accepts both RJ-11 and RJ-45 jacks and is finished in beige.

It protects the voice and data pairs on pins 4, 5, 3 and 6 of the RJ-45 connector, with a clamping voltage below 260 V and a 1 ns response time in normal mode. A self-resetting fuse keeps it maintenance free, and the unit ships with a 6 ft extension cable and mounting fasteners for simple installation.

Features

- Protects voice mail, answering machines, fax machines, modems and other telephone equipment
- Accepts both standard RJ-11 and RJ-45 telephone jacks
- Covers two telephone lines (4-wire) in a single compact unit
- Self-resetting fuse for maintenance-free operation
- Includes extension cable and mounting fasteners
- Safety approvals: UL 497A, UL Listed and CSA

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Lines protected: 2 telephone lines (4-wire)
- Connectivity: RJ-11 / RJ-45
- Protection type: Analog / DSL / Modem / Fax
- Maximum surge current: 200 A
- Peak current normal mode: 0.20 kA
- Peak current common mode: 0.15 kA
- Peak voltage: +/- 6000 V
- Breakover voltage: 260 V peak nominal
- Let-through voltage: <260 V
- Surge response time (normal mode): 1 ns
- Protected pins: 4, 5, 3 and 6 on RJ-45 connector
- Maximum operating temperature: 45 C (113 F)
- Safety approvals: UL 497A, UL Listed, CSA
- Colour: Beige
- Included: 6 ft extension cable, mounting fasteners, user manual

FAQs

Q: How many telephone lines does the APC PTEL2 protect?
A: It protects two telephone lines (four-wire dual line), using pins 4, 5, 3 and 6 on the RJ-45 connector.

Q: Which connectors does it accept?
A: It accepts both standard RJ-11 and RJ-45 telephone jacks.

Q: Can it protect DSL and fax equipment?
A: Yes. It provides analog, DSL, modem and fax line protection, including voice mail systems and answering machines.

Q: Does the fuse need replacing after a surge?
A: No. It uses a self-resetting fuse, so it is maintenance free.

Q: What is included in the box?
A: The unit ships with a 6 ft extension cable, mounting fasteners and a user manual.

Q: What clamping voltage does it provide?
A: The let-through voltage rating is below 260 V, with a breakover voltage of 260 V peak nominal.
