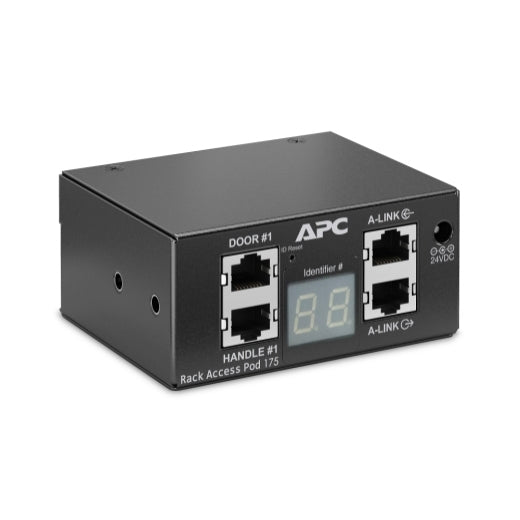

• APC NetBotz 175 black rack access pod with 4 Ethernet ports and display
1 1

APC

APC NBPD0125 | NetBotz Rack Access Pod 175, 125 kHz Handles, Door Contacts

APC NBPD0125 | NetBotz Rack Access Pod 175, 125 kHz Handles, Door Contacts

Authorised APC Partner

NBPD0125

Stock Status: Enquire

$2,977.43 inc. GST
$2,706.75 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NetBotz Rack Access Pod 175 kit adds remote rack access monitoring and control to APC SX racks. It ships with 125 kHz badge-based handles and door contacts (NBES0303), so access to each enclosure can be authenticated and door openings detected.

Door contacts can trigger surveillance recording on a NetBotz appliance, and multiple pods can be cascaded on an A-Link bus for environments with two or more enclosures. This kit extends an existing NetBotz appliance deployment and is not a standalone system.

Features

- Remote rack access monitoring and control
- 125 kHz badge-based handle authentication
- Door contacts detect door opening and can trigger surveillance recording on a NetBotz appliance
- Pods can be cascaded on an A-Link bus
- Extends an existing NetBotz appliance deployment

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Includes 1 x NetBotz Rack Access Pod 175
- Includes 1 set of 125 kHz handles (NBHN125)
- Includes 1 set of door contacts (NBES0303)
- Handle technology: 125 kHz badge access
- Handle #1 port: for NBHN125 or NBHN1356 handle on Door #1
- Door #1 port: for NBES0302 or NBES0303 door switch sensor
- A-Link port (out): cascades pods on an A-Link bus using straight-through CAT-5 cabling
- Power input: 24 VDC from external supply (AP9505I)
- Compatibility: APC NetBotz, APC SX rack
- Colour: black/silver

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What is included in the NBPD0125 kit?
A: The kit includes one NetBotz Rack Access Pod 175, one set of 125 kHz handles (NBHN125) and one set of door contacts (NBES0303).

Q: Which racks is this kit designed for?
A: It is designed for APC SX racks and suits environments with two or more enclosures.

Q: Can this pod be used on its own?
A: No. It extends an existing NetBotz appliance deployment and is not a standalone system.

Q: How are multiple pods connected?
A: Pods are cascaded on an A-Link bus through the A-Link out port, using straight-through CAT-5 cabling.

Q: How is the pod powered?
A: It takes 24 VDC from an external power supply (AP9505I).

Q: What do the door contacts do?
A: They detect when a door is opened, which can trigger surveillance recording on a NetBotz appliance.
