APC

APC LE1200I | Line-R 1200VA Automatic Voltage Regulator, 4x C13

APC LE1200I | Line-R 1200VA Automatic Voltage Regulator, 4x C13

Authorised APC Partner

LE1200I

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.
End of life
This product is end of life. Contact us for alternatives.

Description

The APC Line-R LE1200I is a 1200VA, 230V automatic voltage regulator with four IEC C13 outlets, designed to protect sensitive electronics from low and high mains voltage, surges and electrical noise. It suits networking equipment, workstations, point-of-sale systems and office electronics where an unstable power supply causes instability or hardware stress, without the need for battery backup.

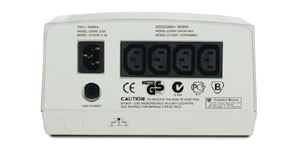

The unit steps low voltage up and high voltage down to levels suitable for connected equipment, while 300 Joule surge protection and EMI/RFI filtering provide additional protection. A resettable circuit breaker means there is no fuse to replace after an overload, and the IEC C14 input connector makes it easy to pair with a locally appropriate power cord.

Features

- Automatic Voltage Regulation (AVR) steps up low voltage and steps down high voltage
- Lightning and surge protection for connected equipment
- EMI/RFI filtering reduces electrical noise on the supply
- Resettable circuit breaker for easy recovery from overloads, with no fuse to replace

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Capacity: 1200VA
- Nominal input and output voltage: 230V AC, 50/60Hz
- Maximum line current: 5.2A
- Outlets: 4 x IEC 320 C13
- Input connector: IEC 320 C14
- Surge energy rating: 300 Joules
- EMI/RFI noise rejection (100kHz to 10MHz): 55dB
- Dimensions (H x W x D): approx. 116 x 214 x 141 mm
- Colour: Beige

FAQs

Q: Does the APC LE1200I provide battery backup?
A: No. The Line-R LE1200I is an automatic voltage regulator with surge protection. It conditions mains power but does not include a battery, so it does not keep equipment running during a complete power outage.

Q: How many outlets does the LE1200I have and what type are they?
A: It provides four IEC 320 C13 outlets, and the input connection is an IEC 320 C14 inlet.

Q: What does automatic voltage regulation do?
A: AVR steps up low incoming voltage and steps down high incoming voltage so connected equipment receives power within a suitable range, which helps protect against brownouts and over-voltage conditions.

Q: What surge protection rating does the LE1200I offer?
A: The unit has a 300 Joule surge energy rating, along with EMI/RFI noise rejection of 55dB across 100kHz to 10MHz.

Q: What is the nominal voltage and capacity?
A: The LE1200I is rated at 1200VA with a nominal 230V AC input and output at 50/60Hz, with a maximum line current of 5.2A.

Q: What happens if the unit is overloaded?
A: It uses a resettable circuit breaker. After an overload you simply reset the breaker, and there is no fuse to replace.
