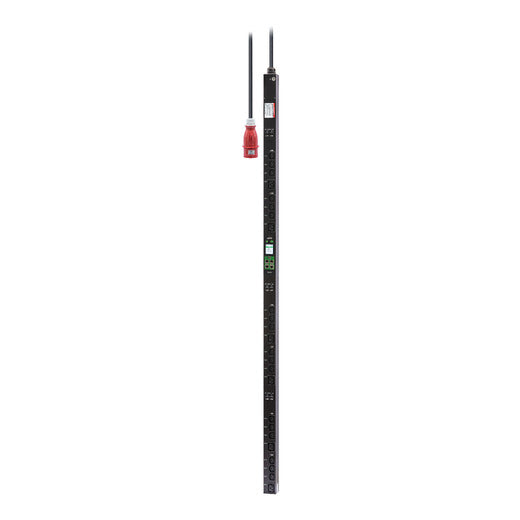

• APC EPDU2232SMBO black vertical rack PDU with red surge plug, 18 C13 & 6 C19 outlets
1 1

APC

APC EPDU2232SMBO | Easy Switched Rack PDU, 0U 3-Phase, 22kW, 18 C13 + 6 C19

APC EPDU2232SMBO | Easy Switched Rack PDU, 0U 3-Phase, 22kW, 18 C13 + 6 C19

Authorised APC Partner

EPDU2232SMBO

Stock Status: Enquire

$2,755.04 inc. GST
$2,504.58 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Easy Switched Rack PDU is a vertical 0U three-phase rack PDU with per-outlet metering and remote outlet switching, delivering up to 22kW at 230V from a 32A IEC 60309 3P+N+PE inlet. It provides 24 outlets in total, made up of 18 C13 and 6 C19 outlets, so it suits mixed server, storage and networking racks in data centres and comms rooms.

Individual outlets can be switched on, off or power-cycled remotely, and outlet power sequencing lets you set the order in which equipment starts up. Network management is available through web and SNMP interfaces, metering accuracy is 1%, and an LCD display shows local load information. The PDU can be daisy-chained so several units share a single IP address, and it ships with a 3 m input cord.

Features

- Remote individual outlet control to switch off unused outlets or power-cycle locked-up equipment
- Outlet power sequencing to set the order in which outlets turn on or off
- Per-outlet metering with 1% accuracy for load monitoring
- Network management via web and SNMP interfaces
- Daisy-chain support for several PDUs on a single IP address, reducing networking cost
- Lightweight aluminium housing with environmental monitoring and an improved display module
- Network Management Card (NMC3) with secure interfaces and a modified password policy

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- PDU type: Metered outlet, switched
- Form factor: 0U vertical, three-phase
- Load capacity: 22000 VA (22 kW)
- Input: 400V 3-phase, 50/60 Hz, 32A, IEC 60309 3P+N+PE
- Nominal output voltage: 230V
- Outlets: 18 x IEC 60320 C13 and 6 x IEC 60320 C19 (24 total)
- Input cord length: 3 m
- Metering accuracy: 1%
- Display: LCD
- Network port: 1 x RJ-45 10/100BASE-T, SNMP
- Overload protection: Yes
- Housing: Black aluminium
- Dimensions (H x W x D): 1800 x 55 x 56 mm
- Net weight: 8.68 kg
- Operating temperature: -5 to 45 C
- Operating humidity: 5 to 95 %
- Operating altitude: 0 to 3000 m
- Certification: CE

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What inlet connector and supply does the EPDU2232SMBO require?
A: It has a 3 m input cord with a 32A IEC 60309 3P+N+PE connector and requires a 400V three-phase supply at 50/60 Hz.

Q: How many outlets does it have and what types?
A: It provides 24 outlets in total: 18 x IEC 60320 C13 and 6 x IEC 60320 C19.

Q: Can I switch individual outlets remotely?
A: Yes. This is a switched and metered-by-outlet model, so individual outlets can be switched on, off or power-cycled remotely over the network.

Q: How is the PDU managed?
A: It has a 10/100BASE-T RJ-45 network port and is managed through web and SNMP interfaces, with an LCD display for local readings.

Q: Does it mount in rack units?
A: It is a 0U vertical PDU that mounts at the side of the rack, so it does not use any rack unit space.

Q: Can several PDUs share one IP address?
A: Yes. Daisy-chain support lets multiple PDUs share a single IP address, which reduces networking cost.
