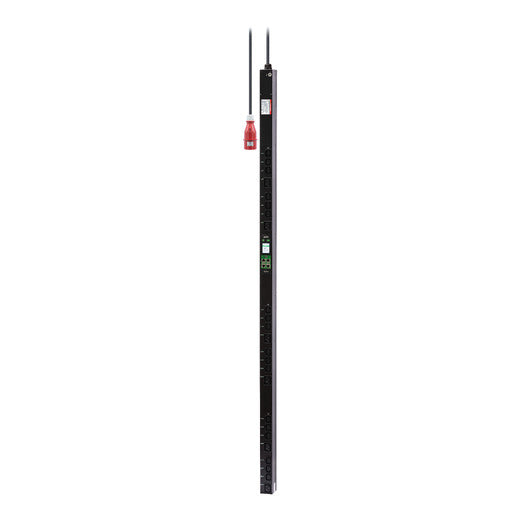

• APC EPDU2216SMBO black vertical rack PDU with outlets and red light
1 1

APC

APC EPDU2216SMBO | Easy Rack PDU, 0U Switched Metered Outlet, 3 Phase 11kW, 18 C13, 6 C19

APC EPDU2216SMBO | Easy Rack PDU, 0U Switched Metered Outlet, 3 Phase 11kW, 18 C13, 6 C19

Authorised APC Partner

EPDU2216SMBO

Stock Status: Enquire

$2,512.80 inc. GST
$2,284.36 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC EPDU2216SMBO is a 0U vertical three-phase switched rack PDU rated at 11 kW, with metered outlets and remote on/off control of each outlet. It provides 18 IEC C13 and 6 IEC C19 outlets from a single IEC 60309 3P+N+PE inlet, giving high-density power for servers, switches and storage in data centre and server room racks.

Management is handled by a Network Management Card 3 (NMC3) over the web interface, SNMP and CLI, with integration into EcoStruxure IT. Per-outlet metering accuracy of ±1% supports capacity planning and power monitoring, while the lightweight aluminium housing and zero U mounting save rack space and simplify installation.

Features

- Remote on/off switching of individual outlets for power cycling and sequencing
- Per-outlet metering with ±1% accuracy
- NMC3 with enhanced cybersecurity, including secured interfaces and a modified password policy
- Integrates with EcoStruxure IT and is configurable via Web, SNMP and CLI
- Ultra-lightweight aluminium housing, up to 50% weight reduction
- Environmental monitoring and an improved display module
- Zero U vertical mounting saves rack space
- Field-replaceable control module

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- 0U vertical mounting
- 3 phase input, 11 kW, 230 V output
- IEC 60309 3P+N+PE (32 A) input plug, 3 m cord
- 18 x IEC 60320 C13 outlets
- 6 x IEC 60320 C19 outlets
- 24 outlets in total
- Metered-by-outlet with remote switching, metering accuracy ±1%
- NMC3 network management card with 1 x RJ-45 Ethernet and 1 x USB port
- Web, SNMP and CLI management
- LCD display
- Dimensions (H x W x D): 1800 x 55 x 56 mm
- Aluminium housing, black
- Operating temperature -5 to 50 C
- 2-year warranty

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input connection does the APC EPDU2216SMBO require?
A: It has an IEC 60309 3P+N+PE (32 A) input plug on a 3 m cord, so it needs a matching three-phase 400 V supply outlet.

Q: How many outlets does it provide and of what type?
A: It provides 24 outlets in total: 18 x IEC C13 and 6 x IEC C19, suitable for a mix of servers, switches and higher-draw equipment.

Q: Can individual outlets be switched on and off remotely?
A: Yes. Each outlet can be switched on or off remotely through the NMC3 via web, SNMP or CLI, which allows power cycling and sequenced start-up.

Q: What is the difference between switched metered outlet and metered-by-outlet PDUs?
A: This model combines both: it measures power at each outlet with ±1% accuracy and also lets you switch each outlet remotely, whereas a metered-only PDU cannot switch outlets.

Q: How is this PDU mounted in the rack?
A: It is a 0U vertical unit, mounted alongside the rack frame rather than using rack units, which keeps rack space free for equipment.

Q: How is the PDU managed on the network?
A: It includes a Network Management Card 3 (NMC3) with an Ethernet port, supporting web, SNMP and CLI management and integration with EcoStruxure IT.
