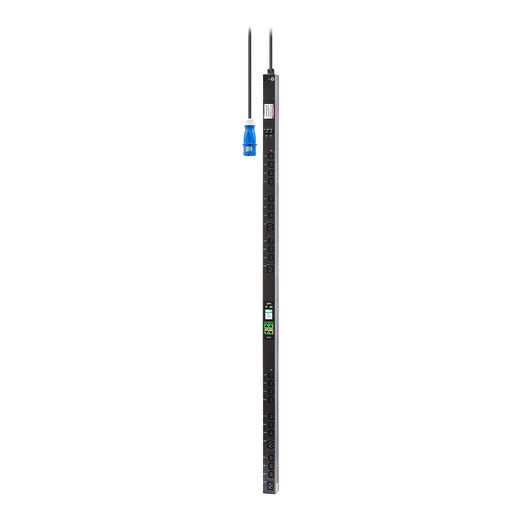

• APC EPDU2132SMBO black vertical switched metered rack PDU rear view with cables
1 1

APC

APC EPDU2132SMBO | Easy PDU 2G Switched Rack PDU, 0U, 7.4kW, 32A, 20x C13 + 4x C19

APC EPDU2132SMBO | Easy PDU 2G Switched Rack PDU, 0U, 7.4kW, 32A, 20x C13 + 4x C19

Authorised APC Partner

EPDU2132SMBO

Stock Status: Enquire

$2,140.51 inc. GST
$1,945.92 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Easy PDU 2G Switched Metered-by-Outlet rack PDU is a vertical 0U power distribution unit delivering up to 7.4 kW (7360 VA) from a single-phase 32 A IEC 60309 2P+E inlet. It provides 24 outlets, 20 x C13 and 4 x C19, with per-outlet metering and switching so each connected device can be monitored and power cycled remotely.

The 1800 mm side-mounted chassis keeps rack space free for equipment, and a mix of C13 and C19 outlets suits servers, storage and network gear in one unit. A built-in circuit breaker provides overload protection, SNMP support enables network management, and a pre-fitted 3 m input cable with 32 A 2P+E plug simplifies installation.

Features

- Per-outlet metering and switching for remote power control and monitoring
- Vertical 0U form factor saves rack space
- Mix of C13 and C19 outlets supports servers, storage and network equipment
- Integrated circuit breaker protection
- SNMP network management support
- Pre-fitted 3 m input cable with IEC 60309 32 A 2P+E plug

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- PDU type: Switched, metered-by-outlet
- Form factor: 0U vertical, side-mounted (not rack-mountable in U space)
- Load capacity: 7360 VA (7.4 kW)
- Input: single-phase, 32 A, IEC 60309 32 A 2P+E inlet
- Permissible input voltage: 200-240 V, 50/60 Hz
- Output voltage: 230 V
- Outlets: 24 total, 20 x IEC 60320 C13 and 4 x IEC 60320 C19
- Protection: circuit breaker
- Communication: SNMP
- Input cable: 3 m
- Dimensions (H x W x D): 1800 x 55 x 56 mm
- Net weight: 7.42 kg
- Operating temperature: -5 to 50 C
- Operating humidity: 5-95 %
- Certification: CE

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What outlets does the EPDU2132SMBO provide?
A: It provides 24 outlets in total: 20 x IEC 60320 C13 and 4 x IEC 60320 C19.

Q: What is the maximum load capacity?
A: The PDU supports up to 7360 VA (7.4 kW) from a single-phase 230 V, 32 A supply.

Q: What input connection does it use?
A: It has a pre-fitted 3 m input cable terminated with an IEC 60309 32 A 2P+E plug, so it needs a matching 32 A industrial socket.

Q: Can I switch individual outlets remotely?
A: Yes. This is a switched, metered-by-outlet model with per-outlet metering and switching, managed over the network via SNMP.

Q: How is it mounted in the rack?
A: It is a 0U vertical unit mounted at the side of the rack, so it does not consume rack units. It is not designed for horizontal rack-unit mounting.

Q: Does it include overload protection?
A: Yes, it includes circuit breaker protection.
