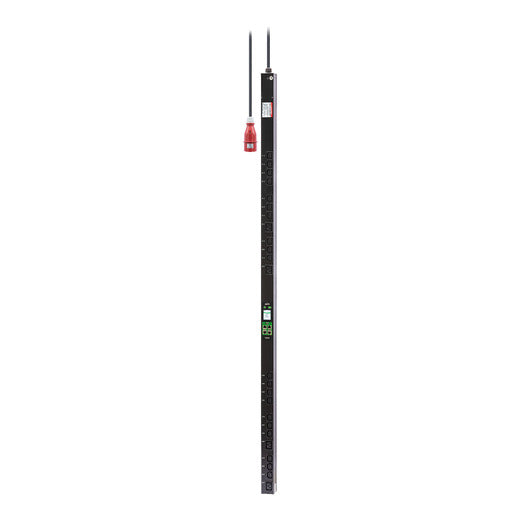

• APC EPDU2116SMBO black vertical PDU with 180 display and outlets
1 1

APC

APC EPDU2116SMBO | Easy PDU 2G Switched Metered-by-Outlet 0U PDU, 16A, 20x C13, 4x C19

APC EPDU2116SMBO | Easy PDU 2G Switched Metered-by-Outlet 0U PDU, 16A, 20x C13, 4x C19

Authorised APC Partner

EPDU2116SMBO

Stock Status: Enquire

$1,911.16 inc. GST
$1,737.42 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC EPDU2116SMBO is a Easy PDU 2G switched, metered-by-outlet 0U rack PDU rated at 16A 230V (3.7 kW). It provides 24 outlets, made up of 20 x C13 and 4 x C19, and connects through an IEC 60309 2P+E inlet with a 3 m cord, making it a practical single-phase power distribution option for server and network racks.

Per-outlet metering and remote outlet switching let you monitor consumption at each outlet, turn off unused outlets and power-cycle locked-up equipment over the network. The vertical 0U form factor mounts at the side of the rack to preserve usable rack space, and up to four PDUs can be daisy-chained on a single IP address.

Features

- Per-outlet power metering with accuracy of about ±1%
- Individual outlet switching to turn off unused outlets or power-cycle equipment remotely
- Daisy-chain up to 4 PDUs on a single IP address
- SNMP network management
- Vertical 0U form factor saves rack space
- Mix of 20 x C13 and 4 x C19 outlets for servers, switches and higher-draw equipment

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- PDU type: Metered-by-outlet, switched, single-phase
- Form factor: 0U vertical mount (side mount)
- Outlets: 24 total, 20 x IEC C13 and 4 x IEC C19
- Input: IEC 60309 16A 2P+E plug, 3 m cord
- Nominal input voltage: 200-240 V, 50/60 Hz
- Maximum current: 16 A
- Load capacity: 3680 VA, maximum power 3.7 kW
- Network: 1 x RJ-45 Ethernet port, SNMP
- Ports: 1 x USB
- Operating temperature: -5 to 50 C
- Operating humidity: 5-95%
- Dimensions (H x W x D): 1800 x 55 x 56 mm
- Weight: 6.67 kg
- Colour: Black

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of input connection does the EPDU2116SMBO use?
A: It uses an IEC 60309 16A 2P+E input plug on a 3 m cord, rated for 200-240 V single-phase supply at up to 16A.

Q: How many outlets does it provide and what types?
A: It provides 24 outlets in total: 20 x IEC C13 and 4 x IEC C19.

Q: Can I switch individual outlets on and off remotely?
A: Yes. This is a switched model, so individual outlets can be turned off or power-cycled over the network, and power is also metered at each outlet.

Q: Does this PDU mount inside the rack units?
A: No. It is a 0U vertical PDU intended to mount at the side of the rack, so it does not consume any rack unit space.

Q: How is the PDU managed over the network?
A: It has one RJ-45 Ethernet port and supports SNMP. Up to four PDUs can be daisy-chained on a single IP address.

Q: What is the maximum load this PDU supports?
A: It is rated for 16A at 230V, which is 3680 VA and approximately 3.7 kW maximum power.
