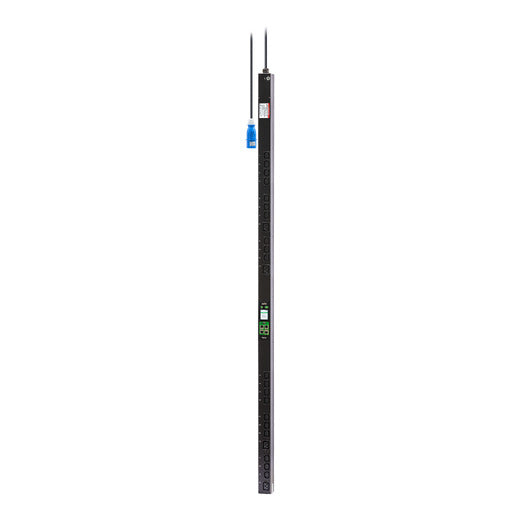

• APC EPDU2116MBO black vertical metered rack PDU with green LED display
1 1

APC

APC EPDU2116MBO | Easy Rack Metered-by-Outlet 0U PDU, 16A, 20 C13 + 4 C19

APC EPDU2116MBO | Easy Rack Metered-by-Outlet 0U PDU, 16A, 20 C13 + 4 C19

Authorised APC Partner

EPDU2116MBO

Stock Status: Enquire

$1,553.04 inc. GST
$1,411.85 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Easy Rack Metered-by-Outlet 0U PDU is a vertical, single-phase rack PDU rated at 16A, 230V and 3.7kW, with 24 outlets made up of 20 x C13 and 4 x C19 and an IEC 60309 2P+E inlet. Per-outlet metering gives detailed energy data for capacity planning and resource allocation, making it well suited to server racks that mix standard IT loads with higher-draw C19 equipment.

The PDU manages and monitors through a Network Management Card (NMC3) with Web, SNMP and CLI access, and integrates with EcoStruxure IT. An LCD display, an RJ-45 Ethernet port, a USB port and an environmental monitoring port for external sensors (sold separately) support day-to-day visibility. Up to 4 PDUs can be daisy-chained on a single IP address to reduce networking cost, and the zero-U toolless design leaves rack space free for IT equipment.

Features

- Per-outlet metering for detailed energy analysis, capacity planning and resource allocation
- Integrates with EcoStruxure IT via Network Management Card NMC3, with Web, SNMP and CLI access
- NMC3 provides enhanced cybersecurity with secured interfaces
- Daisy-chain up to 4 PDUs on a single IP address to reduce networking cost
- Environmental monitoring port for external temperature and humidity sensors (sold separately)
- Zero-U toolless installation preserves rack space

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 0U vertical rack mount, metal housing, black
- Single-phase, 230V nominal input, 16A maximum current, 3.7kW
- Output voltage 200-240V, input frequency 50/60Hz
- 24 outlets: 20 x C13 + 4 x C19
- IEC 60309 2P+E inlet
- Metered-by-outlet
- LCD display
- 1 x RJ-45 Ethernet port, 1 x USB port
- Daisy-chain up to 4 PDUs on one IP address
- Operating temperature -5 to 50 C, operating humidity 5-95%
- Dimensions (W x D x H): 55 x 56 x 1800 mm

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What outlets does the EPDU2116MBO provide?
A: It provides 24 outlets: 20 x C13 and 4 x C19, all metered individually.

Q: What type of inlet and input power does it use?
A: It has an IEC 60309 2P+E inlet and is designed for single-phase 230V input at up to 16A, giving 3.7kW.

Q: Does it meter each outlet or only the total load?
A: It is a metered-by-outlet model, so it reports energy data for every outlet, which supports capacity planning and resource allocation.

Q: How is the PDU managed and monitored?
A: It uses a Network Management Card (NMC3) with Web, SNMP and CLI access, and it integrates with EcoStruxure IT. An LCD display, RJ-45 Ethernet port and USB port are also provided.

Q: Can multiple PDUs share one network connection?
A: Yes. Up to 4 PDUs can be daisy-chained on a single IP address, which reduces networking cost.

Q: Can I add temperature or humidity sensors?
A: Yes. The environmental monitoring port supports external temperature and humidity sensors, which are sold separately.
