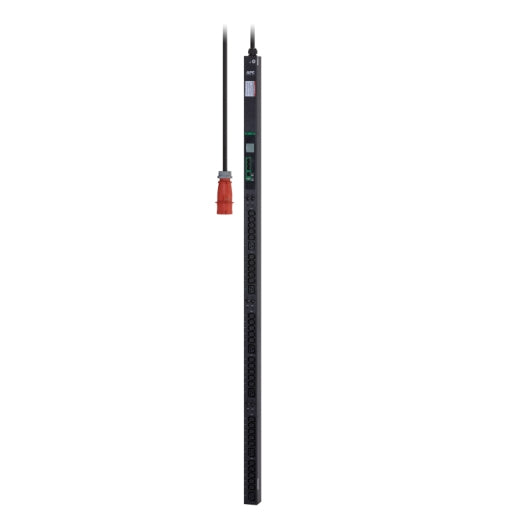

• APC EPDU1232SX3620 black vertical switched rack PDU with red plug
1 1

APC

APC EPDU1232SX3620 | Easy Rack Switched 0U 3-Phase PDU, 22kW, 30x C13, 6x C19

APC EPDU1232SX3620 | Easy Rack Switched 0U 3-Phase PDU, 22kW, 30x C13, 6x C19

Authorised APC Partner

EPDU1232SX3620

Stock Status: Enquire

$2,487.50 inc. GST
$2,261.36 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC EPDU1232SX3620 Easy Rack switched 0U 3-phase PDU delivers up to 22kW at 230V and 32A through an IEC60309 3P+N+PE inlet. With 30 C13 outlets and 6 C19 outlets, it powers dense racks of servers, switches and storage from a single vertical 0U footprint, and per-outlet switching allows individual loads to be power cycled remotely.

The vertical 0U design keeps rack space free for IT equipment while placing outlets close to the devices they feed. Network management is built in, so remote control and monitoring do not require a separate management card, making it a practical choice for data centre and server room deployments that need controlled, switched three-phase power distribution.

Features

- Per-outlet switching for remote power control
- Built-in network management with no separate card needed
- 0U vertical design preserves rack space for IT equipment
- 30 x C13 and 6 x C19 outlets for mixed server and network loads
- Packaging made with recycled cardboard

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: 0U vertical rack mount
- Input: 3-phase, 230V, 32A, IEC60309 3P+N+PE inlet
- Rated power: 22kW
- Outlets: 30 x C13 and 6 x C19
- Switched: per-outlet switching
- Carbon footprint: 3322 kg CO2 eq. (total life cycle)

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input supply does the EPDU1232SX3620 require?
A: It requires a 3-phase 230V, 32A supply connected through an IEC60309 3P+N+PE inlet, with a rated capacity of 22kW.

Q: How many outlets does this PDU provide and of what type?
A: It provides 36 outlets in total: 30 x C13 and 6 x C19, covering typical servers, switches and higher-draw equipment.

Q: Is this a switched or metered-only PDU?
A: It is a switched PDU, so individual outlets can be turned on and off or power cycled remotely.

Q: Does it mount inside the rack space?
A: No. It is a 0U vertical PDU that mounts alongside the equipment, so it does not consume any rack unit space.

Q: Does it need a separate network management card?
A: No. Network management is built into the Easy Rack PDU, so no additional management card is needed for remote control.

APC Replacement Battery Finder

How Do I Choose the Right APC UPS Battery?

Finding the correct replacement battery for your APC UPS can be confusing Our APC Battery Finder makes it easy. Simply enter your UPS model to get the exact battery match, the correct quantity required, and guidance if your unit is end-of-life with upgrade options.

Designed for fast, accurate results, this tool helps Australian businesses & IT teams avoid downtime and order the right APC UPS battery the first time.

Find My APC Battery
