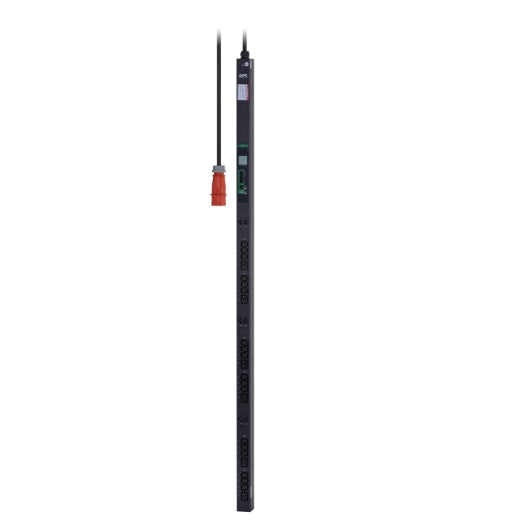

• APC EPDU1232S black vertical rack PDU with red gray connectors
1 1

APC

APC EPDU1232S | Easy Switched 0U 3-Phase Rack PDU, 22kW, 18 C13, 6 C19

APC EPDU1232S | Easy Switched 0U 3-Phase Rack PDU, 22kW, 18 C13, 6 C19

Authorised APC Partner

EPDU1232S

Stock Status: Enquire

$1,988.42 inc. GST
$1,807.65 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC EPDU1232S is a switched 3-phase 0U rack PDU rated for 22kW at 230V from a 32A IEC 60309 3P+N+PE inlet. It provides 18 C13 and 6 C19 outlets with remote on/off control of individual outlets, making it well suited to high-density data centre and network racks.

The vertical Zero U design keeps rack space free for equipment, while the mix of C13 and C19 outlets lets you power servers, switches and other IT gear from a single unit. It supports daisy-chaining of up to 4 Easy PDUs over an RS-485 serial link and includes a port for a temperature and humidity sensor. The PDU has no built-in surge protection, so upstream protection should come from a UPS or surge protective device.

Features

- Suited to high-density power distribution in data centres and network environments
- A mix of C13 and C19 outlets gives flexibility to connect a variety of IT equipment
- Remote management and control of individual outlets
- Vertical Zero U design optimises use of rack space
- Daisy-chain up to 4 Easy PDUs over an RS-485 serial link
- No built-in surge protection, so upstream protection must come from a UPS or a surge protective device

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Switched rack PDU, 0U (Zero U) vertical mounting
- 3-phase, 22kW maximum power
- 230V output, 400V nominal input, 32A maximum current
- 24 outlets: 18 x IEC C13 and 6 x IEC C19
- IEC 60309 3P+N+PE input plug
- Input frequency 50-60Hz
- Power cord length 2m
- Colour: Black
- Daisy-chaining: up to 4 Easy PDUs over RS-485 serial link
- Temperature and humidity sensor port
- Certifications: CE, EAC, RCM, TUV

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input connection does the APC EPDU1232S use?
A: It uses a 32A IEC 60309 3P+N+PE input plug with a 400V nominal 3-phase input and a 2m power cord.

Q: How many outlets does it have and what types?
A: It has 24 outlets in total: 18 x IEC C13 and 6 x IEC C19, delivering 230V output.

Q: What does switched mean on this PDU?
A: Switched means individual outlets can be turned on and off remotely, which is useful for rebooting equipment without a site visit.

Q: Does it include surge protection?
A: No. It has no built-in surge protection, so protection should be provided upstream by a UPS or a surge protective device.

Q: Can multiple units be linked together?
A: Yes. Up to 4 Easy PDUs can be daisy-chained over an RS-485 serial link.

Q: Can I add environmental monitoring?
A: Yes. The PDU has a port for a temperature and humidity sensor.
