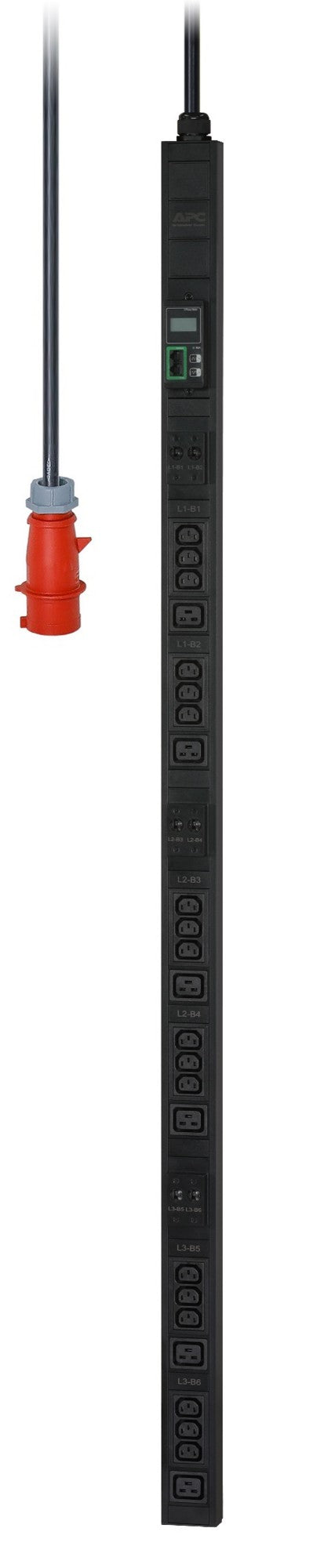

• APC EPDU1232M black vertical rack PDU with red surge plug
1 1

APC

APC EPDU1232M | Easy Metered 0U 3-Phase Rack PDU, 22kW, 32A, 18x C13, 6x C19

APC EPDU1232M | Easy Metered 0U 3-Phase Rack PDU, 22kW, 32A, 18x C13, 6x C19

Authorised APC Partner

EPDU1232M

Stock Status: Enquire

$2,328.93 inc. GST
$2,117.21 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

This 0U three-phase metered rack PDU delivers up to 22kW at 230V output from a 32A IEC 60309 3P+N+PE inlet (400V input). It provides 24 outlets, made up of 18 x C13 and 6 x C19, so a single vertical unit can power dense racks of servers, switches and storage without using any rack space.

Metering with a local LCD and current display allows real-time monitoring of current, power and voltage, with network management over Web, SNMP and Telnet. User-defined alarm thresholds warn of potential overloads, and hydraulic-magnetic circuit breakers protect connected loads. A toolless mounting kit and vertical brackets are included.

Features

- Real-time remote monitoring and power management of connected loads
- User-defined alarm thresholds that warn of potential overloads
- Flash-upgradeable firmware via network download
- Toolless mounting kit and vertical mounting brackets included
- Zero U design saves rack space
- Load indicator LEDs and local current display

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- PDU type: Metered, three-phase
- 0U vertical rack mount
- Power capacity: 22 kW (22000 VA)
- Input connector: IEC 60309 3P+N+PE, 32A
- Nominal input voltage: 400 V, 50/60 Hz
- Nominal output voltage: 230 V
- Maximum current: 32 A
- Outlets: 18 x IEC C13, 6 x IEC C19 (24 total)
- Cord length: 1.98 m
- Housing: Aluminium, black
- Display: LCD with current, power and voltage monitoring
- Circuit protection: Hydraulic-magnetic circuit breakers
- Remote management: Web, SNMP, Telnet
- Operating temperature: -5 to 45 C
- Operating humidity: 5 to 95%
- Certifications: CE, EAC, RCM, TUV

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What inlet and input voltage does this PDU use?
A: It has a 32A IEC 60309 3P+N+PE inlet with a 400V three-phase input, and provides 230V at the outlets.

Q: How many outlets does it provide and of what type?
A: There are 24 outlets in total: 18 x IEC C13 and 6 x IEC C19.

Q: Can I monitor power remotely?
A: Yes. It is a metered PDU that reports current, power and voltage locally on the LCD and remotely via Web, SNMP and Telnet.

Q: Does it need rack units of space?
A: No. It is a zero-U vertical PDU and mounts alongside the rack using the included toolless mounting kit and brackets.

Q: Can I switch individual outlets on and off?
A: No. This is a metered model for monitoring only, so outlets cannot be switched individually.

Q: What is the maximum load capacity?
A: It is rated for 22 kW (22000 VA) at a maximum current of 32A.
