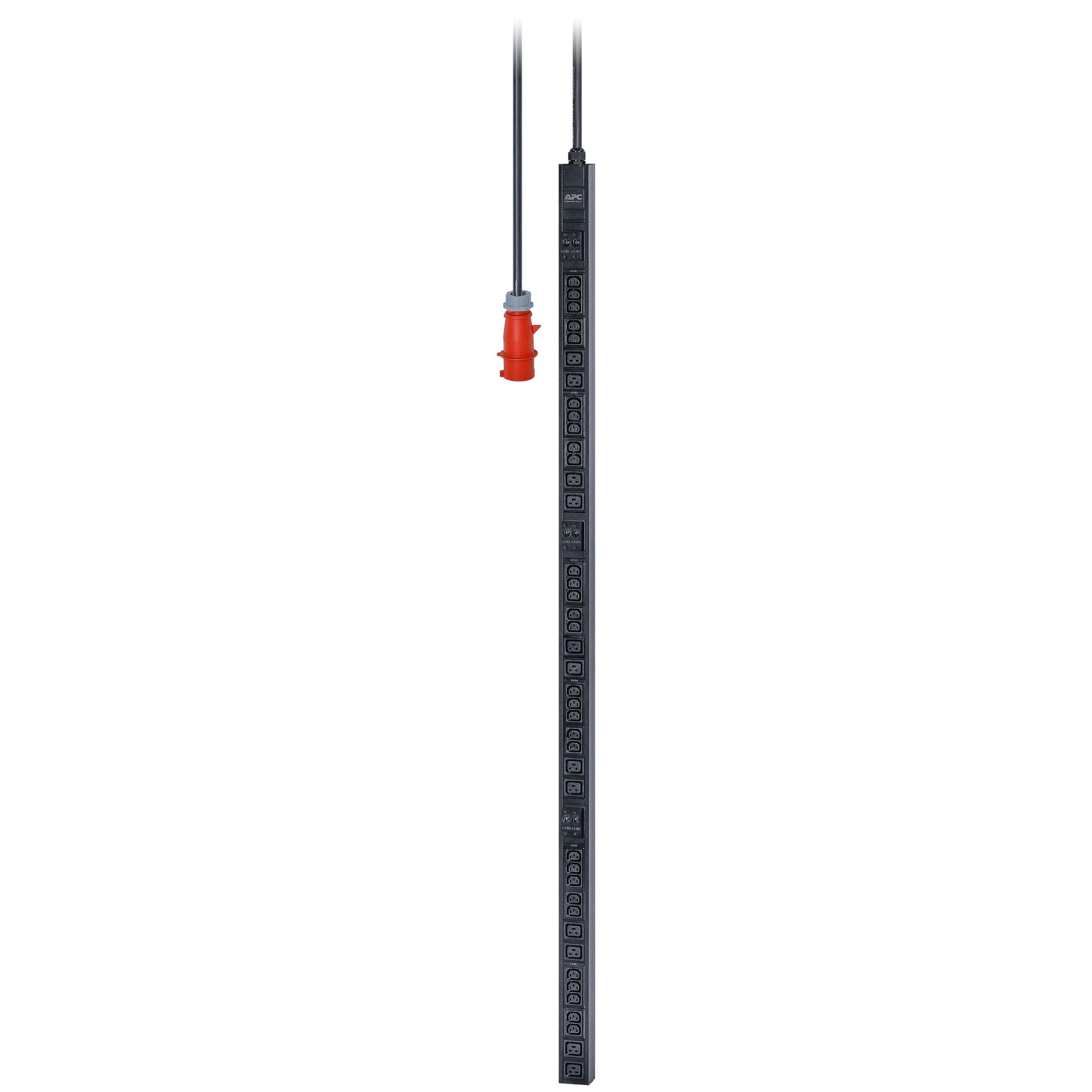

• Black APC EPDU1232B PDU with 30 C13 12 C19 outlets red cord
1 1

APC

APC EPDU1232B | Easy PDU Basic 0U 3-Phase Rack PDU, 22kW, 30 C13 12 C19

APC EPDU1232B | Easy PDU Basic 0U 3-Phase Rack PDU, 22kW, 30 C13 12 C19

Authorised APC Partner

EPDU1232B

Stock Status: Enquire

$1,310.81 inc. GST
$1,191.65 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The EPDU1232B is a basic zero U three-phase rack PDU rated at 22 kW, built for high-density server and network racks. It provides 30 IEC C13 and 12 IEC C19 outlets at 230V, fed from a 32A IEC 60309 3P+N+PE inlet on a 2 m cord, so one unit can power a full row of servers and switches.

Vertical 0U mounting keeps the PDU out of the usable rack space, and the toolless mounting kit supports quick installation in NetShelter enclosures. Resettable circuit breakers allow fast recovery from overload events without replacing fuses.

Features

- Resettable circuit breakers enable quick recovery from overload events
- Toolless rack mounting for NetShelter enclosures
- Zero U vertical mounting saves rack space
- Includes installation guide, toolless mounting kit and vertical mounting brackets
- RoHS compliant

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Load capacity: 22 kW / 22000 VA
- Outlets: 30 x IEC 60320 C13, 12 x IEC 60320 C19
- Input connection: IEC 60309 32A 3P+N+PE
- Nominal input voltage: 400V 3-phase
- Nominal output voltage: 230V
- Maximum input current: 32 A
- Input frequency: 50/60 Hz
- Power cords: 1, length 2 m
- Mounting: 0U vertical
- Dimensions (max): 1794 mm H x 62 mm W x 44 mm D
- Colour: Black
- Operating temperature: -5 to 45 C
- Operating relative humidity: 5 to 95 %
- Operating elevation: 0 to 3048 m

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input connection does the EPDU1232B use?
A: It has a single 2 m cord terminated for an IEC 60309 32A 3P+N+PE connection, fed from a 400V three-phase supply.

Q: How many outlets does it provide and what type are they?
A: It provides 30 IEC 60320 C13 outlets and 12 IEC 60320 C19 outlets at 230V nominal output.

Q: What is the maximum load this PDU can support?
A: It is rated for 22 kW (22000 VA) with a maximum input current of 32 A.

Q: Does this PDU take up rack space?
A: No. It is a 0U vertical unit that mounts alongside the equipment, and the toolless mounting kit is included for NetShelter enclosures.

Q: Does it offer metering or switching of outlets?
A: No. This is a Basic model without metering or outlet switching. It provides resettable circuit breakers for overload protection.

Q: What is included in the box?
A: The PDU ships with an installation guide, a toolless mounting kit and vertical mounting brackets.
