APC EPDU1216S | Easy Rack Switched 0U 3-Phase PDU, 11kW, 21 C13, 6 C19

APC EPDU1216S | Easy Rack Switched 0U 3-Phase PDU, 11kW, 21 C13, 6 C19

Authorised APC Partner

EPDU1216S

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

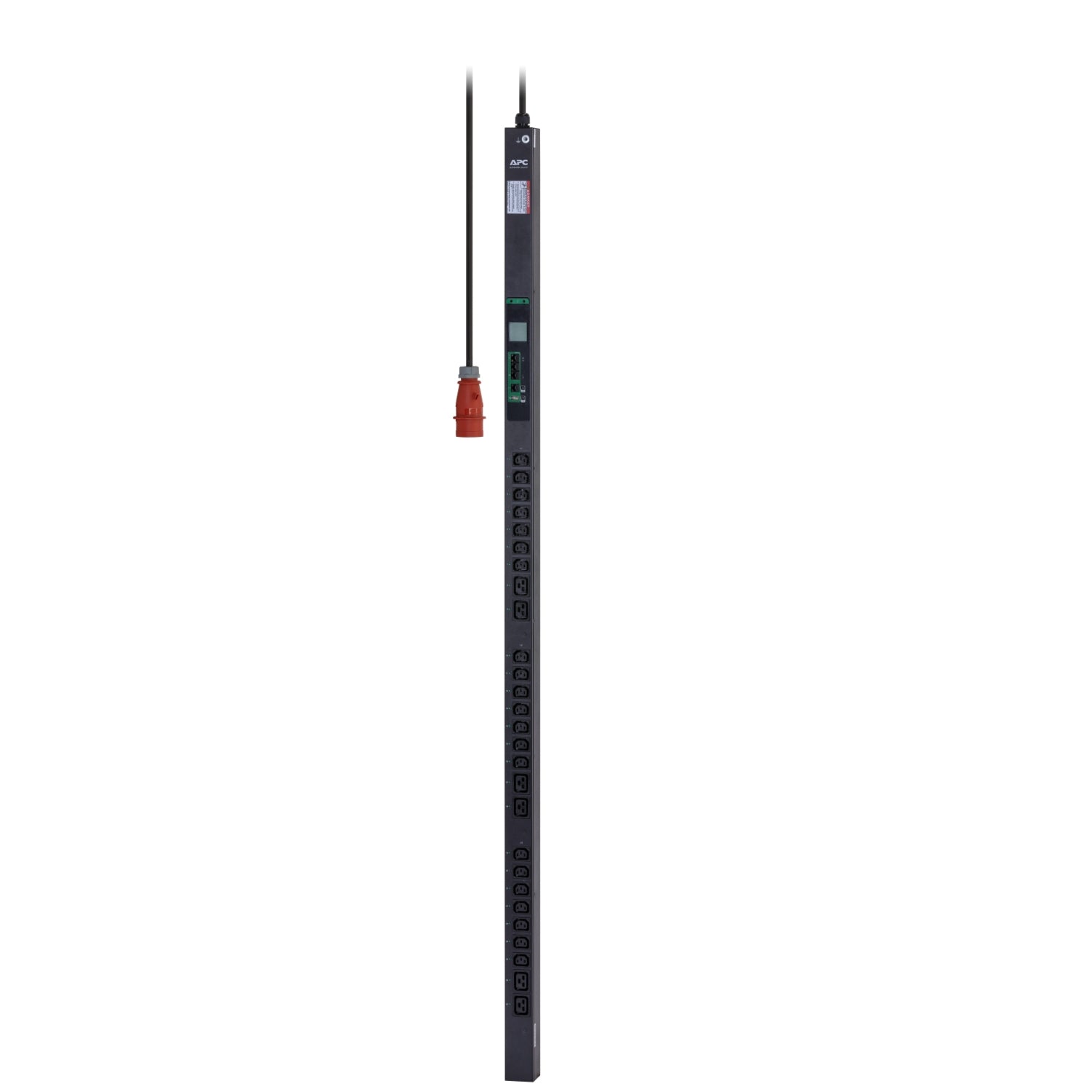

The APC Easy Rack EPDU1216S is a switched 0U three-phase rack PDU rated for 11kW at 230V 16A, with 21 IEC C13 and 6 IEC C19 outlets and an IEC60309 3P+N+PE inlet. Per-outlet on/off switching lets data centre and comms room teams power-cycle individual devices, while a local current display shows aggregate load at the rack.

The vertical 0U form factor keeps rack space free for IT equipment, and a single three-phase branch connection feeds many devices from one inlet. Configurable power-on and power-off sequencing helps limit inrush current at start-up, making it a practical power distribution choice for server, storage and network racks.

Features

- Per-outlet on/off switching with advanced power management
- Configurable power-on and power-off sequencing to limit start-up inrush
- Local current monitoring display of aggregate current draw
- Single input feeds multiple devices from one three-phase branch connection
- 0U vertical mounting preserves rack space
- Rack-mountable in horizontal, vertical or toolless-mount varieties

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: 0U (vertical, toolless rack mount)
- Phase: 3 phase
- Input voltage and current: 230V, 16A
- Rated power: 11kW
- Outlets: 21 x IEC C13 and 6 x IEC C19
- Input connection: IEC60309 3P+N+PE
- Control: switched, per-outlet on/off

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of inlet does the EPDU1216S use?
A: It has an IEC60309 3P+N+PE inlet and is designed for a 3-phase, 230V, 16A supply.

Q: How many outlets does it provide and of what type?
A: It provides 27 outlets in total: 21 x IEC C13 and 6 x IEC C19.

Q: Can individual outlets be switched on and off?
A: Yes. This is a switched PDU, so each outlet can be turned on or off individually, and power-on and power-off sequencing can be configured.

Q: What is the total power rating?
A: The PDU is rated for 11kW.

Q: Does it take up rack space?
A: No. It is a 0U unit and mounts vertically alongside the rack, leaving rack units free for equipment.

Q: How does it differ from a metered or basic PDU?
A: Beyond a local current display for aggregate load, this switched model adds per-outlet on/off control and sequencing, which basic and metered units do not offer.
