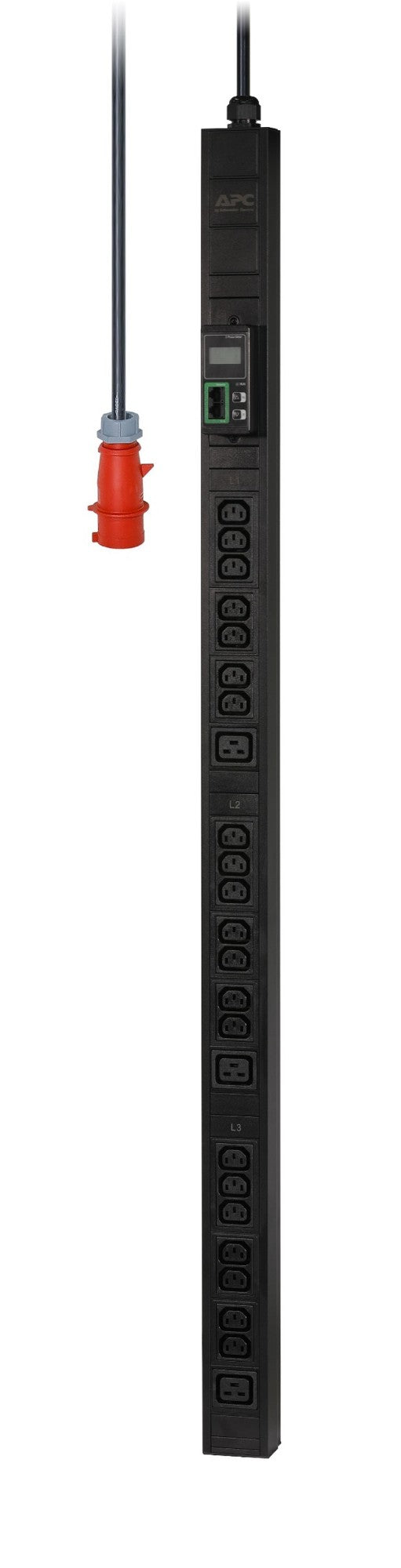

• APC EPDU1216M black vertical rack PDU with red plug, 21 C13 and 3 C19 outlets
1 1

APC

APC EPDU1216M | Easy Metered Rack PDU, 3-Phase, 11kW, 21 C13 & 3 C19, 0U

APC EPDU1216M | Easy Metered Rack PDU, 3-Phase, 11kW, 21 C13 & 3 C19, 0U

Authorised APC Partner

EPDU1216M

Stock Status: Enquire

$1,370.84 inc. GST
$1,246.22 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC EPDU1216M is a zero-U, three-phase Easy Metered Rack PDU rated at 11kW (11,040VA), built for dense server and network racks that need local current visibility. It delivers 230V output through 21 IEC C13 and 3 IEC C19 outlets, fed by a single 16A IEC 60309 3P+N+PE inlet from a 400V three-phase supply.

The vertical 0U aluminium chassis mounts toolless alongside the rack to keep U-space free, and an LCD current display with load indicator LED lets technicians check load at a glance. Network management via Web, SNMP and Command Line Interface supports remote monitoring of current, power and voltage, and the firmware is flash upgradeable.

Features

- Reliable and affordable rack power distribution
- Real-time remote management capabilities
- Zero-U toolless rack mounting saves rack space
- Flash upgradeable firmware
- Local current monitoring display with load indicator LED
- Network management via Web, SNMP and Command Line Interface

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- PDU type: Metered, three-phase
- Mounting: 0U vertical, toolless
- Outlets: 21 x IEC C13 and 3 x IEC C19 (24 total)
- Inlet: IEC 60309 3P+N+PE, 16A
- Load capacity: 11,040VA / 11kW
- Nominal input voltage: 400V
- Nominal output voltage: 230V
- Input frequency: 50/60Hz
- Power cords: 1
- Monitoring: current, power, voltage
- Display: LCD with load indicator LED
- Housing: aluminium, black
- Dimensions: 1506mm height, 62mm width, 44mm depth
- Weight: approximately 3.0kg

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of power supply does the APC EPDU1216M require?
A: It connects through a single IEC 60309 3P+N+PE inlet rated at 16A, fed from a 400V nominal three-phase supply, and provides 230V output to its outlets.

Q: How many outlets does it have and what types?
A: It provides 24 outlets in total: 21 x IEC C13 and 3 x IEC C19, suited to a mix of servers, switches and higher-draw equipment.

Q: Is this a metered or switched PDU?
A: It is a metered PDU. It reports current, power and voltage and has a local LCD current display, but it does not offer per-outlet switching.

Q: Can I monitor it remotely?
A: Yes. It supports network management through a Web interface, SNMP and a Command Line Interface for remote monitoring.

Q: How does it mount in the rack?
A: It is a 0U vertical unit with toolless mounting, so it sits beside the equipment and does not consume any rack units.

Q: What is the total load capacity?
A: The PDU is rated for 11,040VA, or 11kW, across its three-phase input.
