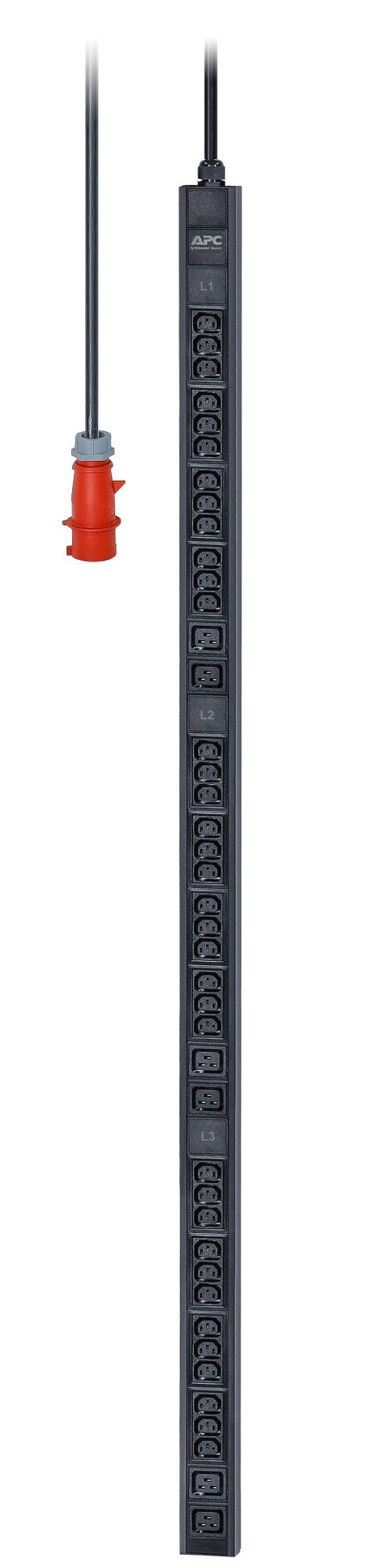

• APC EPDU1216B black vertical rack PDU with red plug and cable
1 1

APC

APC EPDU1216B | Easy PDU Basic 0U Rack PDU, 11kW, 36 C13, 6 C19, IEC309

APC EPDU1216B | Easy PDU Basic 0U Rack PDU, 11kW, 36 C13, 6 C19, IEC309

Authorised APC Partner

EPDU1216B

Stock Status: Enquire

$933.05 inc. GST
$848.23 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Easy PDU Basic EPDU1216B is a zero-U, non-metered rack PDU rated at 11 kW for three-phase 230V per-phase distribution. It connects through a 16A IEC 60309 3P+N+PE inlet and delivers 36 IEC 60320 C13 and 6 C19 outlets, making it a high-density power distribution option for server and network racks.

The vertical 0U form factor mounts alongside the equipment so no rack space is used, and the basic, non-metered design keeps it a cost-effective choice where remote monitoring is not required. The mix of C13 and C19 outlets suits a combination of standard servers, switches and higher-draw devices, and the 1.98 m input cable supports flexible placement in the rack.

Features

- Zero U vertical mounting saves valuable rack space
- High outlet density with 36 C13 and 6 C19 outlets
- Basic non-metered design for low-cost power distribution
- Three-phase 16A IEC 60309 inlet for 11 kW capacity
- Part of the Easy PDU family with a wide range of input and output options

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Load capacity: 11 kW / 11000 VA
- Input: 3-phase 400V, 16A, 50/60 Hz
- Input plug: IEC 60309 16A 3P+N+PE
- Outlets: 36 x IEC 60320 C13 and 6 x IEC 60320 C19
- Form factor: Zero U (0U) vertical
- Input cable length: 1.98 m
- Dimensions (H x W x D): 150.6 cm x 6.2 cm x 4.44 cm
- Net weight: 3.08 kg
- Operating temperature: -5 to 45 C
- Colour: Black
- Certifications: CE, TUV, EAC, RCM
- RoHS: EU RoHS compliant, mercury free

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of power inlet does the EPDU1216B use?
A: It uses a 16A IEC 60309 3P+N+PE plug on a 1.98 m input cable, so it requires a matching three-phase 400V IEC 60309 supply socket.

Q: How many outlets does it provide and of what type?
A: It provides 36 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets.

Q: Is this PDU metered or switched?
A: No. The Easy PDU Basic is a basic, non-metered unit with no remote monitoring or outlet switching.

Q: What is the maximum load capacity?
A: The PDU is rated at 11 kW / 11000 VA with a 16A input current limit.

Q: Does it take up rack space?
A: No. It is a zero-U vertical PDU that mounts alongside equipment in the rack, leaving all rack units free.

Q: What is the operating temperature range?
A: The operating ambient temperature range is -5 to 45 C with 5 to 95 percent relative humidity.
