APC EPDU1132S | Easy Rack PDU Switched 0U, 7.4kW, 32A, 20x C13, 4x C19

APC EPDU1132S | Easy Rack PDU Switched 0U, 7.4kW, 32A, 20x C13, 4x C19

Authorised APC Partner

EPDU1132S

Stock Status: Enquire

$1,545.93 inc. GST
$1,405.39 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

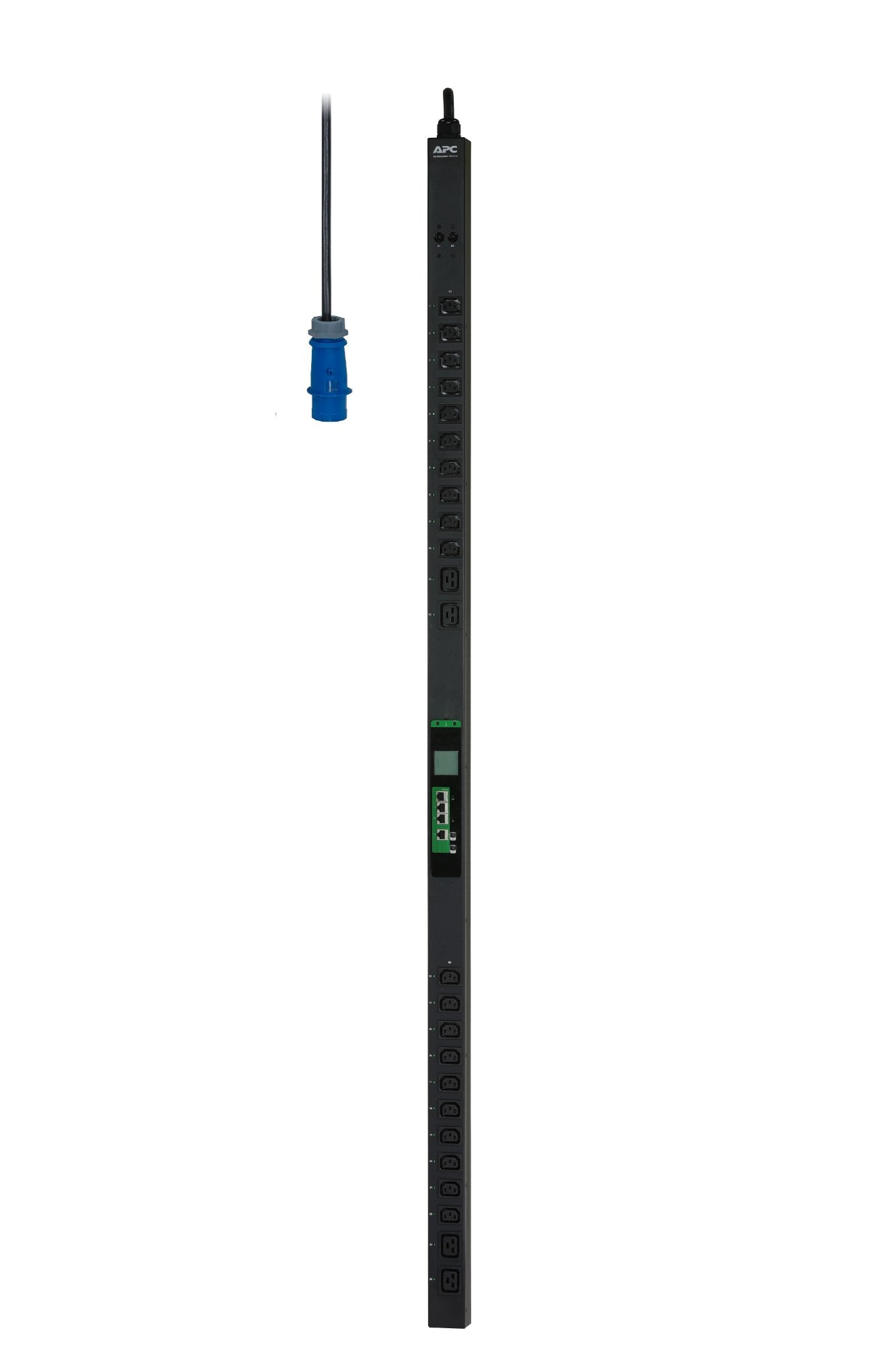

The APC Easy Rack PDU EPDU1132S is a switched 0U vertical rack PDU delivering up to 7.4 kW of single-phase 230 V power. It provides 20 x IEC 60320 C13 and 4 x IEC 60320 C19 outlets, fed from a 32 A IEC 60309 2P+E inlet on a 3.0 m input cord, making it suited to dense server racks that mix standard and high-power equipment.

The zero-U vertical form factor mounts along the side of the rack, leaving every rack unit free for servers, storage and network gear. Switched outlet control suits remote power management, and the mix of C13 and C19 outlets covers both standard IT loads and high-draw devices in a single PDU.

Features

- Switched outlets for remote power control
- 0U vertical mounting saves rack space
- 20 x C13 and 4 x C19 outlets support servers and high-power equipment
- Single 32 A IEC 60309 inlet for 230 V single-phase supply
- 7.4 kW load capacity for dense rack deployments

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- PDU type: Switched
- Form factor: 0U vertical rack mount
- Phase: 1 phase, 230 V, 32 A
- Load capacity: 7.4 kW / 7360 VA
- Outlets: 20 x IEC 60320 C13, 4 x IEC 60320 C19
- Input connection: IEC 60309 32 A 2P+E
- Input cord length: 3.0 m
- Frequency: 50/60 Hz
- Dimensions (H x W x D): 173.8 x 5.5 x 6.2 cm
- Weight: 7.9 kg
- Colour: Black
- Certifications: CE, EAC, TUV
- Operating temperature: -5 to 45 C

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What inlet does the EPDU1132S use?
A: It uses a 32 A IEC 60309 2P+E inlet on a 3.0 m input cord, so it needs a matching 230 V single-phase 32 A supply.

Q: How many outlets does it provide and of what type?
A: It provides 24 outlets in total: 20 x IEC 60320 C13 and 4 x IEC 60320 C19.

Q: What is the maximum load capacity?
A: The PDU supports up to 7.4 kW (7360 VA) at 230 V and 32 A.

Q: Is this a switched or metered PDU?
A: It is a switched PDU, which allows individual outlet power control.

Q: Does it take up rack units?
A: No. It is a 0U vertical unit that mounts at the side of the rack, leaving all rack units free for equipment.

Q: Is it suitable for three-phase supplies?
A: No. This model is a single-phase unit with a 230 V, 32 A inlet.
