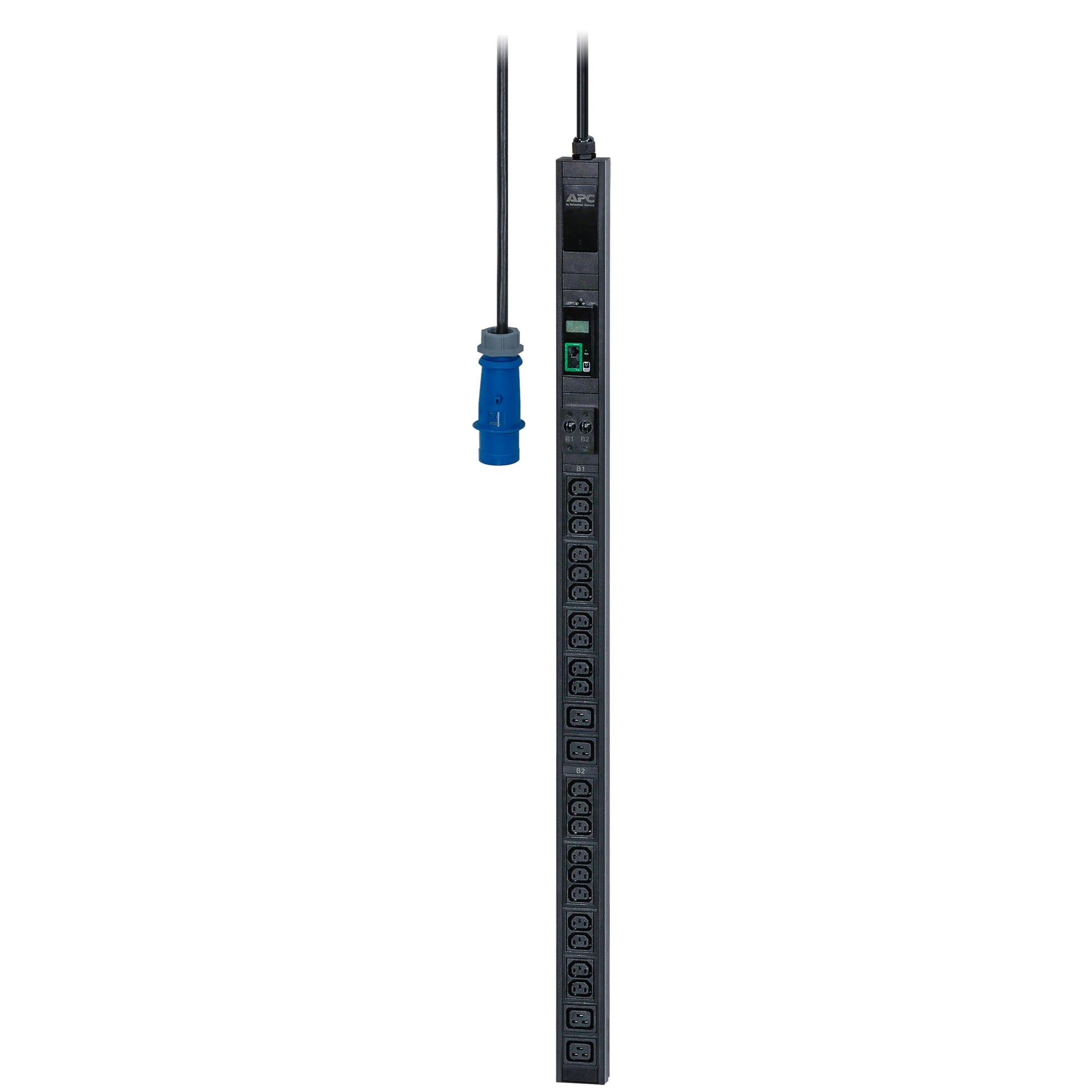

• APC EPDU1132M black surge protector with 20 C13 and 4 C19 outlets
1 1

APC

APC EPDU1132M | Easy Metered Rack PDU, 0U, 32A, 230V, 20 C13 + 4 C19

APC EPDU1132M | Easy Metered Rack PDU, 0U, 32A, 230V, 20 C13 + 4 C19

Authorised APC Partner

EPDU1132M

Stock Status: Enquire

$963.08 inc. GST
$875.53 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

This 0U single-phase metered rack PDU from the APC Easy PDU range delivers 7.4kW (7360VA) to rack equipment from a 32A, 230V IEC 60309 2P+E inlet. It provides 24 outlets in total, 20 x C13 and 4 x C19, so a single vertical unit can power a dense mix of servers, switches and storage without using any rack space. A built-in LCD shows the connected load locally.

The black aluminium housing mounts vertically alongside the equipment and includes a 3 m input cord. The PDU supports firmware upgrades and carries CE and TUV certification, making it a straightforward choice for standard 230V rack deployments where local current monitoring is needed.

Features

- Metered monitoring of connected load via the local LCD
- Zero U vertical design saves rack space
- 24 outlets (20 x C13, 4 x C19) for mixed IT equipment
- Hydraulic-magnetic circuit breakers on 32A input units
- Firmware upgradeable
- Easy to install and use

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- PDU type: Metered, single-phase
- Mounting: 0U vertical
- Outlets: 24 total, 20 x IEC C13 and 4 x IEC C19
- Input: IEC 60309 2P+E 32A plug, 3 m cord
- Nominal input voltage: 200/208/230 V, 50-60 Hz
- Maximum input current: 32 A
- Nominal output voltage: 230 V
- Load capacity: 7360 VA / 7360 W
- Display: LCD with LED indicators
- Housing: black aluminium
- Firmware upgradeable
- Certification: CE, TUV
- Operating temperature: -5 to 45 C
- Dimensions (H x W x D): 1175 x 62 x 44 mm
- Weight: 3.72 kg

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of inlet does the EPDU1132M use?
A: It has an IEC 60309 2P+E 32A input plug on a 3 m cord, so it needs a matching 32A IEC 60309 supply socket.

Q: How many outlets does it provide and of what type?
A: It provides 24 outlets in total: 20 x IEC C13 and 4 x IEC C19.

Q: What is the maximum load this PDU can support?
A: It is rated for 7360 VA / 7360 W at 230V with a maximum input current of 32A.

Q: Is this PDU metered or switched?
A: It is a metered PDU with an LCD for local current monitoring. It does not have per-outlet switching.

Q: Does it use rack unit space?
A: No. It is a 0U vertical unit designed to mount alongside equipment in the rack, saving usable rack space.

Q: Can the firmware be updated?
A: Yes, the unit is firmware upgradeable.
