APC EPDU1116S | Easy Rack PDU, Switched, 0U, 3.7kW, 20x C13, 4x C19, 16A

APC EPDU1116S | Easy Rack PDU, Switched, 0U, 3.7kW, 20x C13, 4x C19, 16A

Authorised APC Partner

EPDU1116S

Stock Status: Enquire

$1,468.41 inc. GST
$1,334.92 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

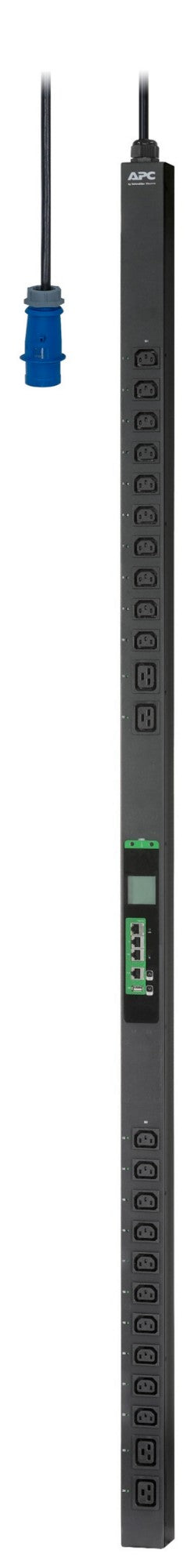

The EPDU1116S is a vertical zero-U switched rack PDU from the APC Easy Rack PDU range, delivering 3.7kW (3680VA) at 230V single phase through a 16A IEC 60309 2P+E inlet. It provides 24 outlets, 20 x C13 and 4 x C19, so a single unit can power a mix of servers, switches and storage in one rack. Per-outlet switching allows remote on, off and reboot over the network.

Network management is available via Web, SNMP and CLI, and outlet sequencing helps avoid in-rush current at start-up. Up to four PDUs can be daisy-chained on a single IP address through network port sharing. The 0U vertical design saves rack space, and vertical mount brackets are included with the 3 m input cord.

Features

- Remote on/off and reboot switching of individual outlets
- Network management via Web, SNMP and CLI
- Outlet sequencing to avoid start-up in-rush current
- Network port sharing: up to 4 PDUs daisy-chained on one IP address
- Zero-U vertical mounting saves rack space
- Vertical mount brackets included

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 24 outlets: 20 x C13 and 4 x C19
- Load capacity: 3.7kW / 3680VA
- Nominal input voltage: 230V, single phase
- Input current: 16A, 50/60Hz
- Input connector: IEC 60309 16A 2P+E
- Input cord length: 3 m
- Output voltage: 200-240 VAC
- Type: Switched, 0U vertical mount
- Dimensions (H x W x D): 1738 x 55 x 62 mm
- Net weight: 7.3 kg
- Colour: Black
- Operating temperature: -5 to 45 C
- Operating relative humidity: 5 to 95%
- Protection: Overload

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of inlet does the EPDU1116S use?
A: It uses an IEC 60309 16A 2P+E inlet on a 3 m input cord, designed for a 230V single phase supply.

Q: How many outlets does it provide and what types?
A: It provides 24 outlets in total: 20 x C13 and 4 x C19.

Q: Can individual outlets be switched remotely?
A: Yes. This is a switched model, so individual outlets can be turned on, off or rebooted remotely over the network.

Q: How is the PDU managed?
A: It can be managed over the network via Web, SNMP and CLI.

Q: Can multiple PDUs share one IP address?
A: Yes. Network port sharing allows up to four PDUs to be daisy-chained on a single IP address.

Q: Does it use rack units?
A: No. It is a 0U vertical-mount PDU, and vertical mount brackets are included.
