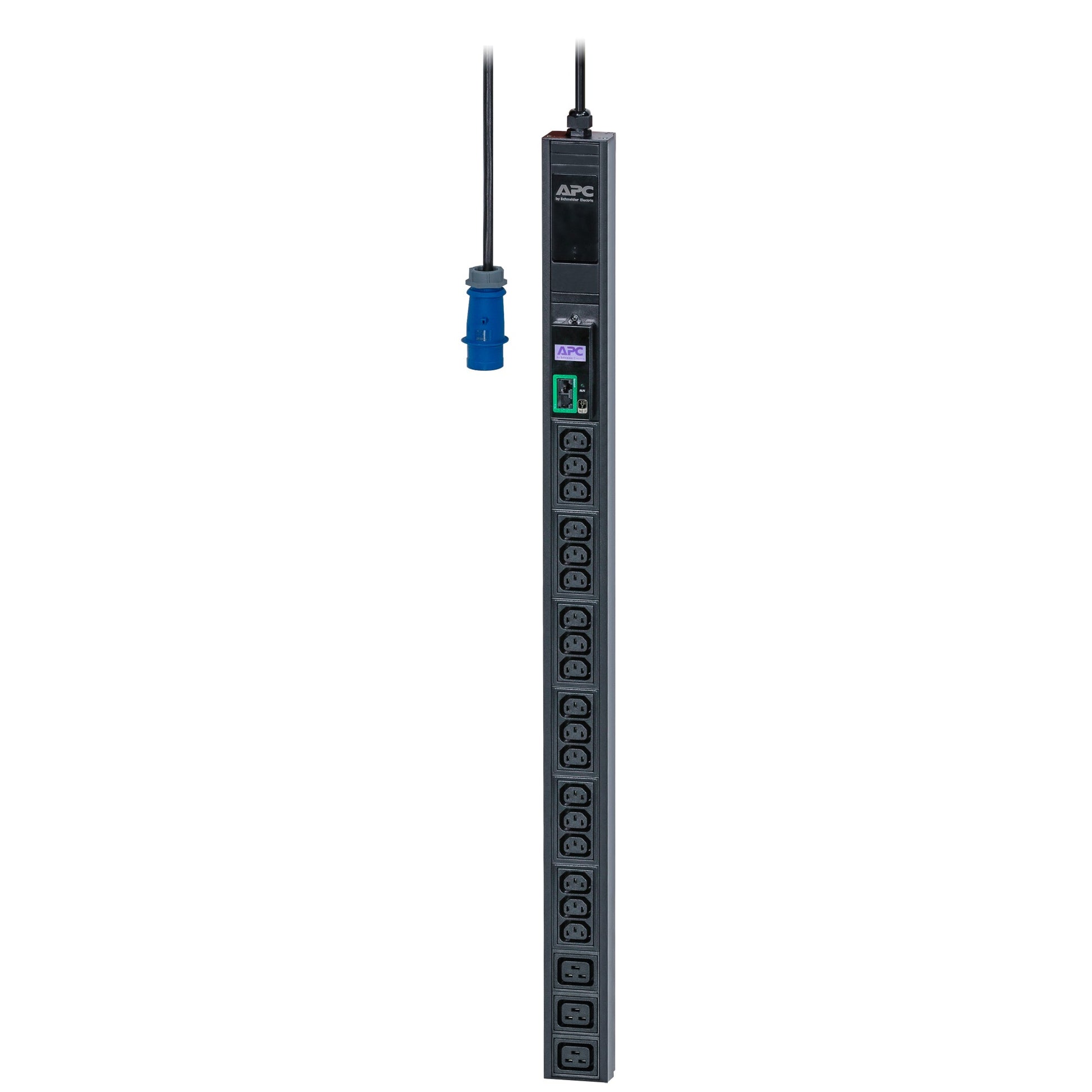

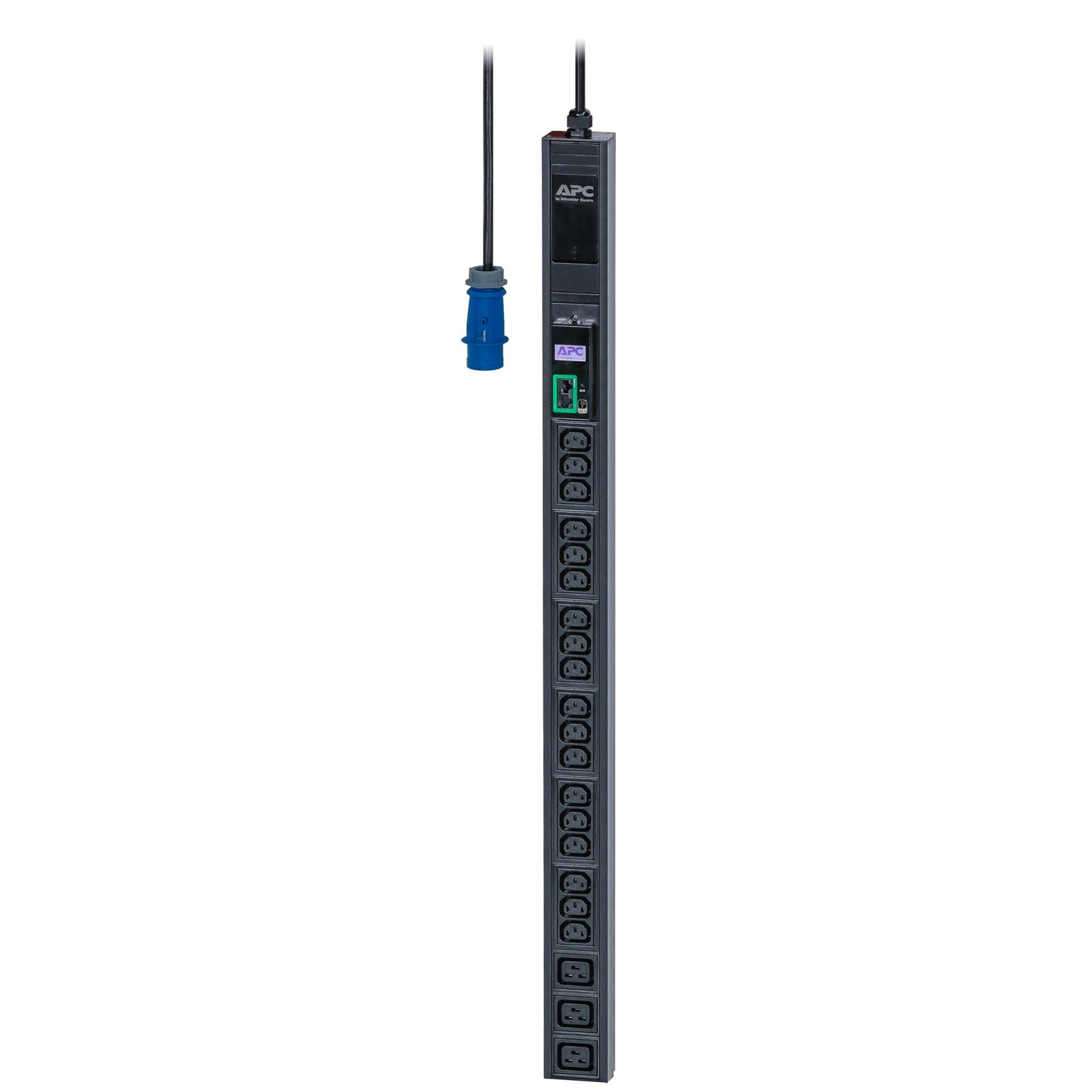

APC EPDU1116M | Easy Rack PDU Metered 0U, 3.7kW, 16A, 18x C13, 3x C19

APC EPDU1116M | Easy Rack PDU Metered 0U, 3.7kW, 16A, 18x C13, 3x C19

Authorised APC Partner

EPDU1116M

Stock Status: Enquire

$928.05 inc. GST
$843.68 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Easy Rack PDU Metered 0U is a vertical, zero-U rack PDU that distributes 230V single phase power from a 16A IEC 60309 2P+E inlet to 18 IEC C13 outlets and 3 IEC C19 outlets. With a 3.7kW (3680VA) load capacity, it suits server, storage and network racks that need a high outlet count from a single branch circuit.

Input current metering gives visibility of the load on the PDU, helping with capacity planning and preventing overloaded circuits. The slim 0U vertical design mounts alongside equipment without using any rack unit space, and the 3 m input cord provides flexibility when connecting to the power feed. This is a metered, non-switched model.

Features

- Zero-U vertical mounting saves valuable rack space
- 18 C13 and 3 C19 outlets support a mix of servers, storage and network equipment
- Metered input current monitoring for load visibility and capacity planning
- Single 16A IEC 60309 inlet feeds all equipment from one branch circuit
- 3 m input cord for flexible connection to the power feed
- Simple installation with standard connections

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: 0U vertical rack PDU
- Phase: 1 phase, 230V, 16A
- Load capacity: 3.7kW (3680VA)
- Outlets: 18 x IEC 60320 C13 and 3 x IEC 60320 C19
- Input connection: IEC 60309 16A 2P+E
- Input cord length: 3 m, 1 power cord
- Nominal input voltage: 200V, 208V, 230V
- Input frequency: 50/60Hz
- Metering: Yes (input current), non-switched
- Dimensions: 902 mm height, 62 mm width, 44 mm depth
- Net weight: 2.5 kg
- Colour: Black
- Operating temperature: -5 to 45 C
- Operating relative humidity: 5 to 95%

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of inlet does the EPDU1116M use?
A: It uses an IEC 60309 16A 2P+E inlet on a 3 m input cord. Make sure the upstream power feed has a matching 16A IEC 60309 socket.

Q: How many outlets does it provide and what types are they?
A: It provides 21 outlets in total: 18 x IEC 60320 C13 and 3 x IEC 60320 C19, supporting a mix of standard and high-draw equipment.

Q: Is this a switched or metered PDU?
A: It is a metered, non-switched PDU. It measures input current but does not offer remote on and off switching of individual outlets.

Q: What is the maximum load this PDU can supply?
A: The load capacity is 3.7kW (3680VA) at 230V, with a maximum total current draw of 16A.

Q: Does it use rack units?
A: No. It is a 0U vertical PDU, designed to mount alongside equipment in the rack without consuming rack unit space.

Q: Can it be used with 200V or 208V supplies?
A: Yes. The nominal input voltage range covers 200V, 208V and 230V at 50/60Hz.
