• APC EPDU1116B black surge protector with 20 C13 and 4 C19 outlets
1 1

APC

APC EPDU1116B | Easy Rack PDU, Basic, 0U, 16A 230V, 20x C13, 4x C19

APC EPDU1116B | Easy Rack PDU, Basic, 0U, 16A 230V, 20x C13, 4x C19

Authorised APC Partner

EPDU1116B

Stock Status: Enquire

$462.80 inc. GST
$420.73 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

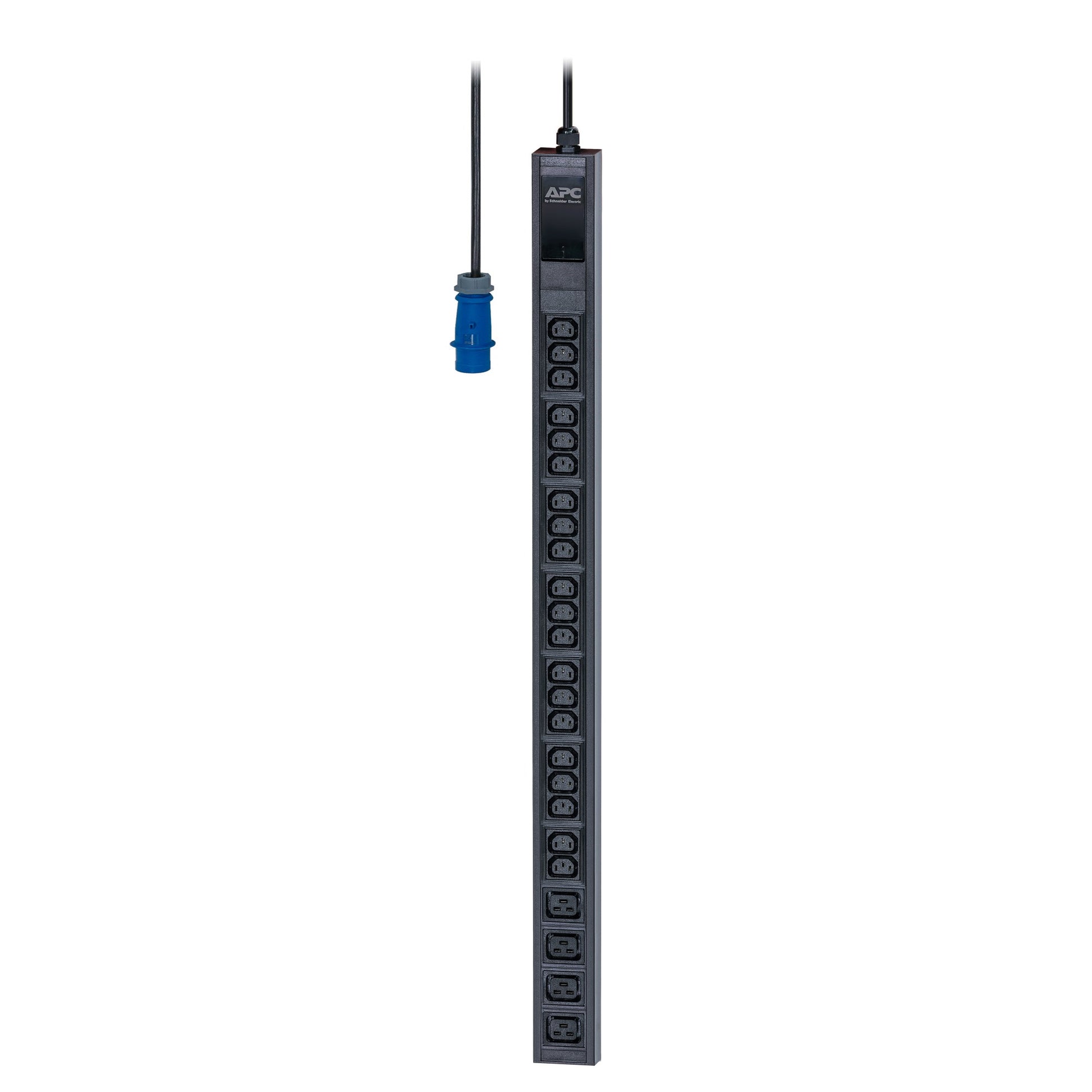

The APC Easy Rack PDU EPDU1116B is a basic, non-monitored 0U vertical rack PDU delivering 3.7kW from a single 16A, 230V IEC 60309 2P+E inlet. It provides 20 x C13 and 4 x C19 outlets, making it well suited to racks populated with a mix of servers, switches and storage that use standard IEC 60320 power leads.

The ultra-lightweight aluminium housing cuts weight by up to 50 percent, and the toolless mounting kit and vertical brackets allow quick installation into NetShelter enclosures. A single branch whip feeds many devices, reducing installation time and cost, while the Zero U form factor keeps valuable rack space free for equipment.

Features

- Basic, non-monitored rack power distribution that is easy to install and use
- Ultra-lightweight aluminium housing, up to 50% weight reduction
- Zero U vertical mounting saves rack space
- Toolless mounting into NetShelter enclosures
- Single branch whip feeds multiple devices, saving installation time and cost
- 20 x C13 and 4 x C19 outlets for a mix of IT equipment

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- 0U vertical rack mount
- 1 phase, 230V, 16A input
- 3.7kW (3680VA) load capacity
- 20 x IEC 60320 C13 outlets
- 4 x IEC 60320 C19 outlets
- Input connection: IEC 60309 16A 2P+E
- 3 m input cord
- Input frequency: 50/60 Hz
- Dimensions: 902 mm high x 62 mm wide x 44 mm deep
- Net weight: 2.2 kg
- Colour: Black
- Operating temperature: -5 to 45 C
- Package includes installation guide, toolless mounting kit and vertical mounting brackets

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What inlet does the EPDU1116B use?
A: It has a single fixed 3 m input cord terminated with an IEC 60309 16A 2P+E connector, so it needs a matching 16A industrial socket or branch circuit.

Q: How many devices can it power?
A: It provides 20 x IEC 60320 C13 outlets and 4 x IEC 60320 C19 outlets, for a total of 24 outlets within a 16A, 3680VA limit.

Q: Does this PDU offer remote monitoring or switching?
A: No. This is a basic, non-monitored PDU. It distributes power only and has no network interface or outlet switching.

Q: Will it fit in a standard rack?
A: Yes. It is a 0U vertical unit that mounts in the rear of the rack with the supplied toolless mounting kit and vertical brackets, and is designed for NetShelter enclosures.

Q: What is the maximum load?
A: The load capacity is 3680VA (3.7kW) at 230V, with a maximum input current of 16A.
