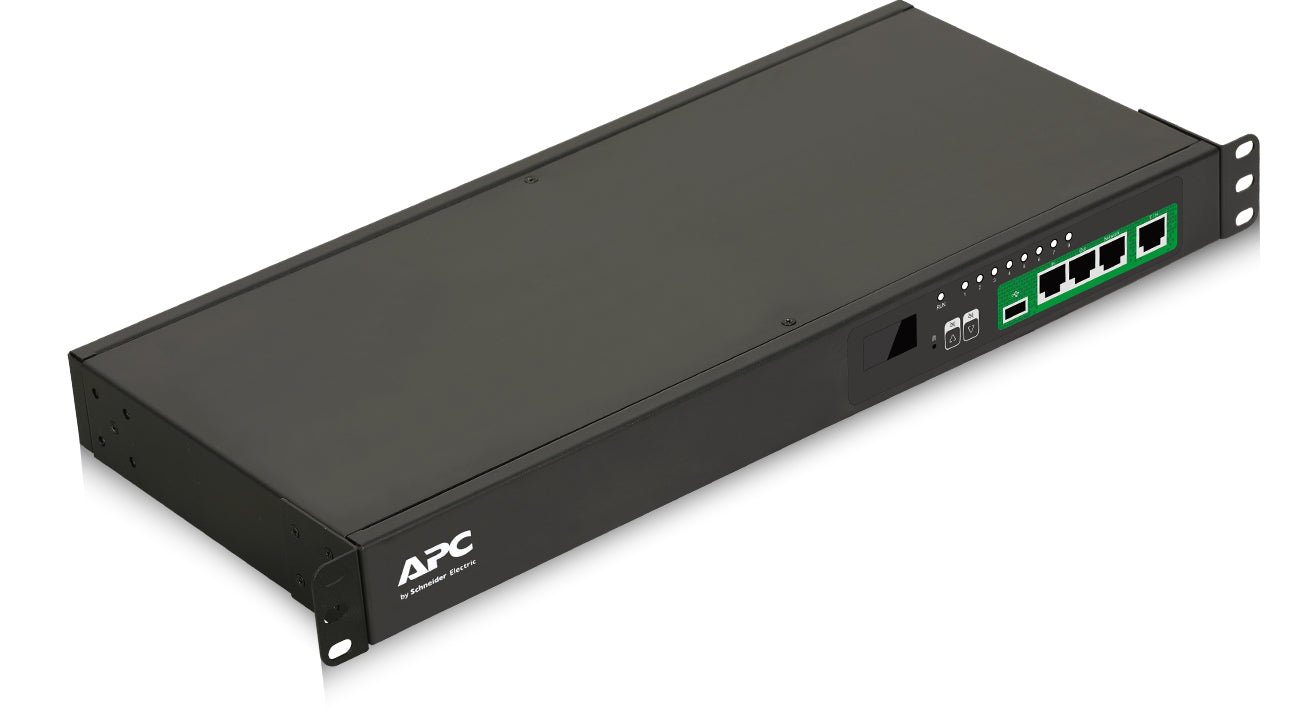

• APC EPDU1016S 1U rack PDU with black switch, green ports, and LED lights
1 1

APC

APC EPDU1016S | Easy Rack Switched PDU, 1U, 16A 230V, 8x C13, C20 Inlet

APC EPDU1016S | Easy Rack Switched PDU, 1U, 16A 230V, 8x C13, C20 Inlet

Authorised APC Partner

EPDU1016S

Stock Status: Enquire

$1,092.96 inc. GST
$993.60 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Easy Rack EPDU1016S is a 1U switched rack PDU that distributes 3.7kW (3680VA) of single phase power through eight IEC 60320 C13 outlets from a single IEC 60320 C20 inlet rated at 16A and 230V. Per-outlet switching lets administrators turn off unused outlets or power-cycle locked-up equipment remotely, which suits server rooms, comms cabinets and edge sites where on-site access is limited.

Remote management is available over Web, SNMP and Command Line Interface, with load monitoring and outlet power sequencing for controlled start-up. A single input feeds multiple rack-mount devices from one branch whip, and the unit ships with a 2.5 m power cord and horizontal mounting brackets for standard 1U rack installation.

Features

- Remote individual outlet control to turn off unused outlets or power-cycle locked-up equipment
- Remote management through Web, SNMP and Command Line Interface
- Outlet power sequencing for controlled start-up
- Load monitoring
- Single input power source: one branch whip supplies multiple rack-mount devices
- Horizontal mounting brackets included for 1U installation

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Rack height: 1U
- Output connections: 8 x IEC 60320 C13
- Input connection: IEC 60320 C20
- Switched (per-outlet on/off control), single phase
- Load capacity: 3680 VA / 3.7kW
- Maximum input current: 16A
- Nominal input voltage: 200V, 208V, 230V
- Nominal output voltage: 208V, 230V
- Input frequency: 50/60 Hz
- Cord length: 2.5 m
- Dimensions (max): 44 mm H x 482 mm W x 200 mm D
- Net weight: 2.8 kg
- Colour: Black
- Operating temperature: -5 to 45 C
- Operating relative humidity: 5 to 95 %
- Approvals: CE, EAC, TUV
- RoHS compliant
- Included: cable, horizontal mounting brackets, installation guide

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: How many outlets does the APC EPDU1016S have and what type are they?
A: It has eight IEC 60320 C13 outlets, suitable for standard servers, switches and other rack equipment using C13 power cords.

Q: What input connection and supply does it require?
A: It uses an IEC 60320 C20 inlet with a 2.5 m cord and accepts a single phase supply at 200V, 208V or 230V, 50/60 Hz, up to 16A.

Q: Can I control each outlet remotely?
A: Yes. This is a switched PDU, so individual outlets can be turned on, off or power-cycled remotely, and outlet power sequencing is supported.

Q: How is the PDU managed?
A: It can be managed remotely through Web, SNMP and Command Line Interface, and it provides load monitoring.

Q: What is the total load capacity?
A: The unit supports a maximum total current draw of 16A, equal to 3680 VA or 3.7kW at 230V.

Q: How is it mounted in a rack?
A: It is a 1U horizontal unit and ships with horizontal mounting brackets for installation in a standard 19 inch rack.
