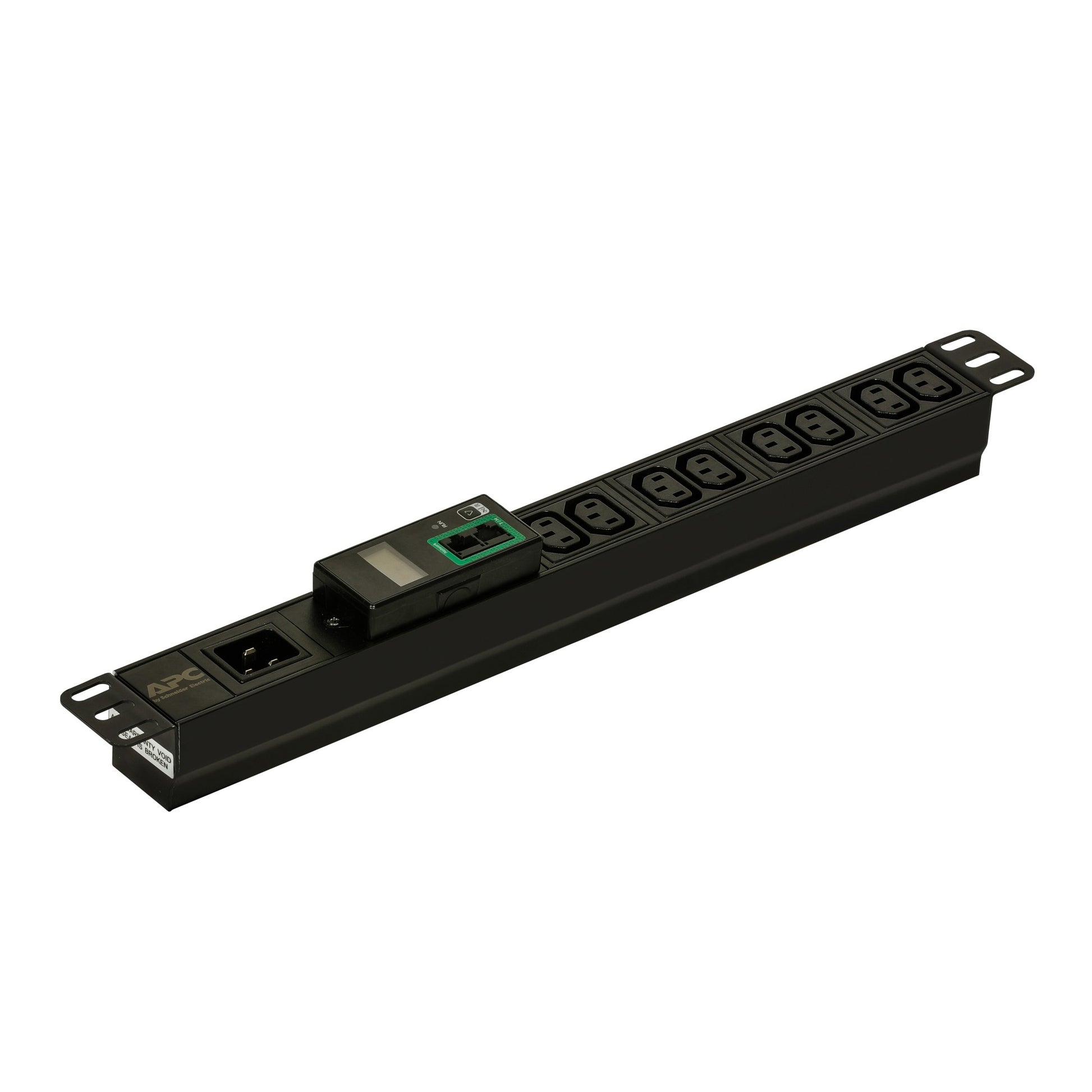

• APC EPDU1016M 1U metered rack PDU with 8 C13 outlets and digital display
1 1

APC

APC EPDU1016M | Easy PDU Metered 1U Rack PDU, 16A, 230V, 8x C13

APC EPDU1016M | Easy PDU Metered 1U Rack PDU, 16A, 230V, 8x C13

Authorised APC Partner

EPDU1016M

Stock Status: Enquire

$735.45 inc. GST
$668.59 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Easy PDU EPDU1016M is a 1U metered rack PDU with eight IEC 60320 C13 outlets, built for single-phase 230V, 16A rack deployments. It delivers up to 3.7kW (3680 VA) through a C20 inlet with a 2.5 m cord, and a local LCD display with a load indicator LED shows current draw at the rack so you can see headroom before adding equipment.

User-defined alarm thresholds flag warning and overload conditions before a circuit trips. It mounts horizontally in a standard 19-inch rack, and the included mounting brackets, installation guide and user manual cover installation.

Features

- Local LCD current display with load indicator LED
- User-defined alarm thresholds for overload and warning conditions
- Eight C13 outlets from a single C20 input
- 1U horizontal rack mount with brackets included
- Compact 44 mm deep housing
- Installation guide and user manual included

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Product code: EPDU1016M
- Rack height: 1U, horizontal mounting
- Type: Single-phase, metered
- Output connections: 8 x IEC 60320 C13
- Input connection: IEC 60320 C20, 2.5 m cord
- Nominal input voltage: 200/208/230 V
- Nominal output voltage: 208/230 V
- Maximum input current: 16 A
- Load capacity: 3680 VA (3.7 kW)
- Input frequency: 50/60 Hz
- Dimensions (H x W x D): 44 x 482 x 44 mm
- Net weight: 0.7 kg
- Colour: Black
- Operating temperature: -5 to 45 C
- Operating relative humidity: 5 to 95 %
- Certifications: CE, TUV

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: How many outlets does the APC EPDU1016M have and what type are they?
A: It has eight IEC 60320 C13 outlets, suitable for servers, switches and other equipment using standard C13 power cords.

Q: What input connection and cord does it use?
A: It has an IEC 60320 C20 inlet with a 2.5 m cord, and is rated for 16 A at 200/208/230 V single phase.

Q: What does metered mean on this PDU?
A: The unit measures the current drawn by connected equipment and shows it on a local LCD display. It does not offer per-outlet switching or per-outlet metering.

Q: What is the total load capacity?
A: The load capacity is 3680 VA (3.7 kW) at 230 V and 16 A, so the combined draw of connected equipment should stay within that figure.

Q: How is it mounted in a rack?
A: It is a 1U unit mounted horizontally in a standard 19-inch rack using the supplied mounting brackets.

Q: Can I set alarms for overload conditions?
A: Yes. You can define alarm thresholds that flag warning and overload conditions, which helps you avoid tripping a circuit.
