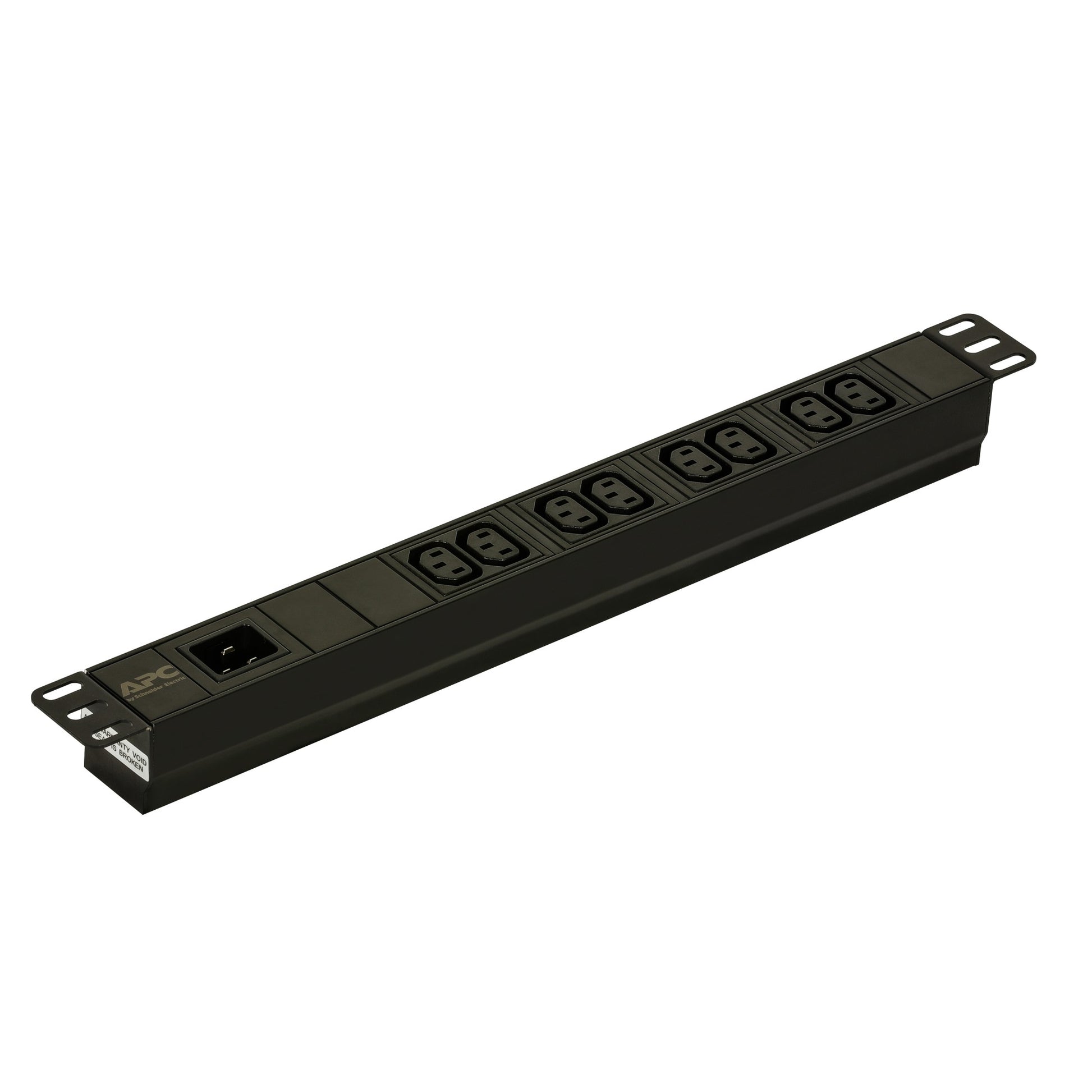

• APC EPDU1016B black metal rack PDU rear with 8 C13 outlets and C20 inlet
1 1

APC

APC EPDU1016B | Easy PDU Basic 1U Rack PDU, 16A 230V, 8x C13, C20 Inlet

APC EPDU1016B | Easy PDU Basic 1U Rack PDU, 16A 230V, 8x C13, C20 Inlet

Authorised APC Partner

EPDU1016B

Stock Status: Enquire

$152.61 inc. GST
$138.74 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Easy PDU Basic 1U horizontal rack PDU distributes power from a single 16A 230V input through an IEC 60320 C20 inlet to eight IEC 60320 C13 outlets. With a load capacity of 3680 VA (3.7 kW), it suits server and network racks that need simple, dependable single-phase power distribution in a 1U footprint.

This is a basic, non-metered and non-switched PDU with an aluminium housing and a low-profile depth that makes equipment installation easier. It supports 200-240V input at 50/60 Hz, includes a 2.5 m input cord, and ships with rack mounting brackets and an installation guide.

Features

- Basic non-metered, non-switched rack power distribution
- Single input power source feeding up to eight rack-mount devices
- Wide range of input and output connections
- Rack mounting brackets included
- Durable aluminium housing
- Low-profile depth for easier equipment installation
- Package includes cable, installation guide, rack mounting brackets and user manual

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Rack height: 1U, horizontal mounting
- Output connections: 8 x IEC 60320 C13
- Input connection: IEC 60320 C20
- Input voltage: 200V, 208V, 230V, single phase, 50/60 Hz
- Maximum input current: 16 A
- Load capacity: 3680 VA / 3680 W
- Input cord length: 2.5 m
- Housing: aluminium, black
- Dimensions (H x W x D): 44 x 482 x 44 mm
- Net weight: 0.58 kg
- Operating temperature: -5 to 45 C
- Operating humidity: 5 to 95%
- Approvals: CE, TUV, RoHS compliant

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of inlet and outlets does the EPDU1016B use?
A: It has one IEC 60320 C20 inlet and eight IEC 60320 C13 outlets, so it connects to a C19 or C20-compatible supply feed and powers devices using standard C13 cords.

Q: What is the maximum load this PDU supports?
A: It is rated for a maximum input current of 16 A, with a load capacity of 3680 VA and 3680 W at 230V.

Q: Does it provide remote monitoring or outlet switching?
A: No. The Easy PDU Basic is a non-metered, non-switched unit intended for straightforward power distribution.

Q: How is it mounted in the rack?
A: It is a 1U horizontal unit and ships with rack mounting brackets for installation in a standard 19-inch rack.

Q: What input voltages does it support?
A: It supports 200V, 208V and 230V nominal input at 50/60 Hz, single phase.

Q: What is included in the box?
A: The package includes the input cord, installation guide, rack mounting brackets and user manual.
